Inch Rod Ends CF...T

Ball: AISI 52100 bearing Steel, heat treated, HRC56 min;
Precision ground polished hard chromium plated
Body: Carbon steel,clear Zinc plated.

Race: PTFE composite or PTFE fabric

Sliding contact surfaces: Steel/PTFE


Facebook Twitter Pinterest LinkedIn 分享

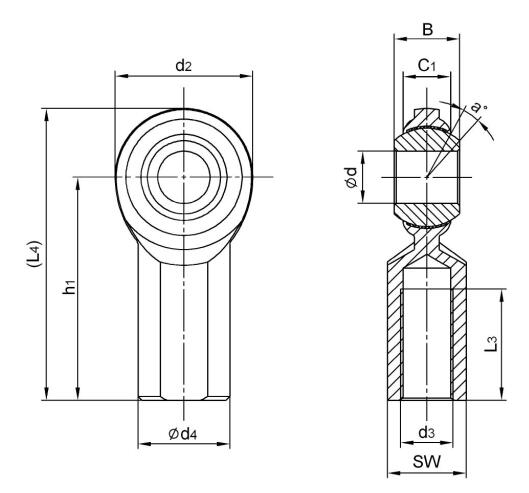

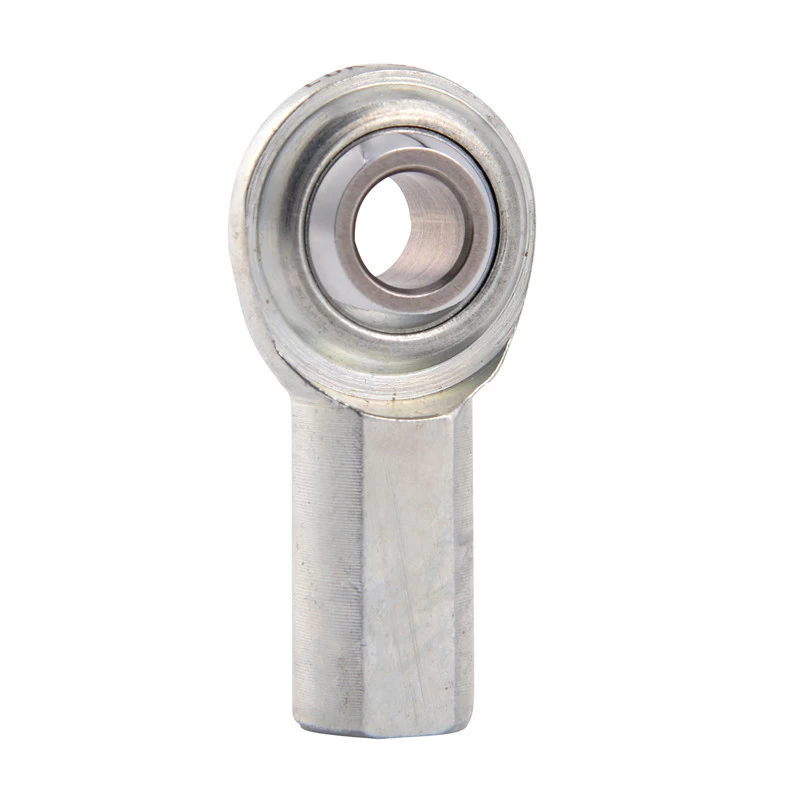

Inch Rod End AMERICAN SIZE CF8T

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
ratings
(KN)
weight
≈ kg
d+0.038
  -0.012
B C1 d2
d3
UNF-2B
h1 L3 (L4) d4 sw
CF3T 4.826 7.92 5.94 15.88 10-32 26.97 11.11 34.91 10.31 7.92 11.11 13 5.8 0.018
0.1900 0.312 0.234 0.625 10-32 1.062 0.437 1.375 0.406 0.312 0.437 13 5.8 0.018
CF4T 6.35 9.53 6.35 19.05 1/4-28 33.32 14.28 42.85 11.89 9.52 12.7 18 8.2 0.022
0.2500 0.375 0.250 0.750 1/4-28 1.312 0.562 1.687 0.468 0.375 0.500 18 8.2 0.022
CF5T 7.938 11.10 7.92 22.23 5/16-24 34.92 15.88 46.03 12.7 11.1 15.88 14 10.2 0.036
0.3125 0.437 0.312 0.875 5/16-24 1.375 0.625 1.812 0.500 0.437 0.625 14 10.2 0.036
CF6T 9.525 12.7 9.11 25.4 3/8-24 41.28 19.05 53.98 17.45 14.27 18.26 14 14 0.059
0.3750 0.500 0.359 1.000 3/8-24 1.625 0.750 2.125 0.687 0.562 0.719 14 14 0.059
CF7T 11.112 14.27 10.31 28.58 7/16-20 46.02 22.22 60.3 19.05 15.88 20.62 13 17.6 0.081
0.4375 0.562 0.406 1.125 7/16-20 1.812 0.875 2.375 0.750 0.625 0.812 13 17.6 0.081
CF8T 12.7 15.88 11.5 33.32 1/2-20 53.98 25.4 70.64 22.22 19.05 23.8 12 23.7 0.131
0.500 0.625 0.453 1.312 1/2-20 2.125 1.000 2.781 0.875 0.750 0.937 12 23.7 0.131
CF10T 15.875 19.05 12.29 38.1 5/8-18 63.5 31.75 82.55 25.4 22.22 28.58 16 25.7 0.195
0.6250 0.750 0.484 1.500 5/8-18 2.5 1.250 3.250 1.000 0.875 1.125 16 25.7 0.195
CF12T 19.05 22.23 15.06 44.45 3/4-16 73.02 38.1 95.25 28.58 25.4 33.33 14 42.4 0.294
0.7500 0.875 0.593 1.750 3/4-16 2.875 1.500 3.75 1.125 1.000 1.312 14 42.4 0.294


Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:CFL12T 3/4-16L
