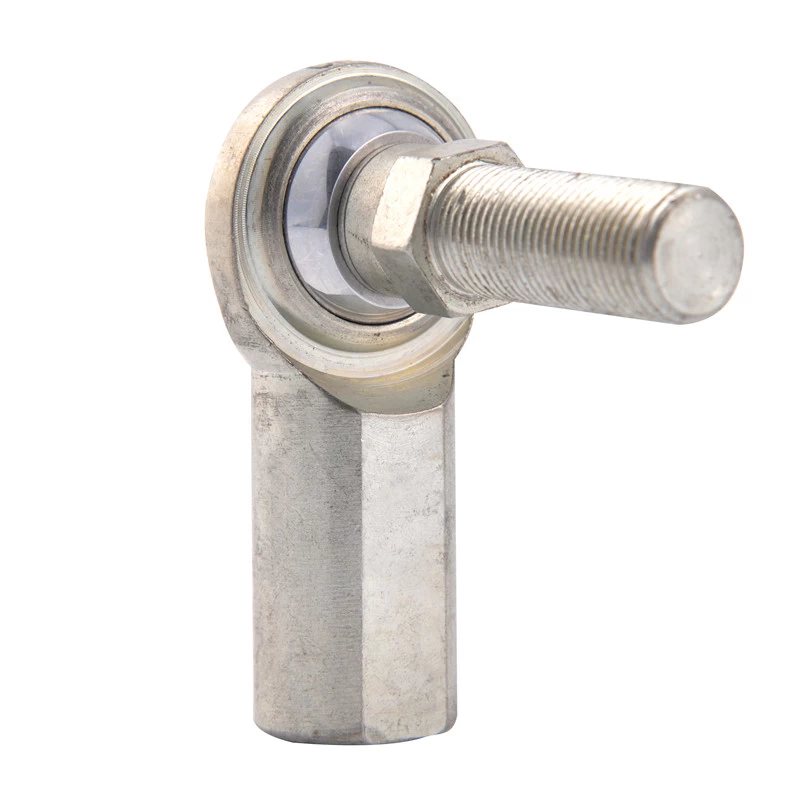

Inch Rod Ends CF...Y

Ball: Gcr15 Steel, heat treated, HRC56 min;

Precision ground polished hard chromium plated
Body: Carbon steel, Zinc plated, chromate treated
Liner: PTFE composite or PTFE fabric
Stud: Low carbon steel, zinc plated
Sliding contact surfaces: Steel/PTFE Composite
or Steel/PTFE Fabric

Facebook Twitter Pinterest LinkedIn 分享

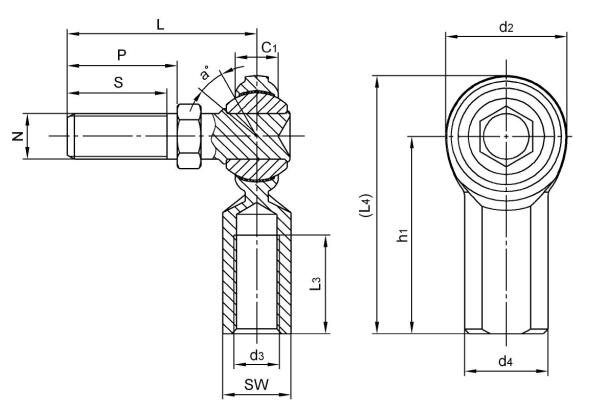

Bearing No. Dimensions(mm/inches) Ball
dia 		a°
mis.
angle 		Load
raings
(KN) 		weigh
≈ kg
d2 C1 d3
UNF-2B 		d4 SW h1 L3 (L4) N
UNF-2A 		s P L
CF3Y 15.88 5.94 10-32 10.31 7.92 26.97 11.1 34.91 10-32 11.1 12.7 25.8 11.11 22 4.4 0.022
0.625 0.234 10-32 0.406 0.312 1.062 0.437 1.375 10-32 0.437 0.500 1.016 7/16 22 4.4 0.022
CF4Y 19.05 6.35 1/4-28 11.89 9.52 33.32 14.27 42.85 1/4-28 12.7 14.27 26.18 12.7 20 8.2 0.027
0.750 0.250 1/4-28 0.468 0.375 1.312 0.562 1.687 1/4-28 0.500 0.562 1.031 1/2 20 8.2 0.027
CF5Y 22.23 7.92 5/16-24 12.7 11.1 34.92 15.88 46.03 5/16-24 15.06 17.45 30.96 15.88 21 10.2 0.048
0.875 0.312 5/16-24 0.500 0.437 1.375 0.625 1.812 5/16-24 0.593 0.687 1.219 5/8 21 10.2 0.048
CF6Y 25.4 9.11 3/8-24 17.45 14.27 41.28 19.05 53.98 3/8-24 20.62 23 39.67 18.26 23 14 0.077
1.000 0.359 3/8-24 0.687 0.562 1.625 0.750 2.125 3/8-24 0.812 0.906 1.562 23/32 23 14 0.077
CF7Y 28.58 10.31 7/16-20 19.05 15.88 46.02 22.22 60.3 7/16-20 23.8 26.97 44.45 20.62 22 17.6 0.122
1.125 0.406 7/16-20 0.750 0.625 1.812 0.875 2.375 7/16-20 0.937 1.062 1.750 13/16 22 17.6 0.122
CF8Y 33.33 11.5 1/2-20 22.22 19.05 53.98 25.4 70.64 1/2-20 25.4 28.58 50.8 23.8 24 23.7 0.181
1.312 0.453 1/2-20 0.875 0.750 2.125 1.000 2.781 1/2-20 1.000 1.125 2.000 15/16 24 23.7 0.181
CF10Y 38.1 12.3 5/8-18 25.4 22.22 63.5 31.75 82.55 5/8-18 34.93 38.1 63.5 28.58 26 25.7 0.308
1.500 0.484 5/8-18 1.000 0.875 2.5 1.250 3.250 5/8-18 1.375 1.500 2.500 9/8 26 25.7 0.308
CF12Y 44.45 15.06 3/4-16 28.58 25.4 73.03 38.1 95.25 3/4-16 41.28 46.02 76.2 33.33 23 42.4 0.503
1.750 0.593 3/4-16 1.125 1.000 2.875 1.500 3.75 3/4-16 1.625 1.812 3.000 21/16 23 42.4 0.503


Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:CFL6Y 3/8-24L
