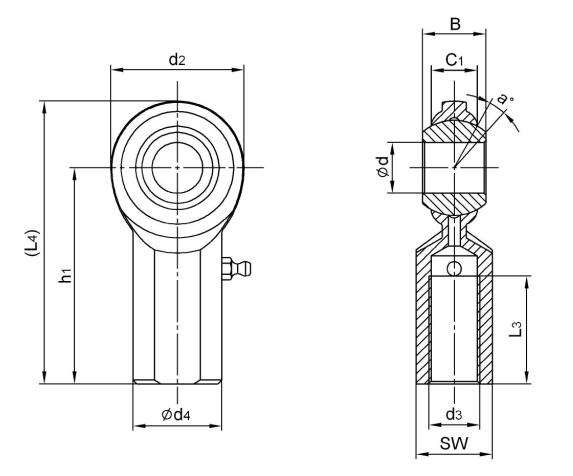

Bearing
No.
|
Dimensions(mm/inches)
|
Ball
dia
|
a°
mis.
angle
|
Load
ratings
(KN)
|
weight
≈ kg
|
|
d+0.038
-0.012
|
B
|
C1
|
d2
|
d3
UNF-2B
|
h1
|
L3
|
(L4)
|
d4
|
sw
|
|
CF3
|
4.826
|
7.92
|
5.94
|
15.88
|
10-32
|
26.97
|
11.11
|
34.91
|
10.31
|
7.92
|
11.11
|
13
|
7.6
|
0.182
|
|
0.1900
|
0.312
|
0.234
|
0.625
|
10-32
|
1.062
|
0.437
|
1.375
|
0.406
|
0.312
|
0.437
|
13
|
7.6
|
0.182
|
|
CF4
|
6.35
|
9.53
|
6.35
|
19.05
|
1/4-28
|
33.32
|
14.28
|
42.85
|
11.89
|
9.52
|
12.7
|
18
|
9.9
|
0.226
|
|
0.2500
|
0.375
|
0.250
|
0.750
|
1/4-28
|
1.312
|
0.562
|
1.687
|
0.468
|
0.375
|
0.500
|
18
|
9.9
|
0.226
|
|
CF5
|
7.938
|
11.1
|
7.92
|
22.23
|
5/16-24
|
34.92
|
15.88
|
46.03
|
12.7
|
11.1
|
15.88
|
14
|
12.7
|
0.362
|
|
0.3125
|
0.437
|
0.312
|
0.875
|
5/16-24
|
1.375
|
0.625
|
1.812
|
0.500
|
0.437
|
0.625
|
14
|
12.7
|
0.362
|
|
CF6
|
9.525
|
12.7
|
9.11
|
25.4
|
3/8-24
|
41.28
|
19.05
|
53.98
|
17.45
|
14.27
|
18.26
|
14
|
17
|
0.059
|
|
0.3750
|
0.500
|
0.359
|
1.000
|
3/8-24
|
1.625
|
0.750
|
2.125
|
0.687
|
0.562
|
0.719
|
14
|
17
|
0.059
|
|
CF7
|
11.112
|
14.27
|
10.31
|
28.58
|
7/16-20
|
46.02
|
22.22
|
60.3
|
19.05
|
15.88
|
20.62
|
13
|
21
|
0.081
|
|
0.4375
|
0.562
|
0.406
|
1.125
|
7/16-20
|
1.812
|
0.875
|
2.375
|
0.750
|
0.625
|
0.812
|
13
|
21
|
0.081
|
|
CF8
|
12.7
|
15.88
|
11.5
|
33.33
|
1/2-20
|
53.98
|
25.4
|
70.64
|
22.22
|
19.05
|
23.8
|
12
|
27.5
|
0.131
|
|
0.5000
|
0.625
|
0.453
|
1.312
|
1/2-20
|
2.125
|
1.000
|
2.781
|
0.875
|
0.750
|
0.937
|
12
|
27.5
|
0.131
|
|
CF10
|
15.875
|
19.05
|
12.29
|
38.1
|
5/8-18
|
63.5
|
31.75
|
82.55
|
25.4
|
22.22
|
28.58
|
16
|
29.9
|
0.195
|
|
0.6250
|
0.750
|
0.484
|
1.500
|
5/8-18
|
2.5
|
1.250
|
3.250
|
1.000
|
0.875
|
1.125
|
16
|
29.9
|
0.195
|
|
CF12
|
19.05
|
22.23
|
15.06
|
44.45
|
3/4-16
|
73.02
|
38.1
|
95.25
|
28.58
|
25.4
|
33.33
|
14
|
44.2
|
0.294
|
|
0.7500
|
0.875
|
0.593
|
1.750
|
3/4-16
|
2.875
|
1.500
|
3.75
|
1.125
|
1.000
|
1.312
|
14
|
44.2
|
0.294
|
|
CF16
|
25.4
|
34.93
|
25.4
|
69.85
|
5/4-12
|
104.78
|
53.98
|
139.7
|
41.28
|
38.1
|
47.62
|
14
|
129.1
|
0.925
|
|
1.0000
|
1.375
|
1.000
|
2.750
|
5/4-12
|
4.125
|
2.125
|
5.5
|
1.625
|
1.500
|
1.875
|
14
|
129.1
|
0.925
|
Notes: For grease fittings add "Z" to suffix example: CF6Z
Can supply rod ends with different pitch or accuracy of thread.
For left-hand thread, suffix "L" is added to bearing numbers. e.g.:CFL12 3/4-16L
