Inch Rod Ends CM...T



Ball: AISI 52100 bearing Steel, heat treated, HRC56 min;
Precision ground polished hard chromium plated
Body: Carbon steel,clear Zinc plated.

Race: PTFE composite or PTFE fabric

Sliding contact surfaces: Steel/PTFE



Facebook Twitter Pinterest LinkedIn 分享



CM10T Inch FISH EYE BEARING AMERICAN SIZE

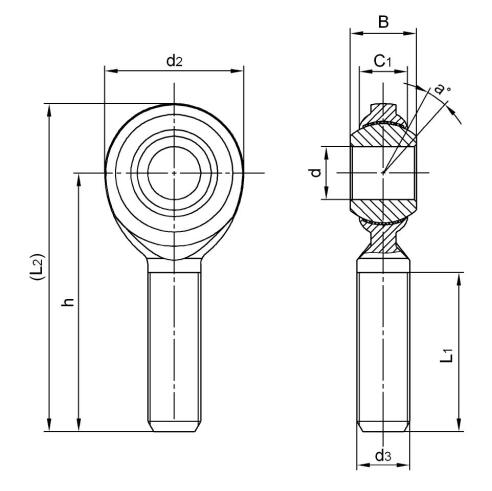

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
ratings
(KN)
weight
≈kg
d+0.038
 -0 012
B C1 d2
d3
UNF-2A
h L1 (L2)
CM3T 4.826 7.92 5.94 15.88 10-32 31.75 19.05 39.69 11.112 13 4.4 0.013
0.1900 0.312 0.234 0.625 10-32 1.250 0.750 1.562 0.437 13 4.4 0.013
CM4T 6.35 9.53 6.35 19.05 1/4-28 39.67 25.4 49.2 12.7 18 8.2 0.018
0.2500 0.375 0.250 0.750 1/4-28 1.562 1.000 1.937 0.500 18 8.2 0.018
CM5T 7.938 11.10 7.92 22.23 5/16-24 47.63 31.75 58.75 15.875 14 12.7 0.031
0.3125 0.437 0.312 0.875 5/16-24 1.875 1.250 2.312 0.625 14 12.7 0.031
CM6T 9.525 12.7 9.11 25.4 3/8-24 49.22 31.75 61.92 18.263 14 14 0.049
0.3750 0.500 0.359 1.000 3/8-24 1.938 1.250 2.437 0.719 14 14 0.049
CM7T 11.112 14.27 10.31 28.58 7/16-20 53.98 34.93 68.27 20.625 13 17.6 0.068
0.4375 0.562 0.406 1.125 7/16-20 2.125 1.375 2.678 0.812 13 17.6 0.068
CM8T 12.7 15.88 11.5 33.32 1/2-20 61.92 38.1 78.58 23.8 12 23.7 0.108
0.5000 0.625 0.453 1.312 1/2-20 2.438 1.500 3.093 0.937 12 23.7 0.108
CM10T 15.875 19.05 12.29 38.1 5/8-18 66.68 41.28 85.73 28.575 16 25.7 0.163
0.6250 0.750 0.484 1.500 5/8-18 2.625 1.625 3.375 1.125 16 25.7 0.163
CM12T 19.05 22.23 15.06 44.45 3/4-16 73.02 44.45 95.25 33.338 14 42.4 0.258
0.7500 0.875 0.593 1.750 3/4-16 2.875 1.750 3.750 1.312 14 42.4 0.258
CM14T 22.225 22.23 15.06 50.8 7/8-14 85.73 47.63 111.1 33.338 14 70.8 0.408
0.8750 0.875 0.593 2.000 7/8-14 3.375 1.875 4.375 1.312 14 70.8 0.408


Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:CML12T 3/4-16L
