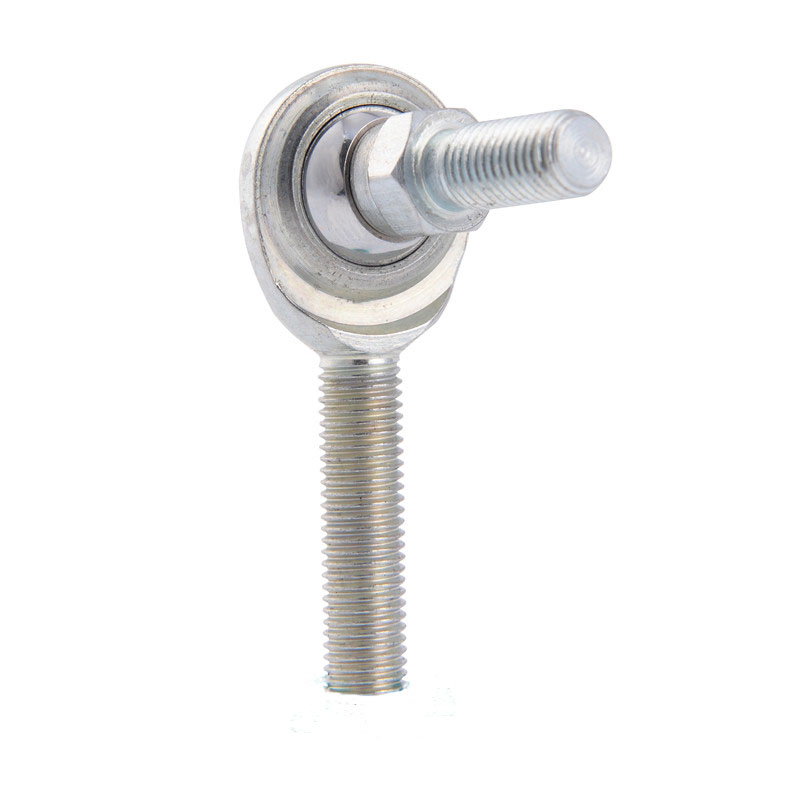

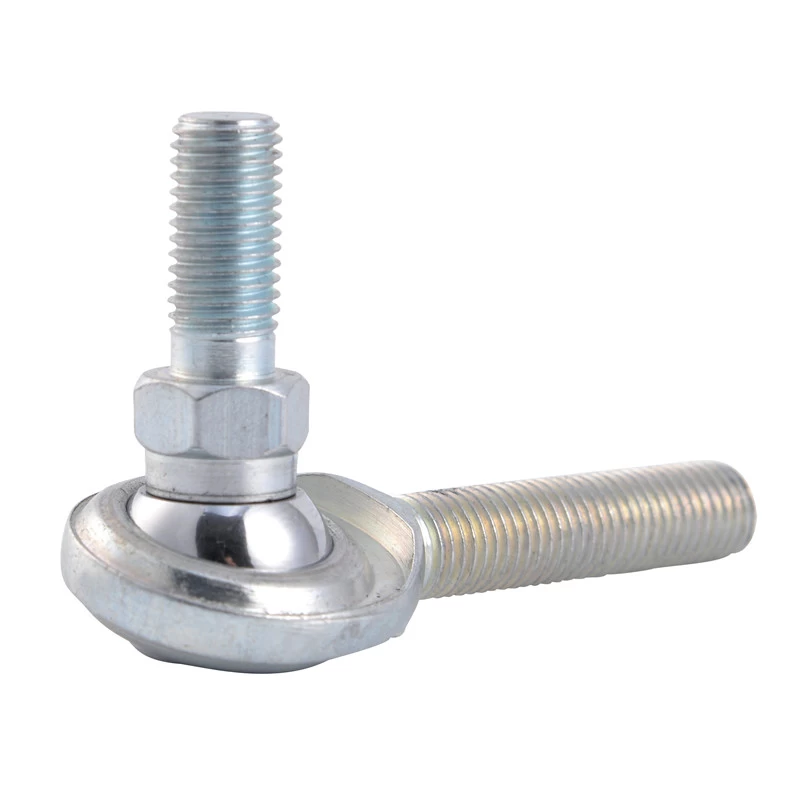

Inch Rod Ends CM...Y

Ball: AISI 52100 bearing Steel, heat treated, HRC56 min;
Precision ground polished hard chromium plated
Body: Carbon steel,clear Zinc plated.

Liner: PTFE composite or PTFE fabric

Stud: Low carbon steel, zinc plated

Sliding contact surfaces: Steel/PTFE Composite

or Steel/PTFE Fabric


Facebook Twitter Pinterest LinkedIn 分享

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
raings
(KN)
weigh
≈kg
d2 C1
d3
UNF-2A
h L1 (L4)
N
UNF-2A
s P L
CM3Y 15.88 5.94 10-32 31.75 19.05 39.69 10-32 11.1 12.7 25.8 11.11 22 4.4 0.018
0.625 0.234 10-32 1.250 0.750 1.562 10-32 0.437 0.500 1.016 7/16 22 4.4 0.018
CM4Y 19.05 6.35 1/4-28 39.67 25.4 49.2 1/4-28 12.7 14.27 26.18 12.7 20 8.2 0.022
0.750 0.250 1/4-28 1.562 1.000 1.937 1/4-28 0.500 0.562 1.031 1/2 20 8.2 0.022
CM5Y 22.23 7.92 5/16-24 47.63 31.75 58.75 5/16-24 15.06 17.45 30.96 15.88 21 10.2 0.045
0.875 0.312 5/16-24 1.875 1.250 2.312 5/16-24 0.593 0.687 1.219 5/8 21 10.2 0.045
CM6Y 25.4 9.11 3/8-24 49.23 31.75 61.92 3/8-24 20.62 23 39.67 18.26 23 14 0.068
1.000 0.359 3/8-24 1.938 1.250 2.437 3/8-24 0.812 0.906 1.562 23/32 23 14 0.068
CM7Y 28.58 10.31 7/16-20 53.98 34.93 68.27 7/16-20 23.8 26.97 44.45 20.62 22 17.6 0.108
1.125 0.406 7/16-20 2.125 1.375 2.678 7/16-20 0.937 1.062 1.750 13/16 22 17.6 0.108
CM8Y 33.33 11.5 1/2-20 61.93 38.1 78.58 1/2-20 25.4 28.58 50.8 23.8 24 23.7 0.158
1.312 0.453 1/2-20 2.438 1.500 3.093 1/2-20 1.000 1.125 2.000 15/16 24 23.7 0.158
CM10Y 38.1 12.3 5/8-18 66.68 41.28 85.73 5/8-18 34.93 38.1 63.5 28.57 26 25.7 0.276
1.500 0.484 5/8-18 2.625 1.625 3.375 5/8-18 1.375 1.500 2.500 9/8 26 25.7 0.276
CM12Y 44.45 15.06 3/4-16 73.03 44.45 95.25 3/4-16 41.28 46.02 76.2 33.33 23 42.4 0.467
1.750 0.593 3/4-16 2.875 1.750 3.750 3/4-16 1.625 1.812 3.000 21/16 23 42.4 0.467

Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:CML6Y 3/8-24L
