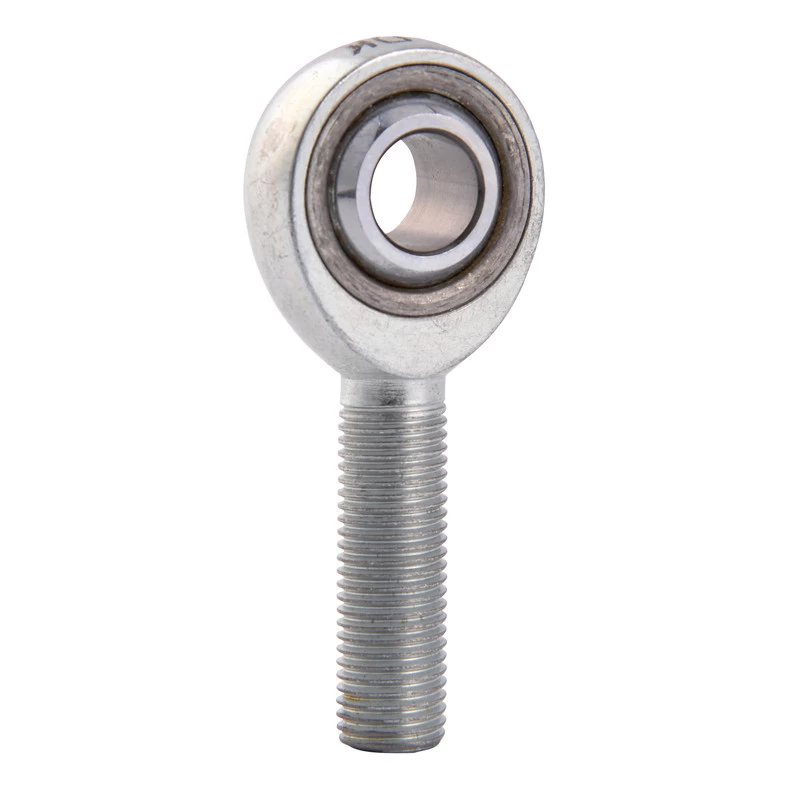

Inch Rod Ends JM


Ball: AISI 52100 bearing Steel, heat treated, HRC56 min;
Precision ground polished hard chromium plated
Body: Carbon steel,clear Zinc plated.

Race: Steel alloy, Zinc plated, chromate treated

Sliding contact surfaces: Steel/Steel or Steel/PTFE Composite


Facebook Twitter Pinterest LinkedIn 分享

track rod end JM10

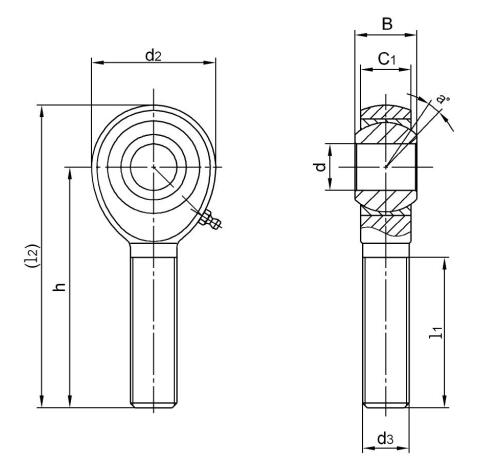

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
ratings
(KN)
weight
≈kg
d+0.038
 -0 012
B C1 d2
d3
UNF-2A
h L1 (L2)
JM3 4.826 7.92 6.35 15.88 10-32 31.75 19.05 39.69 11.11 10 4.4 0.013
0.1900 0.312 0.250 0.625 10-32 1.250 0.750 1.562 0.437 10 4.4 0.013
JM4 6.35 9.53 7.14 19.05 1/4-28 39.67 25.4 49.2 12.7 13 8.2 0.018
0.2500 0.375 0.281 0.750 1/4-28 1.562 1.000 1.937 0.500 13 8.2 0.018
JM5 7.938 11.1 8.74 22.23 5/16-24 47.63 31.75 58.75 15.88 10 11.1 0.031
0.3125 0.437 0.344 0.875 5/16-24 1.875 1.250 2.312 0.625 10 11.1 0.031
JM6 9.525 12.7 10.31 25.4 3/8-24 49.22 31.75 61.92 18.26 9 13.3 0.049
0.3750 0.500 0.406 1.000 3/8-24 1.938 1.250 2.437 0.719 9 13.3 0.049
JM7 11.112 14.27 11.1 28.58 7/16-20 53.98 34.93 68.27 20.62 11 18.5 0.072
0.4375 0.562 0.437 1.125 7/16-20 2.125 1.375 2.678 0.812 11 18.5 0.072
JM8 12.7 15.88 12.7 33.32 1/2-20 61.92 38.1 78.58 23.8 9 29.1 0.113
0.5000 0.625 0.500 1.312 1/2-20 2.438 1.500 3.093 0.937 9 29.1 0.113
JM10 15.875 19.05 14.27 38.1 5/8-18 66.68 41.28 85.73 28.58 11 31.2 0.172
0.6250 0.750 0.562 1.500 5/8-18 2.625 1.625 3.375 0.937 11 31.2 0.172
JM12 19.05 22.23 17.45 44.45 3/4-16 73.02 44.45 95.25 28.58 10 44.8 0.272
0.7500 0.875 0.687 1.750 3/4-16 2.875 1.750 3.750 1.125 10 44.8 0.272
JM14 25.4 22.23 17.45 50.8 7/8-14 85.73 47.63 111.1 33.33 10 85 0.408
0.8750 0.875 0.687 2.000 7/8-14 3.375 1.875 4.375 1.312 10 85 0.408
JM16 25.4 34.93 25.4 69.85 5/4-12 104.78 53.98 139.7 47.63 14 155.4 1.091
JM16-1** 25.4 34.93 25.4 69.85 1-14 104.78 53.98 139.7 47.63 14 155.4 0.964
JM16-2** 1.0000 1.375 1.000 2.750 12 4.125 2.125 5.500 1.875 14 155.4 0.964


Notes: For grease fittings add "Z" to suffix. Example: JM6Z

          For studs add "Y" to suffix.         Example: JM5Y

          For teflon liner add "T" to suffix.  Example: JM12T

Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:JML12T 3/4-16L
