Bearing
No.
|

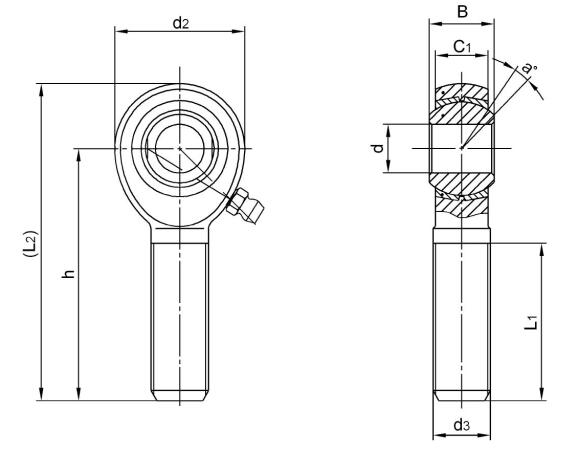

Dimensions(mm/inches)
|
Ball
dia
|
a°
mis.
angle
|
Load
ratings
(KN)
|
weight
≈kg
|
|
d+0.038
-0 012
|
B
|
C1
|
d2
|
d3
UNF-2A
|
h
|
L1
|
(L2)
|
|
M3
|
4.826
|
7.92
|
6.35
|
15.88
|
10-32
|
31.75
|
19.05
|
39.69
|
11.11
|
10
|
4.4
|
0.013
|
|
0.1900
|
0.312
|
0.250
|
0.625
|
10-32
|
1.250
|
0.750
|
1.562
|
0.437
|
10
|
4.4
|
0.013
|
|
M4
|
6.35
|
9.53
|
7.14
|
19.05
|
1/4-28
|
39.67
|
25.4
|
49.2
|
12.7
|
13
|
8.2
|
0.018
|
|
0.2500
|
0.375
|
0.281
|
0.750
|
1/4-28
|
1.562
|
1.000
|
1.937
|
0.500
|
13
|
8.2
|
0.018
|
|
M5
|
7.938
|
11.10
|
8.74
|
22.23
|
5/16-24
|
47.63
|
31.75
|
58.75
|
15.88
|
10
|
13.1
|
0.031
|
|
0.3125
|
0.437
|
0.344
|
0.875
|
5/16-24
|
1.875
|
1.250
|
2.312
|
0.625
|
10
|
13.1
|
0.031
|
|
M6
|
9.525
|
12.7
|
10.31
|
25.4
|
3/8-24
|
49.22
|
31.75
|
61.92
|
18.26
|
9
|
14.6
|
0.049
|
|
0.3750
|
0.500
|
0.406
|
1.000
|
3/8-24
|
1.938
|
1.250
|
2.437
|
0.719
|
9
|
14.6
|
0.049
|
|
M7
|
11.112
|
14.27
|
11.1
|
28.58
|
7/16-20
|
53.98
|
34.93
|
68.27
|
20.62
|
11
|
19.5
|
0.072
|
|
0.4375
|
0.562
|
0.437
|
1.125
|
7/16-20
|
2.125
|
1.375
|
2.678
|
0.812
|
11
|
19.5
|
0.072
|
|
M8
|
12.7
|
15.88
|
12.7
|
33.32
|
1/2-20
|
61.92
|
38.1
|
78.58
|
23.8
|
9
|
29.4
|
0.113
|
|
0.5000
|
0.625
|
0.500
|
1.312
|
1/2-20
|
2.438
|
1.500
|
3.093
|
0.937
|
9
|
29.4
|
0.113
|
|
M10
|
15.875
|
19.05
|
14.27
|
38.1
|
5/8-18
|
66.68
|
41.28
|
85.73
|
28.58
|
11
|
35.5
|
0.172
|
|
0.6250
|
0.750
|
0.562
|
1.500
|
5/8-18
|
2.625
|
1.625
|
3.375
|
1.125
|
11
|
35.5
|
0.172
|
|
M12
|
19.05
|
22.23
|
17.45
|
44.45
|
3/4-16
|
73.02
|
44.45
|
95.25
|
33.33
|
10
|
50.2
|
0.272
|
|
0.7500
|
0.875
|
0.687
|
1.750
|
3/4-16
|
2.875
|
1.750
|
3.750
|
1.312
|
10
|
50.2
|
0.272
|
|
M14
|
22.225
|
22.23
|
17.45
|
50.8
|
7/8-14
|
85.73
|
47.63
|
111.1
|
33.33
|
10
|
85
|
0.408
|
|
0.8750
|
0.875
|
0.687
|
2.000
|
7/8-14
|
3.375
|
1.875
|
4.375
|
1.312
|
10
|
85
|
0.408
|
|
M16
|
25.4
|
34.93
|
25.4
|
69.85
|
5/4-12
|
104.78
|
53.98
|
139.7
|
47.63
|
14
|
152.5
|
1.091
|
|
1.0000
|
1.375
|
1.000
|
2.750
|
5/4-12
|
4.125
|
2.125
|
5.500
|
1.875
|
14
|
152.5
|
1.091
|

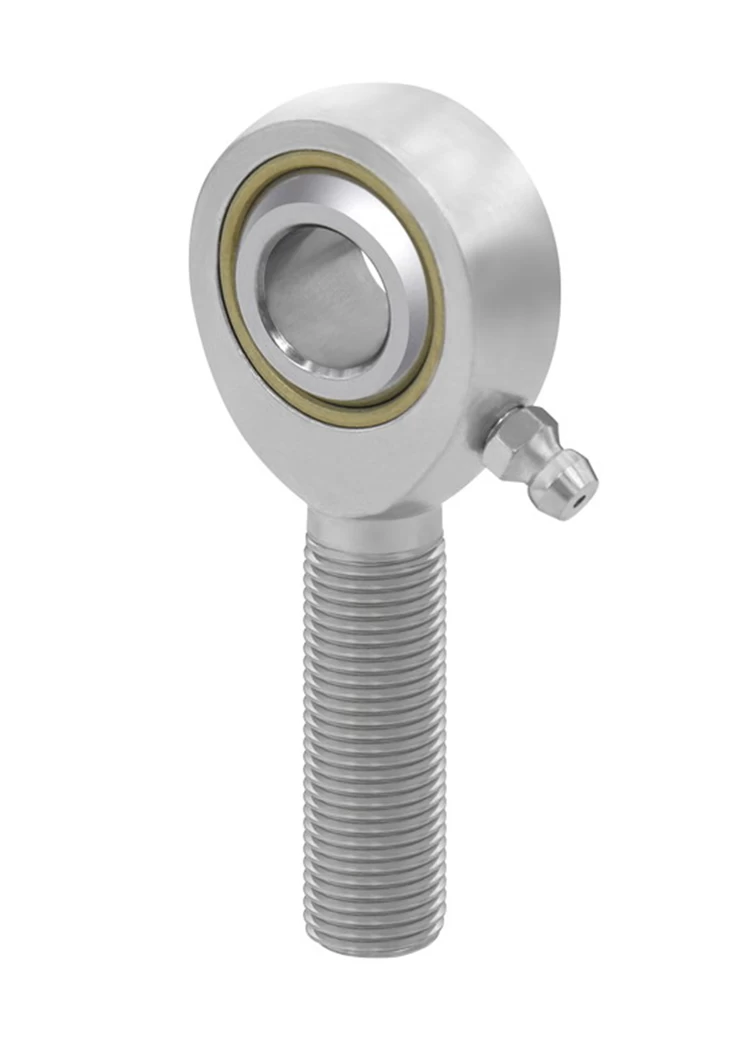

Notes: For grease fittings add "Z" to suffix example: M6Z
Can supply rod ends with different pitch or accuracy of thread.
For left-hand thread, suffix "L" is added to bearing numbers. e.g.:ML12 3/4-16L
