Inch Rod Ends NEXF


Ball: AISI 52100 bearing Steel, heat treated, HRC56 min; Precision ground, polished hard chromium plated
Body: Carbon steel, Zinc plated

Race: Nylon polymer PTFE additive

Sliding contact surfaces: Steel/Nylon


Facebook Twitter Pinterest LinkedIn 分享

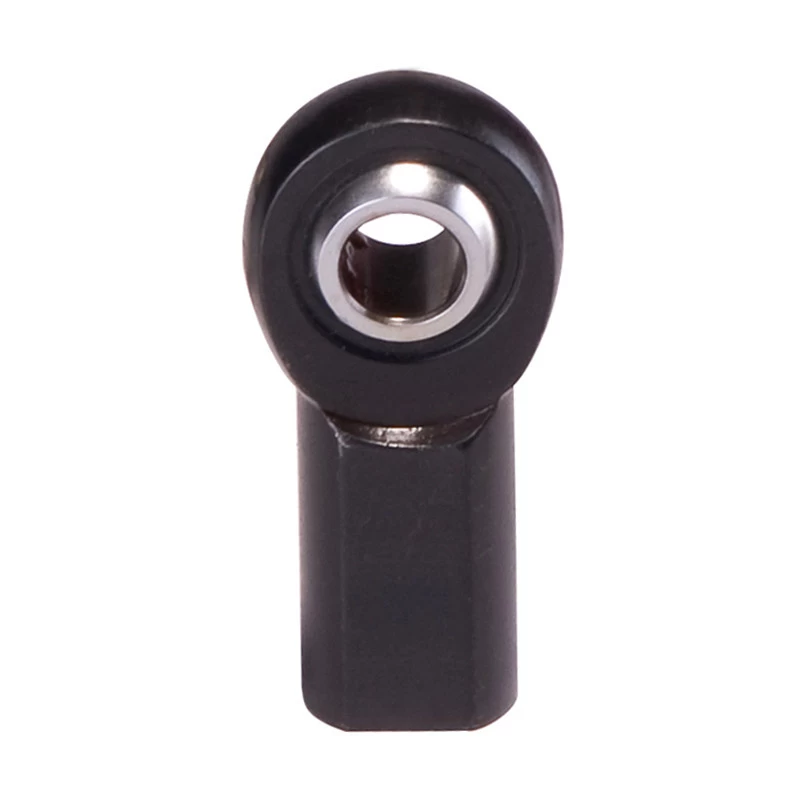

NEXF7 Plastic Rod End Bearings

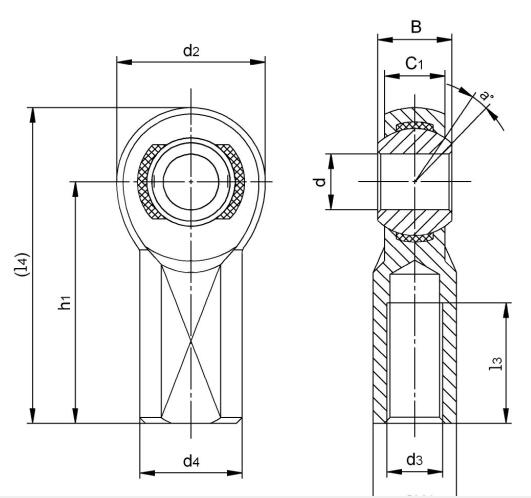

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
ratings
(KN)
weight
≈ kg
d+0.038
  -0.012
B C1 d2
d3
UNF-2B
h1 L3 (L4) d4 sw
NEXF3 4.826 7.92 6.35 15.88 10-32 26.97 11.11 34.91 10.31 7.92 11.11 10 6.8 0.018
NEXF3 0.1900 0.312 0.250 0.625 10-32 1.062 0.437 1.375 0.406 0.312 0.437 10 6.8 0.018
NEXF4 6.35 9.53 7.14 19.05 1/4-28 33.32 14.27 42.85 11.89 9.52 12.7 13 11.2 0.027
NEXF4 0.2500 0.375 0.281 0.750 1/4-28 1.312 0.562 1.687 0.468 0.375 0.500 13 11.2 0.027
NEXF5 7.938 11.10 8.74 22.23 5/16-24 34.92 15.88 46.03 12.7 11.1 15.88 10 13.9 0.040
NEXF5 0.3125 0.437 0.344 0.875 5/16-24 1.375 0.625 1.812 0.500 0.437 0.625 10 13.9 0.040
NEXF6 9.525 12.7 10.31 25.4 3/8-24 41.28 19.05 53.98 17.45 14.27 18.26 9 17.4 0.063
NEXF6 0.3750 0.500 0.406 1.000 3/8-24 1.625 0.75 2.125 0.687 0.562 0.719 9 17.4 0.063
NEXF7 11.11 14.27 11.1 28.58 7/16-20 46.02 22.22 60.31 19.05 15.88 20.62 11 18.7 0.086
NEXF7 0.4375 0.562 0.437 1.125 7/16-20 1.812 0.875 2.375 0.750 0.625 0.812 11 18.7 0.086
NEXF8 12.7 15.88 12.7 33.32 1/2-20 53.98 25.4 70.64 22.22 19.05 23.8 9 29.6 0.140
NEXF8 0.5000 0.625 0.500 1.312 1/2-20 2.125 1.000 2.781 0.875 0.750 0.937 9 29.6 0.140
NEXF10 15.875 19.05 14.27 38.1 5/8-18 63.5 31.75 82.55 25.4 22.23 28.58 11 32.7 0.204
NEXF10 0.6250 0.750 0.562 1.500 5/8-18 2.5 1.250 3.250 1.000 0.875 1.125 11 32.7 0.204
NEXF12 19.05 22.23 17.45 44.45 3/4-16 73.02 38.1 95.25 28.58 25.4 33.33 10 51.2 0.313
NEXF12 0.7500 0.875 0.687 1.750 3/4-16 2.875 1.500 3.750 1.125 1.000 1.312 10 51.2 0.313



Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:NEXFL12 3/4-16L
