Bearing No.
|

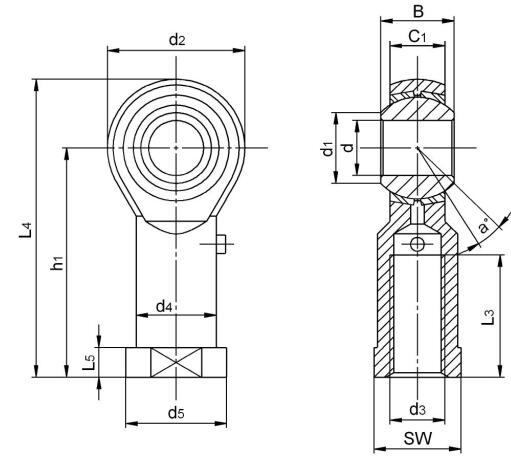

Dimensions(mm)
|
Ball
dia
|
a°
mis.
angle
|
Load ratings
(KN)
|
weight
≈ kg
|
|
d
+0.038
-0.012
|
B
|
C1
|
d1
|
d2
|
d3
UNF-2B
|
h1
|
L3
|
(L4)
|
L5
|
d4
|
d5
|
sw
|
Dynamic
Cr
|
Static
Cor
|
|
PHSB3
|
4.826
|
7.92
|
6.35
|
7.77
|
15.88
|
10-32
|
26.97
|
12.7
|
34.91
|
4.75
|
7.92
|
10.31
|
7.92
|
11.11
|
10
|
2.8
|
7.4
|
0.015
|
|
PHSB4
|
6.35
|
9.53
|
7.14
|
8.39
|
19.05
|
1/4-28
|
33.32
|
17.45
|
42.85
|
4.75
|
9.52
|
11.89
|
9.53
|
12.7
|
13
|
4.8
|
11.2
|
0.025
|
|
PHSB5
|
7.938
|
11.10
|
8.74
|
11.35
|
22.23
|
5/16-24
|
34.93
|
17.45
|
46.03
|
4.75
|
11.1
|
12.7
|
11.1
|
15.87
|
10
|
5.9
|
13.8
|
0.036
|
|
PHSB6
|
9.525
|
12.7
|
10.31
|
13.13
|
25.4
|
3/8-24
|
41.28
|
20.62
|
53.98
|
6.35
|
14.27
|
17.45
|
14.27
|
18.26
|
9
|
8.2
|
18.2
|
0.061
|
|
PHSB7
|
11.112
|
14.27
|
11.1
|
14.88
|
28.58
|
7/16-20
|
46.02
|
23.8
|
60.3
|
6.35
|
15.88
|
19.05
|
15.88
|
20.62
|
11
|
10
|
22
|
0.081
|
|
PHSB8
|
12.7
|
15.88
|
12.7
|
17.73
|
33.32
|
1/2-20
|
53.98
|
26.97
|
70.64
|
6.35
|
19.05
|
22.22
|
19.05
|
23.8
|
9
|
15
|
31.7
|
0.133
|
|
PHSB10
|
15.875
|
19.05
|
14.27
|
21.31
|
38.1
|
5/8-18
|
63.5
|
34.92
|
82.55
|
7.92
|
22.22
|
25.4
|
22.22
|
28.57
|
11
|
18
|
35.1
|
0.190
|
|
PHSB12
|
19.05
|
22.23
|
17.45
|
24.84
|
44.45
|
3/4-16
|
73.03
|
39.67
|
95.25
|
7.92
|
25.4
|
28.58
|
25.4
|
33.33
|
10
|
27
|
49.6
|
0.285
|
|
PHSB16
|
25.4
|
34.93
|
25.4
|
32.23
|
69.85
|
5/4-12
|
104.78
|
53.98
|
139.7
|
11.1
|
38.1
|
44.45
|
38.1
|
47.62
|
14
|
60
|
101
|
1.000
|
Can supply rod ends with different pitch or accuracy of thread.
For left-hand thread, suffix "L" is added to bearing numbers. e.g.:PHSB12L 3/4-16L
