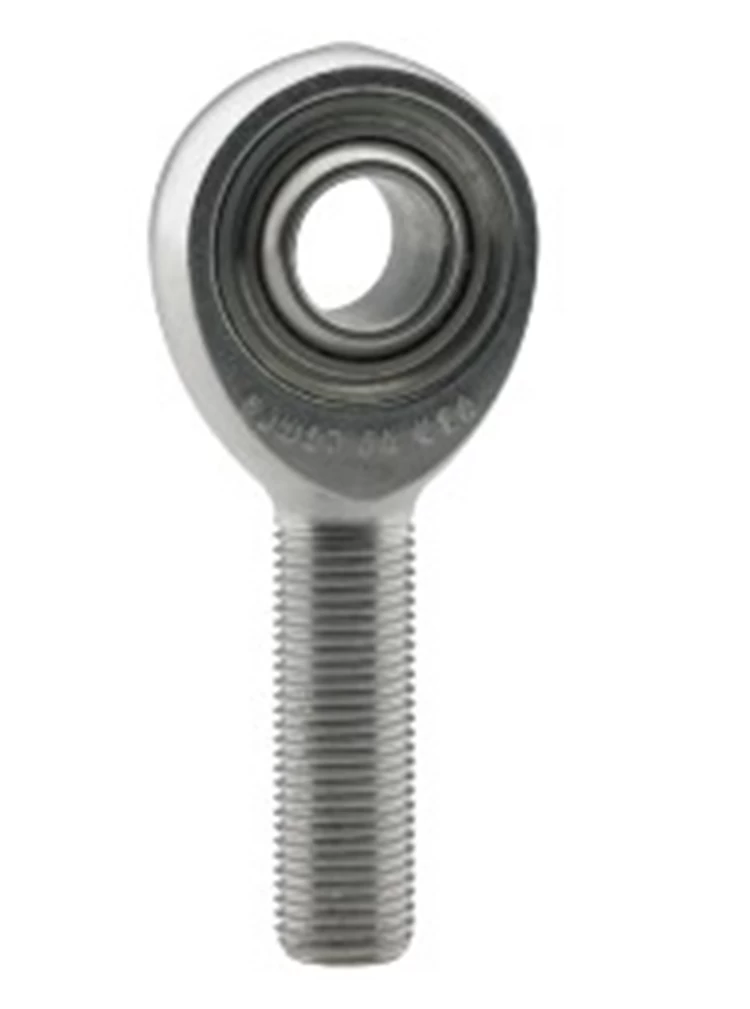

Inch Rod Ends SJM..T



Ball: 440C Stainless Steel, Heat treated, HRC56 min Precision ground, Polished

Body: 17-4Ph Stainless steel heat treated

Race: 17-4Ph Stainless steel heat treated

liner: PTFE composite or PTFE fabric

Sliding contact surfaces: Steel/PTFE composite or Steel/PTFE fabric



Facebook Twitter Pinterest LinkedIn 分享


Stainless Steel Rod Ends American Size SJM4T

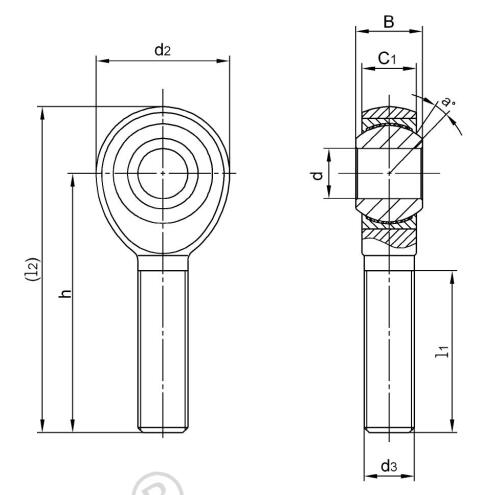

Bearing No.

Dimensions( inches)
Ball
dia
a0
mis.
angle
Load
ratings
(ibs)
weight
 ≈ kg
d +0.0000
 -0.0005
B +0.000
  -0.002
C1+0.005
 -0.005
d2 +0.010
  -0.010
d3
h -0.010
  -0.010
l1 +0.031
  -0.031
l2
SJM4T 0.2500 0.437 0.337 0.806 1/4-28 1.562 0.968 1.964 0.531 16 4874 0.032
SJM5T 0.3125 0.437 0.327 0.900 5/16-24 1.875 1.187 2.325 0.593 14 7196 0.039
SJM6T 0.3750 0.500 0.416 1.025 3/8-24 1.938 1.187 2.450 0.687 12 8580 0.061
SJM7T 0.4375 0.562 0.452 1.150 7/16-20 2.125 1.281 2.700 0.781 14 12000 0.083
SJM8T 0.5000 0.625 0.515 1.337 1/2-20 2.438 1.468 3.106 0.875 12 19520 0.126
SJM10T 0.6250 0.750 0.577 1.525 5/8-18 2.625 1.562 3.387 1.062 16 21920 0.192
SJM12T 0.7500 0.875 0.640 1.775 3/4-16 2.875 1.687 3.762 1.250 14 29310 0.289


Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.: SJML6T 3/8-24L
