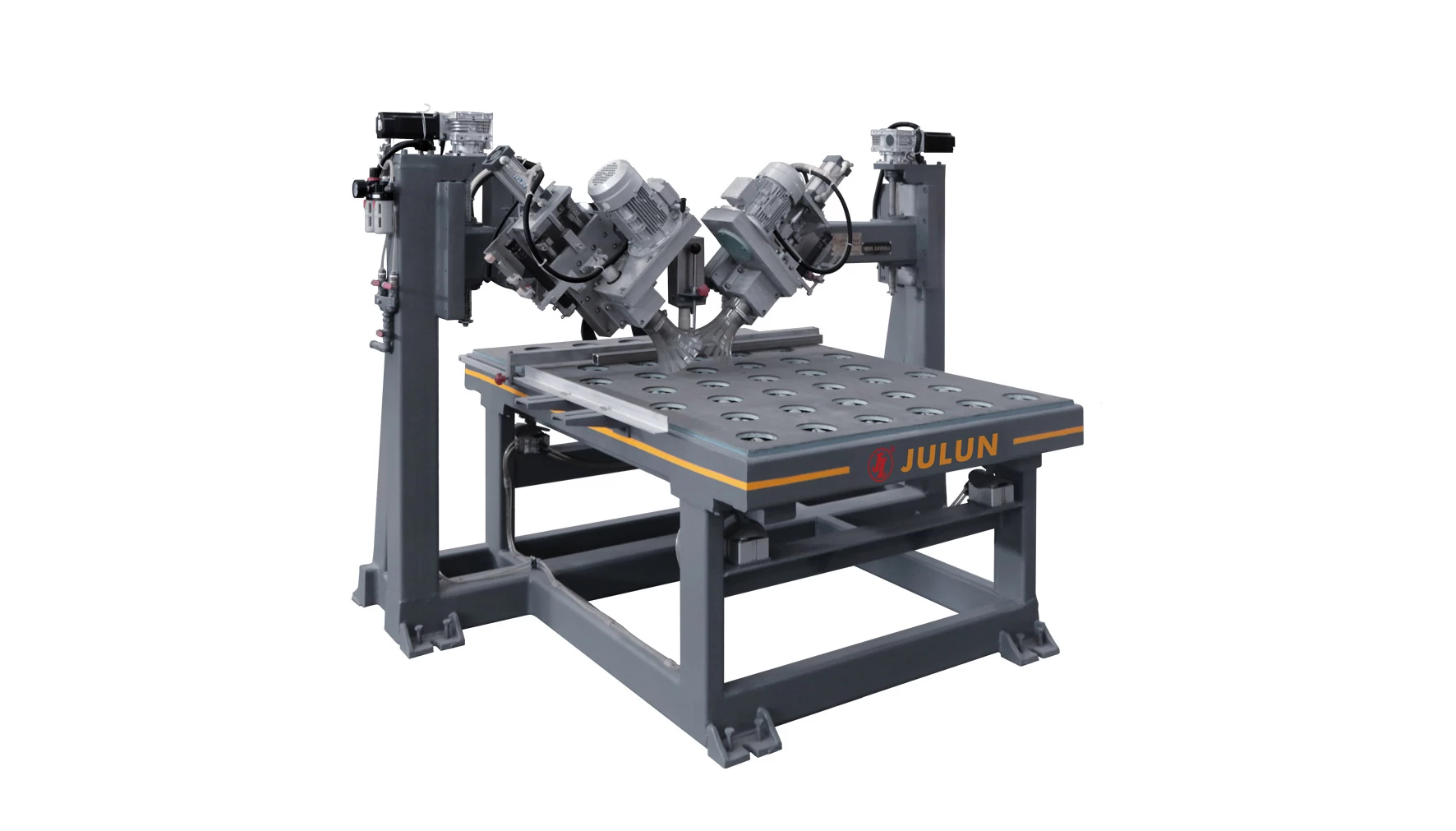

Automatic Inclined Drilling Machine
1. A special drill machine with double draw hook hole for dry slate hanging,which is a creative machine at domestic China. It uses a main shaft at high speed,automatic feed knife with air pressure and precise orientation.
2. The special parts use straight line bearings completely and imported universal roll wheel ,which change the glide movement to roll movement with low cost and labors intensity.It is featured as stable function,good precision of drilling hole and high efficiency,which is equal to foreign advanced level.
3. It is ideal equipment for slate hanging manufacturer.
Specification
|
Appellation
|
Unit
|
SZ/PC-10
|
|
Drill hole ascent
|
|
45 degree
|
|
Drill hole diameter
|
mm
|
Φ3~Φ12
|
|
Drill hole depth
|
mm
|
50
|
|
Double draw distance
|
mm
|
60-200
|
|
Worktable size
|
mm
|
1640×1200
|
|
Air consumption
|
m3/min
|
0.12
|
|
Water consumption
|
m3/h
|
0.23
|
|
Air consumption
|
kW
|
1.1×2
|
|
Total power
|
kW
|
2.2
|
|
Dimension(LXWXH)
|
mm
|
2350×1650×1950
|
|
Weight
|
kg
|
850
|
