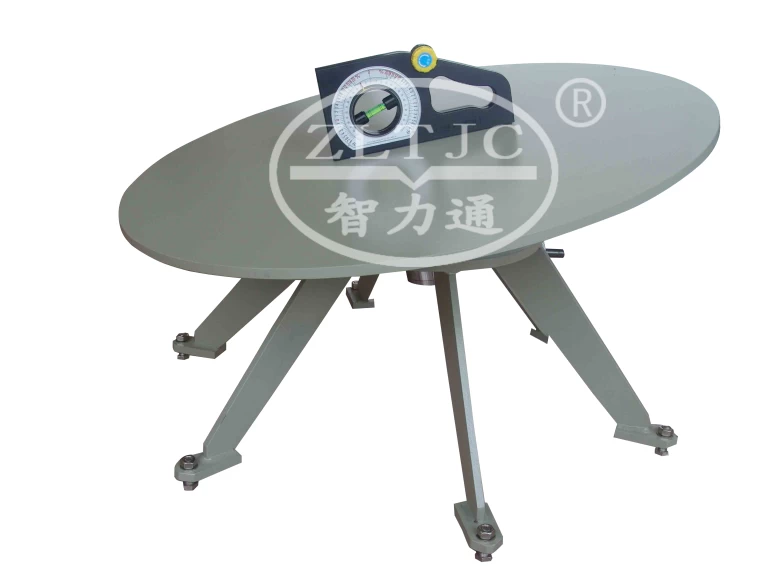

Inclined Plane Test Device
Product details: Model ZLT-WD1
Table Diameter: 600mm Manual Control
To determine the stability of electric appliances which are used on a table or on the floor, in accordance with IEC60065 clause 19.1, IEC60335-1 clause 20.1, IEC60601-1 clause 24.1, IEC 60950 clause 4.1.1. The device consists of a surface and a threaded spindle with handwheel for adjusting the incline of the table board from the horizontal up to 30° against the horizontal.
Standard Outfit:
1 table board, with supporting frame,
1 base plate with hinges for the supporting frame and for the spindle bearing,
1 threaded spindle with handwheel for adjusting the incline of the table board from the horizontal up to 30°against the horizontal,
1 inclination angle measuring instrument, to mount at the table board, for checking the angle of inclination of the table board,
| Model |
ZLT-WD1 |
ZLT-WD2 |
ZLT-WD2D |
ZLT-WD3 |
ZLT-WD3D |
| Table Diameter |
600mm |
800mm |
800mm |
1000mm |
1000mm |
| Rotation Mode |
Manual control |
Manual Control |
Electric Model |
Manual Control |
Electric Model |
| Rotation Speed |
|
|
1 rpm |
|
1 rpm |
| Inclination Angle |
0-30±1° |
0-30±1° |
0-30±1° |
0-30±1° |
0-30±1° |
| Permissible Load |
Less than 50 kgs |
less than 80 kgs |
less than 80 kgs |
less than 120 kgs |
less than 120 kgs |
