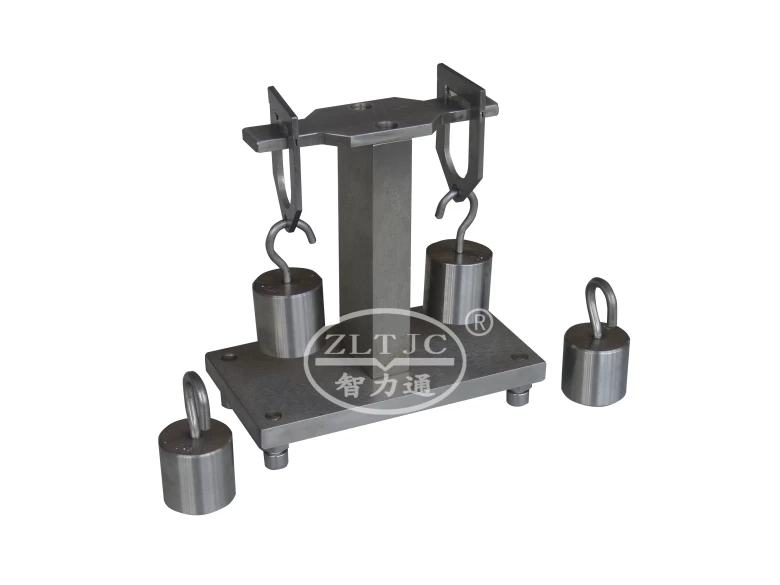

Indentation Test Device
Product details: Model ZLT-HP1.
For pressure tests on plug pin insulating sleeves at temperatures to 200℃ with 2,5N loads, according to IEC60884-1 figure 41,BS1363 figure 10.

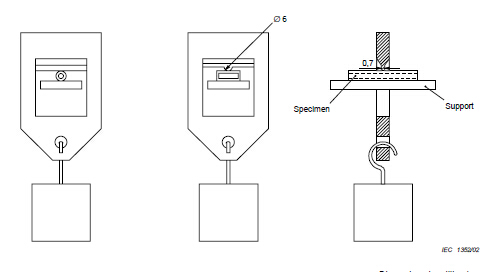

This apparatus has a rectangular blade (see IEC60884 1 figure 41a) with an edge 0,7 mm wide, to be used in the case of round pins, or a blade having a round shape (see figure 41b), with a diameter of 6 mm and an edge of (0,7±0,01) mm, in other cases, for simultaneous testing of 2 samples, with 2 testing frames, 2 load carriers and 2 sets of load weights, stand with bearing support T-shaped, rounded blade with radius 6 mm.
