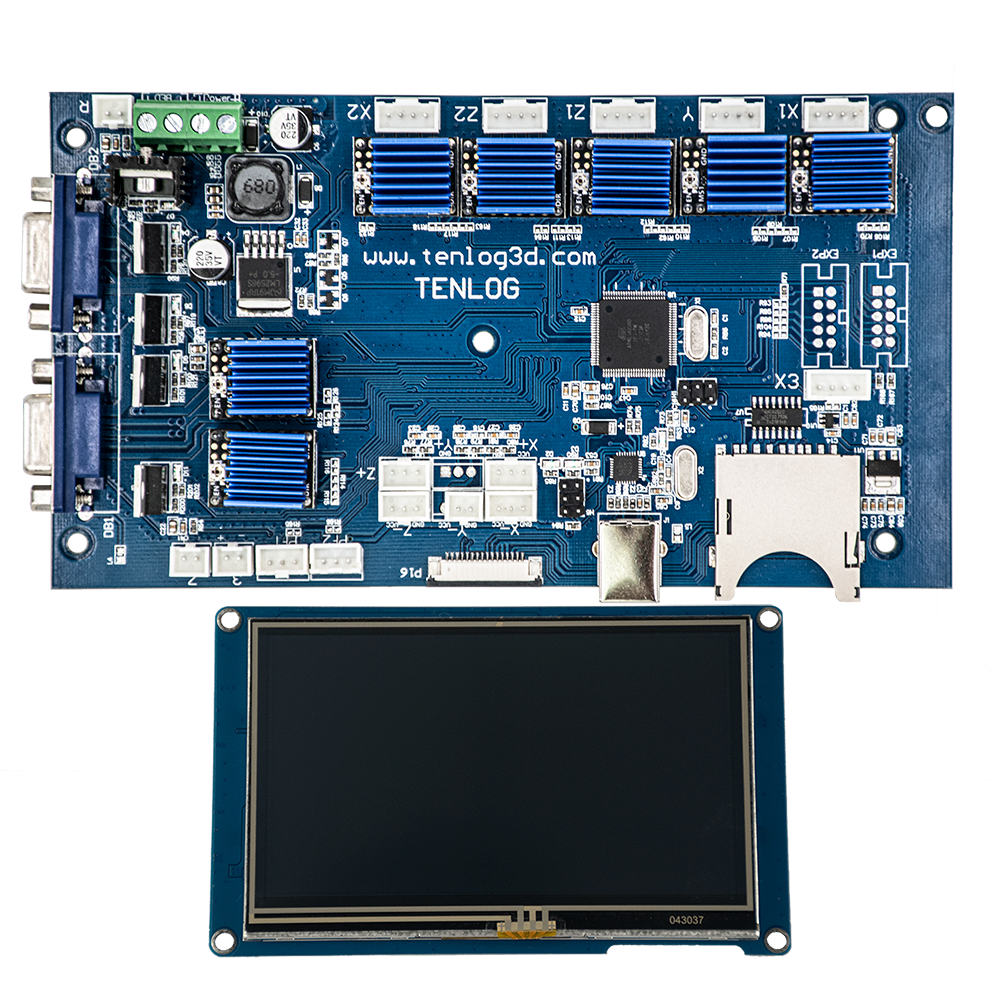

The DMP motherboard contains seven TMC2208 drivers, Suitable for Hands 2, TL-D3 Pro, TL-D3S, TL-D5, TL-D6.
This kit comes with a touch screen and is equipped with a brand new UI.

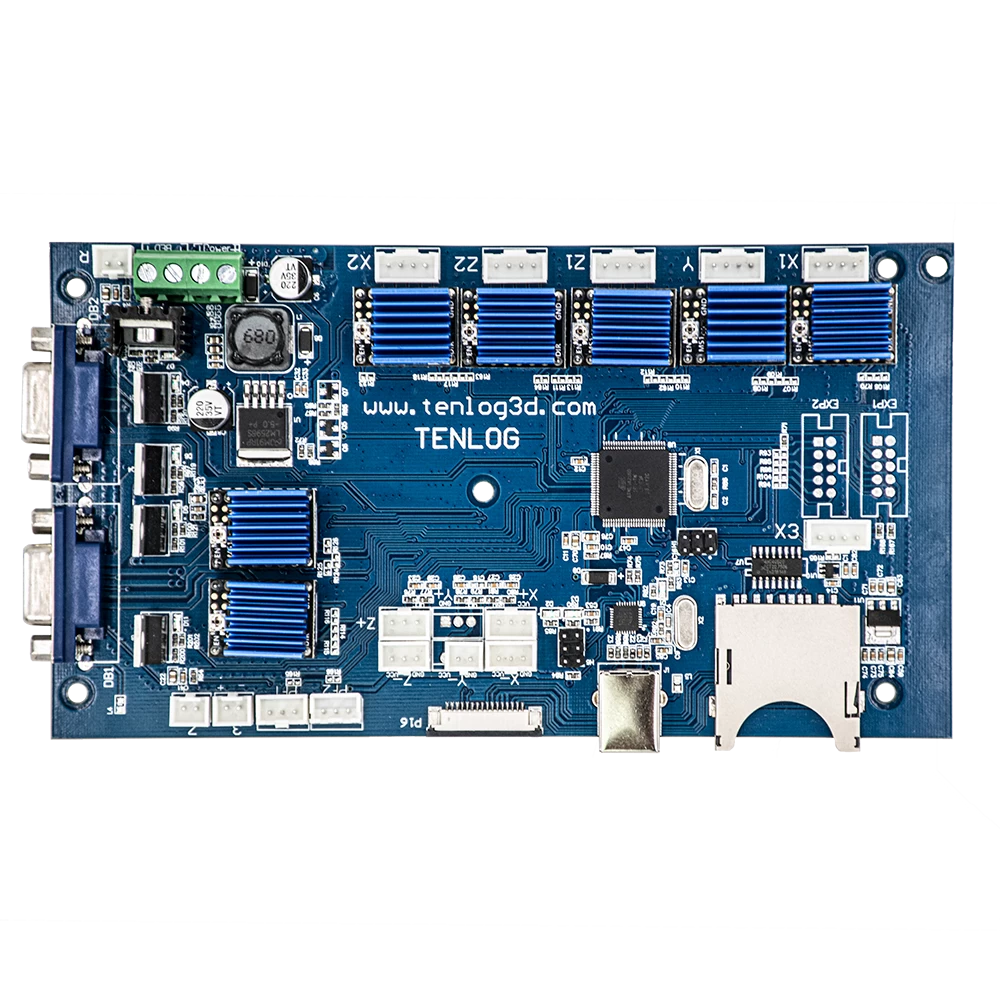

Motherboard:
Input Voltage: 24V
Hot Bed Output Voltage: 24V
Support Power-loss Recover & Filament Runout Detection
SD Card Slot*1
USB Type-B Port*1
Tenlog 15Pin All-in-One Connector*2
Controllable Number of Motors: 7
Master Chip: Mega2560
Whether to Pre-install Firmware: Yes, with Newest Version
Touch Screen:
4.3-inch 480*272 LCD Touch Screen OR
3.5-inch 480*320 LCD Touch Screen
Whether to Pre-install Firmware: Yes, with Newest UI
How to Upgrade Drivers to TMC2208 from A4988

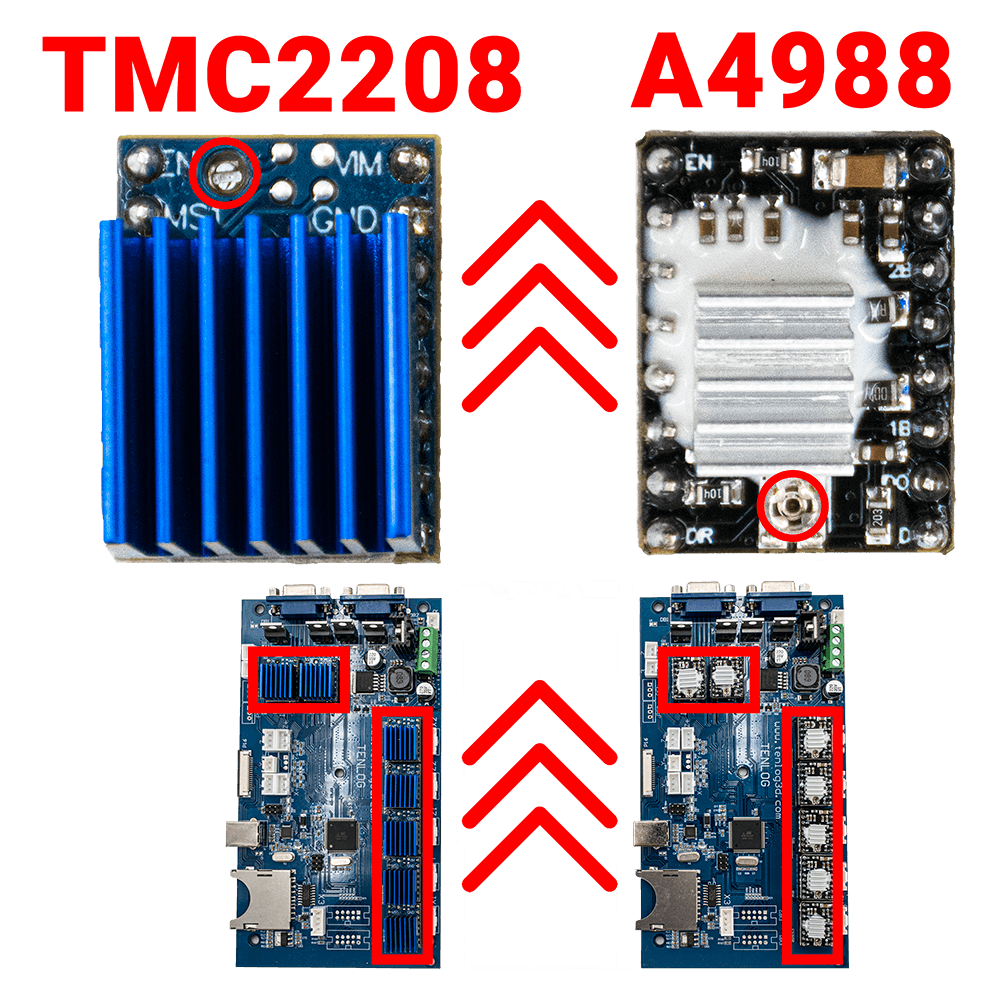

1. Please make sure that the drive module and motherboard are placed in the direction shown in the figure below. Please note the direction of the screws in the red circle⭕.

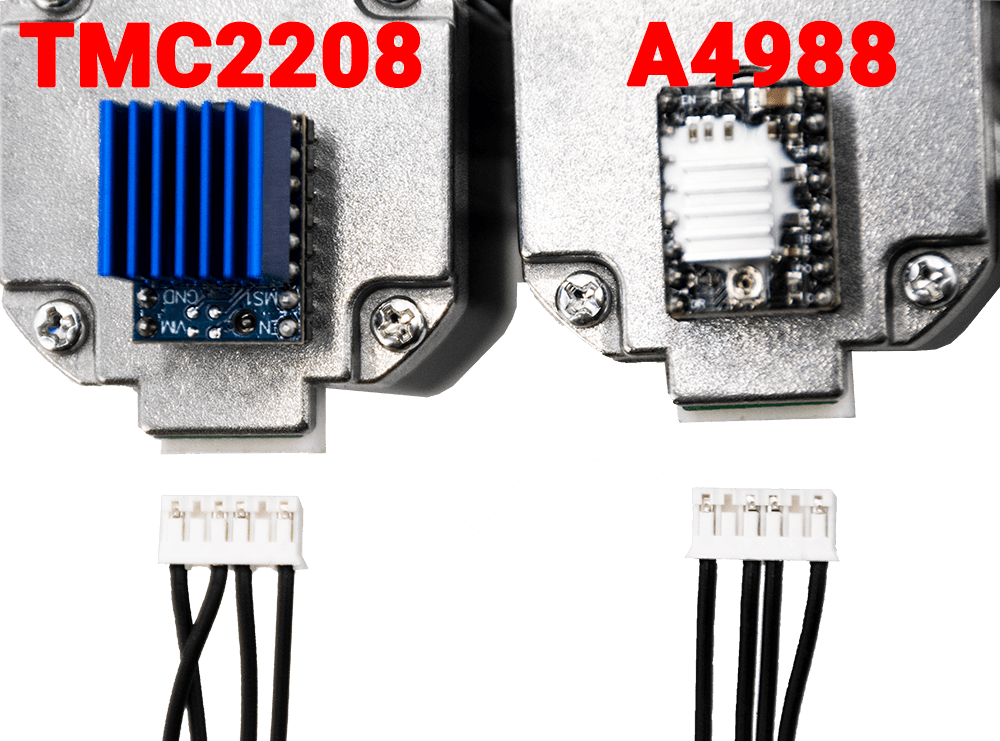

2. Change the wire sequence of the total 7 motors as shown in the figure below.
