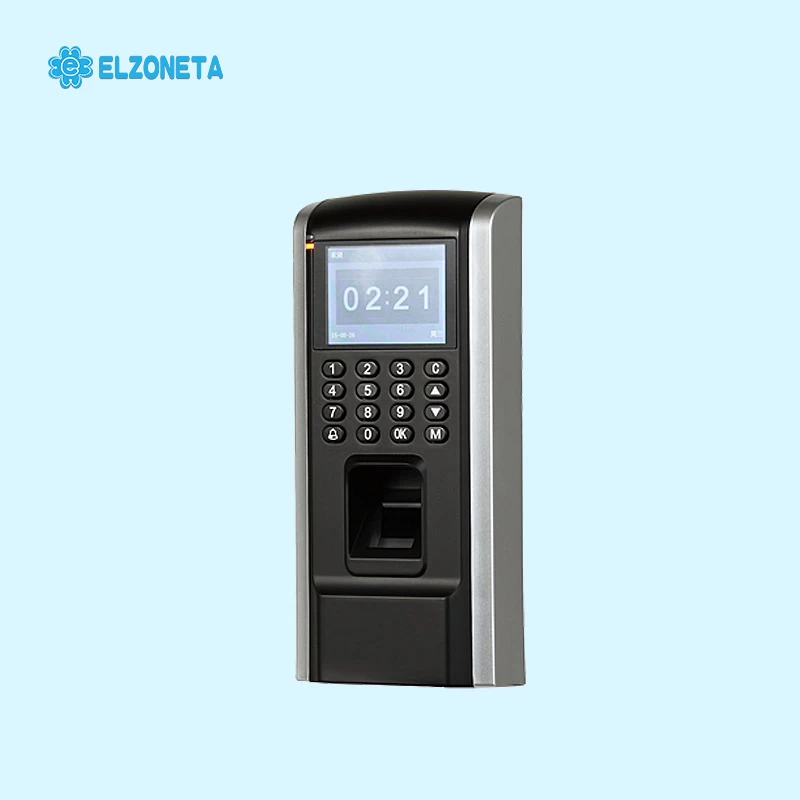

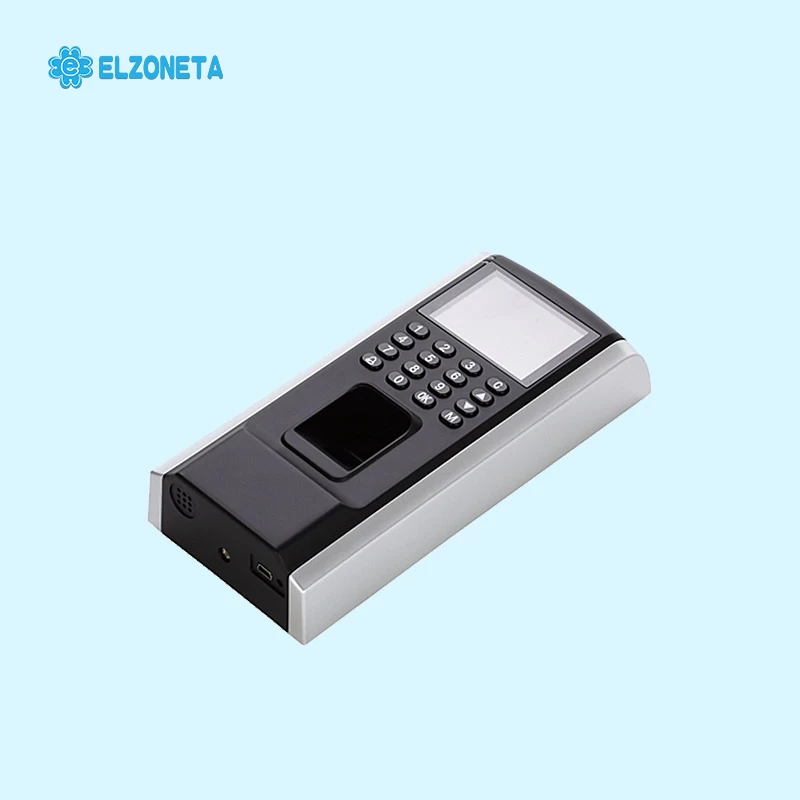

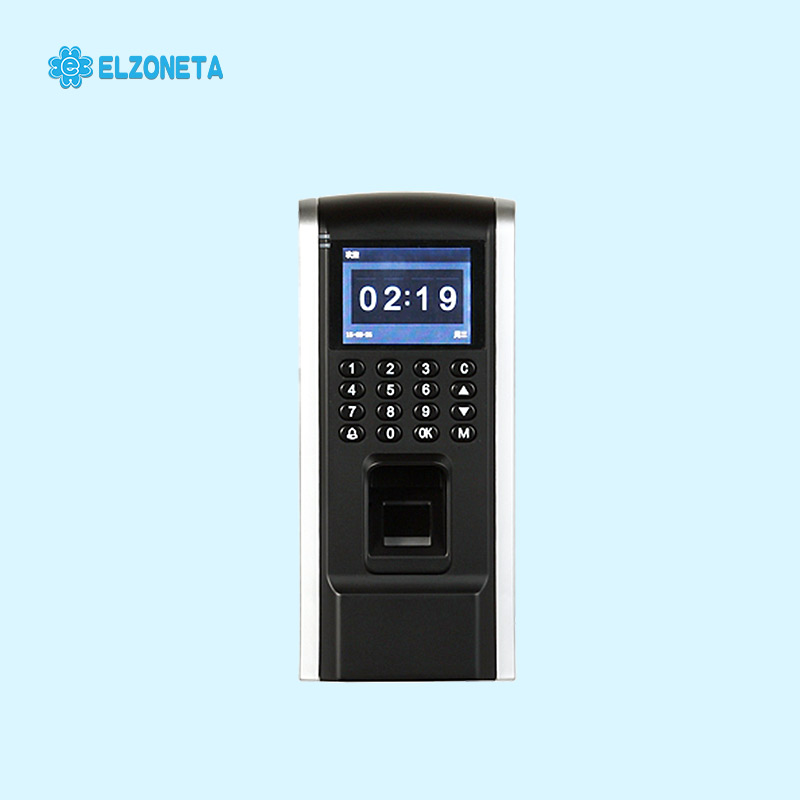

EC-ACS-TA02 Fingerprint Access Control Time Attendance
Features:
1. Access control / Time attendance
2. 1000 Fingerprint users, 1000 card users, 1000 PIN users
3. 100,000 event buffers
4. Wiegand 26bits input & output
5. Without voice guide
6. MOS output
7. When use as standalone access control, it should use the access control power supply (With NO, NC, and COM port power supply)
Specifications:
|
User Capacity
|
3000
|
|
Fingerprint
|
1000
|
|
Card
|
1000
|
|
PIN
|
1000
|
|
Operation
Voltage
|
+12V
|
|
Access Mode:
|
Fingerprint
,Card, PIN, Fingerprint & Card, Fingerprint & PIN
|
|
Fingerprint
Reader
|
Optical
Fingerprint Module
|
|
Resolution
|
500DPI
|
|
Identification
time
|
<1S
|
|
FAR
|
<0.0001%
|
|
FRR
|
<0.01%
|
|
Proximity Card
Reader
|
Industry
Standard 26 bits
|
|
Radio
Technology
|
125KHz
Industry Proximity EM Card
|
|
Read Range
|
2~7 cm
|
|
PIN Reader
|
1~8 digits PIN
|
|
Wiring
Connections
|

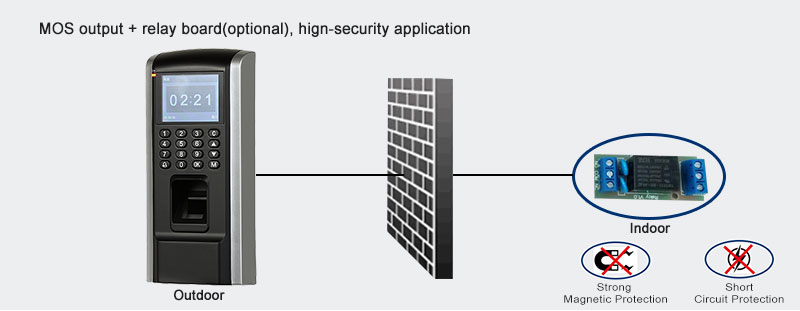

MOS Output,
Exit Button, DOTL, Alarm, Wiegand output,Wiegand Input, Door Bell
|
|
Communication
|

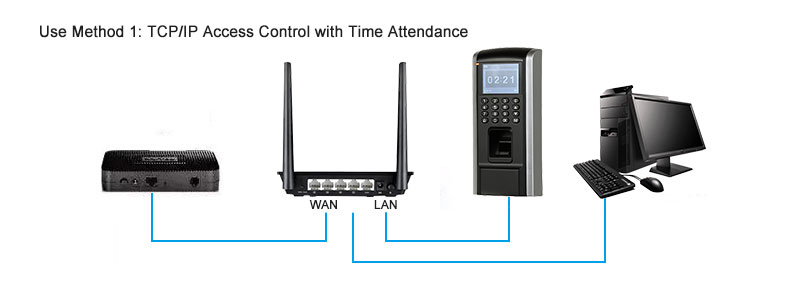

USB, TCP/IP

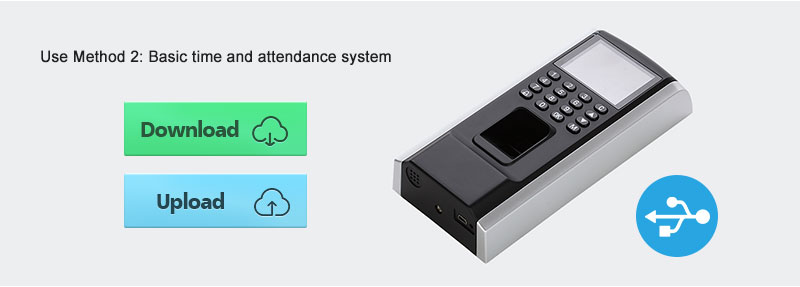

USB for downloading/uploading
|
|
Output
|
MOS
|
|
Adjustable
Open Time
|
1-99 Seconds
(5 seconds default)
|
|
Lock Output
Load
|
2 Amp Maximum
|
|
Alarm Output
Load
|
5 Amp Maximum
|
|
Wiegand
Interface
|
Wiegand 26
bits Input & Output
|
|
Environment
|
Indoor
|
|
Operating
Temperature
|
-20oC~+50oC
|
|
Operating
Humidity
|
20%RH-90%RH
|
|
Physical
|
ABS Enclosure
|
|

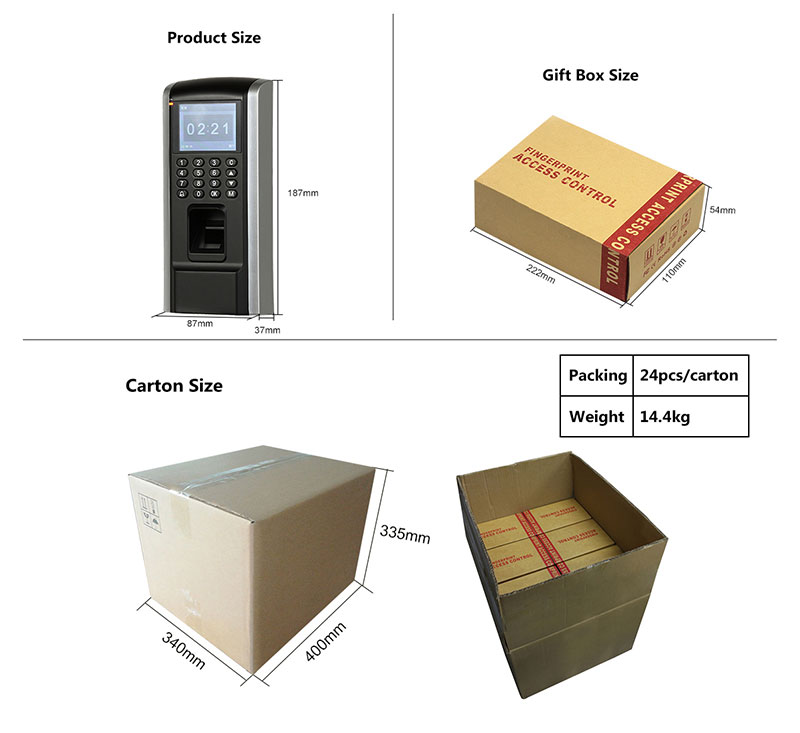

Dimensions
|
L187mm * W87mm
* H37mm
|
|
Unit Weight
|
400g
|
|
Shipping
Weight
|
600g
|
