P2 LED Display Video Features :
1.SMT led video display screen encapsulation ensure the wide 140 degree view angle and good uniformity
2.Combined with 4 layers driving PCB Board confirm stage led display screen rental good quality and long life time
3.Black body led lamps confirm the high contrast ratio,high definition
4. High refresh MBI 5124 /5153 ,ICN 2038S /2053 IC ensure high refresh rate and display vision,not stroble
5.Indoor LED display board Die-cast Aluminum material,keep strong configuration and good heat dissipation
6.Packed with led light display panel flight case,easy to collect and can move to anywhere
7.With fast locks and aviation plugs,easy to install and dismantle
8.Seamless splicing & good performance led moving message display
|

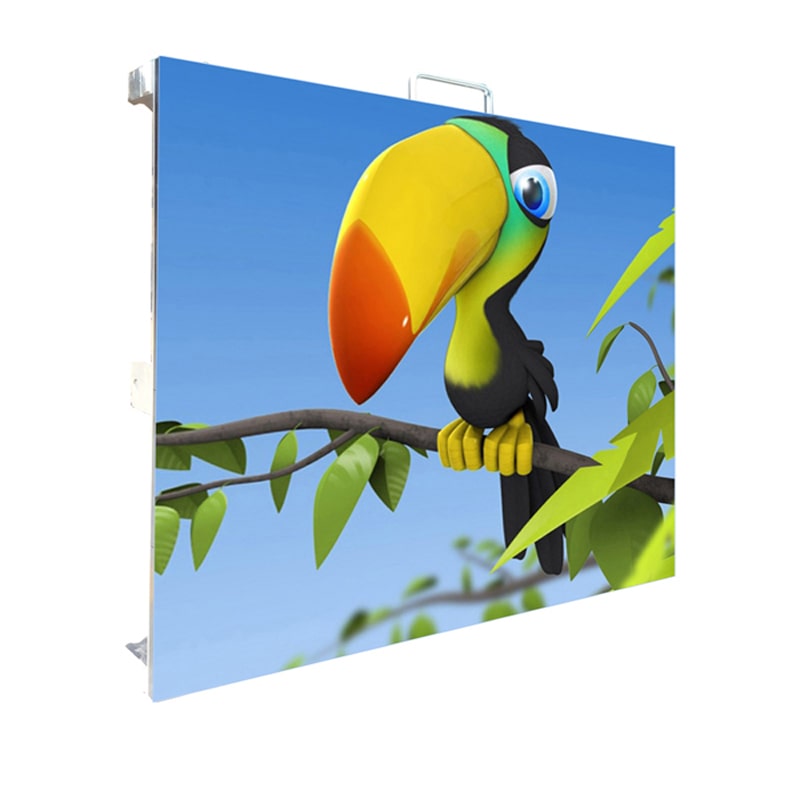

P2 Indoor Full Color Large LED Screen Specification
|
|
Pixel pitch
|
2mm
|
|
Pixel Configuration
|
1R1G1B
|
|
LED component
|
SMD1010 black or SMD1515
|
|
Size of module
|
256mm x 128mm
|
|
Resolution of module
|
128 x64 pixels
|
|

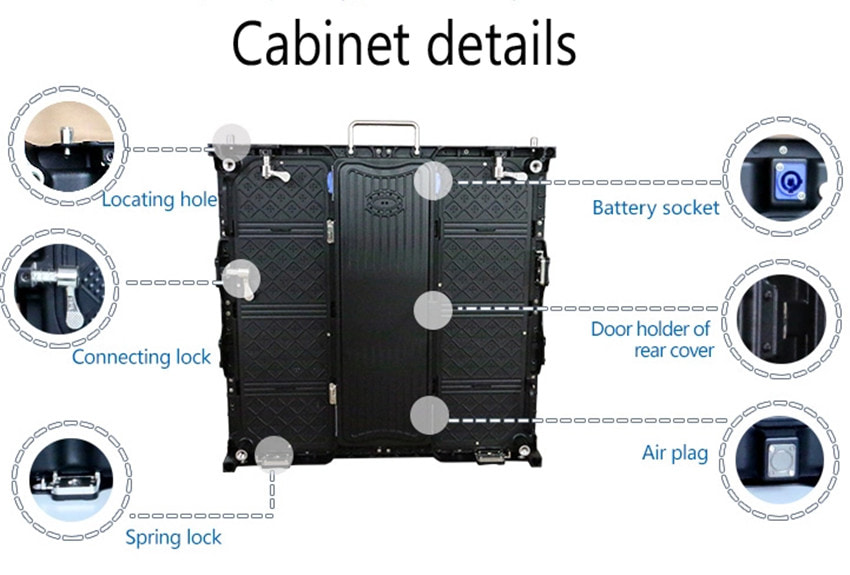

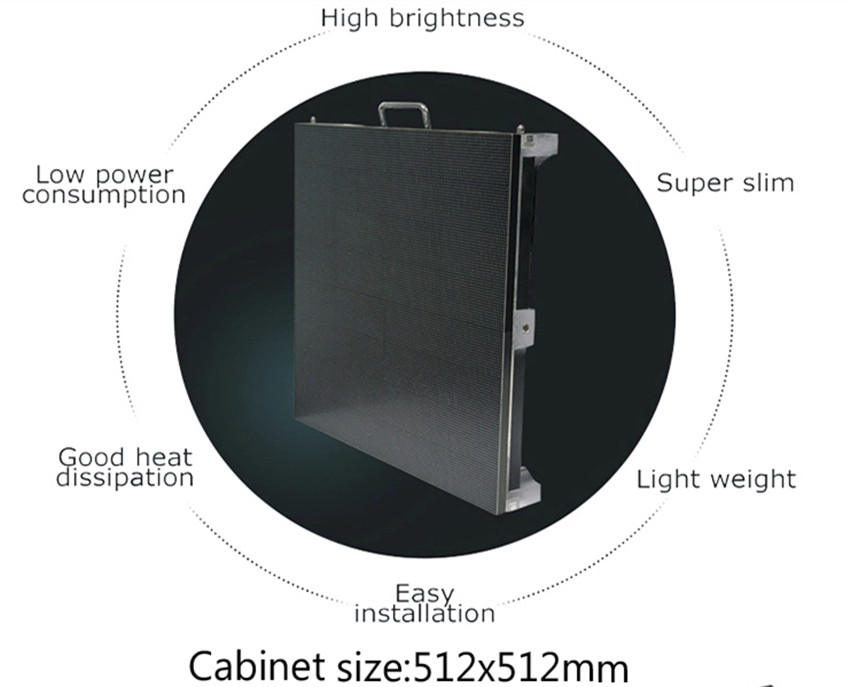

Size of cabinet
|
512mm x 512mm x 75mm
|
|
Resolution of cabinet
|
256 x 256 pixels
|
|
Material of Cabinet
|
Die-casting Aluminum
|
|
Weight of Cabinet
|
8.0 KGS
|
|
Brightness
|
800-1300cd/㎡
|
|
Density
|
250,000 dots/㎡
|
|
Best viewing angle
|
140 /140
|
|
Pixel Configuration
|
1R1G1B
|
|
Best viewing distance
|
2-20M
|
|
Maximum power consumption
|
600W/㎡
|
|
Average power consumption
|
300W/㎡
|
|
Driving method
|
1/32 scan
|
|
Control method
|
Synchronization control
|
|
Gray scale
|
65536
|
|
Colors
|
256 x 256 x 256
|
|
Color temperature
|
3200-9300k
|
|
Uniformity
|
97%
|
|
Working voltage
|
AC220V/110V±10%
|
|
Working temperature
|
—20℃~+50℃±10%
|
|
Working humidity
|
10％ ～ 90％
|
|
MTBF
|
10,000 hours
|
|
Frame frequence
|
60Hz
|
|
Refresh frequence
|
>3840Hz
|
|
IP grade
|
IP43
|
|
Life Span
|
100,000 hours
|
|
Data transafer method
|
RJ45
|
|
Pratical standard
|
CE, RoHS, FCC ,SGS ,TUV ,etc
|
|
Effectivce Communication
Distance(without relay)
|
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
|
|
Accepting signal with video processor
|
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
|
|
Systems operating platform
|
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
|
Why choose us :
1.High contrast and high image quality advertisement video wall stage display screen price
2.Smooth surface,Ultra high definition industrial RGB LED display board , high resolution brings delicate display effect
3.Wide color range, excellent color uniformity, no rainbow effect, broadcasting strong stability
4.Light weight,easy to assemble and dismantle
5.Maintenance can be a single point or single lamp
6.Equipped with intelligent lighting equipment and adaptive adjustment of environment, will not affect by the ambient light strong display effect and environmental protection and energy saving for Rental electronic LED Display giant led screen
7.Any direction, any size, any shape can be jointed presenting perfect seamless visual effect
8.Lease LED video screen with die-casting aluminum frame design, led panel TV screen is super light and thin, saving space and costs, fashionable and beautiful;Adopting die-casting aluminum improves the heat dispersion, prolonging the lifetime of the led display
