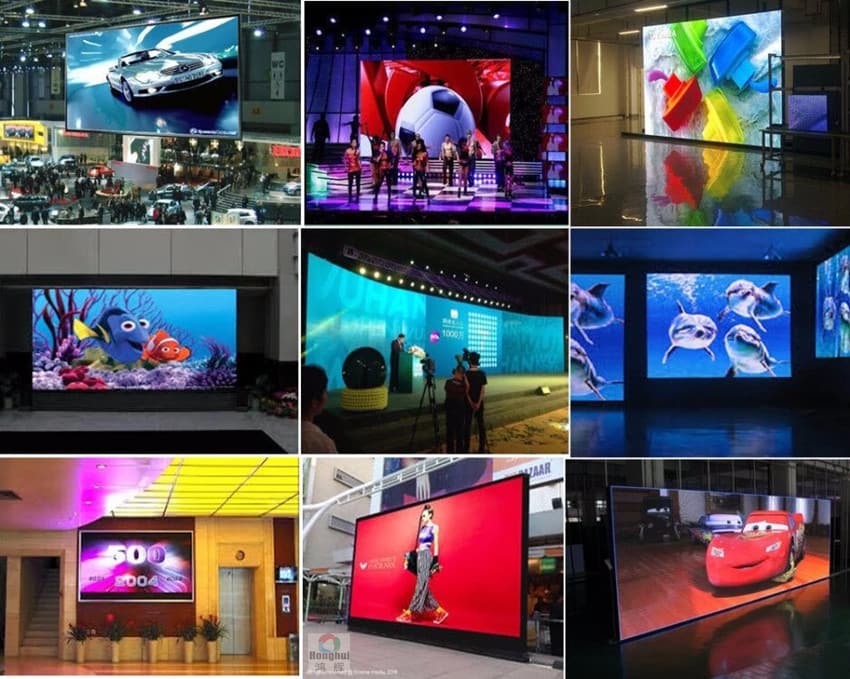

1.The led display technology of big full-color LED display video wall is composed of RGB trichromatic LEDs, 36 bit color can be shown, and the real-time, synchronous display all kinds of information, such as 2 d or 3 d animation, video, television and live streaming video content
2 .Led moving signs screen after use for a long time still can keep perfect quality and white balance and enough brightness, long life as a led video screen rental
3.LED optical design, high precision, the RGB led screen tricolor LED the far field of view perfect match, in order to make sure from any Angle can be the perfect reappearance of video picture for the led backdrop screen
4.The led advertising panel is High quality LED chips, anti static, high wavelength stability
5.Our led wall supplier advanced packaging equipment, guarantee the quality and life expectancy
6.Large wall screen has a large Angle, color uniformity, low failure rate and easy maintenance to reach the best led video wall
7.Electronic display system with Standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture

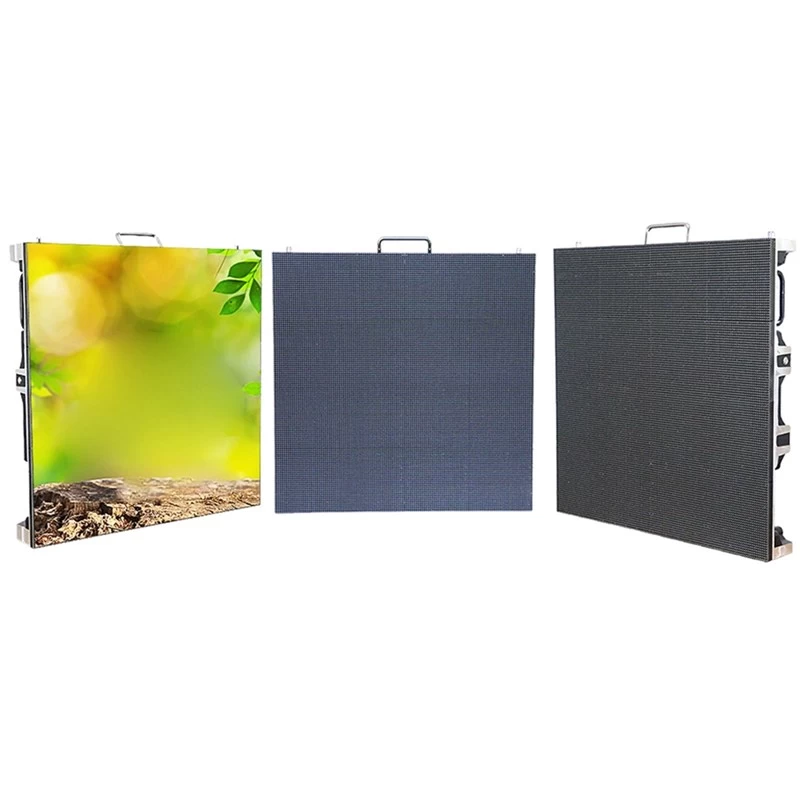

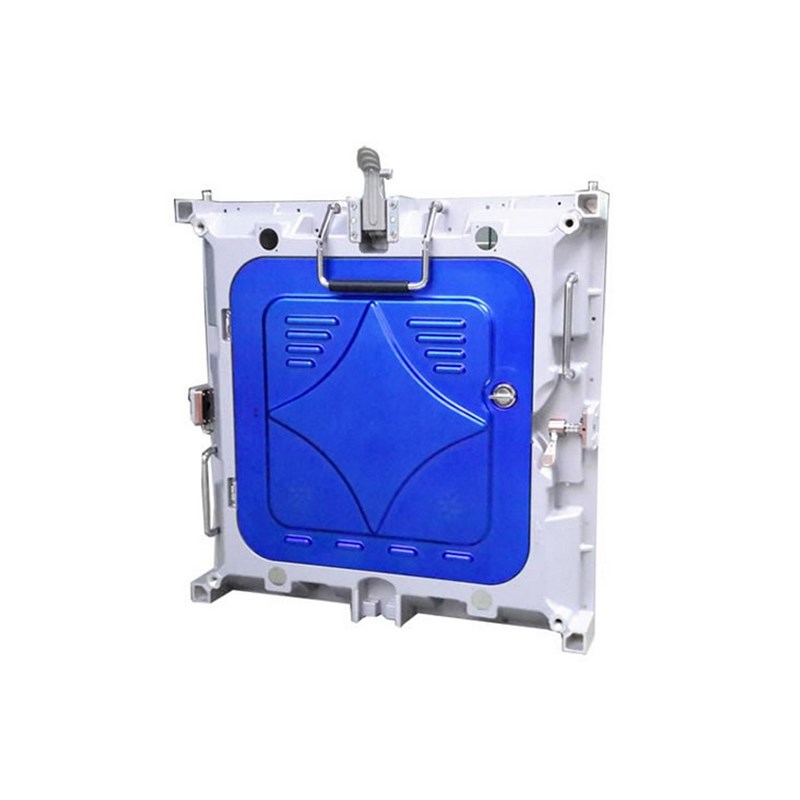

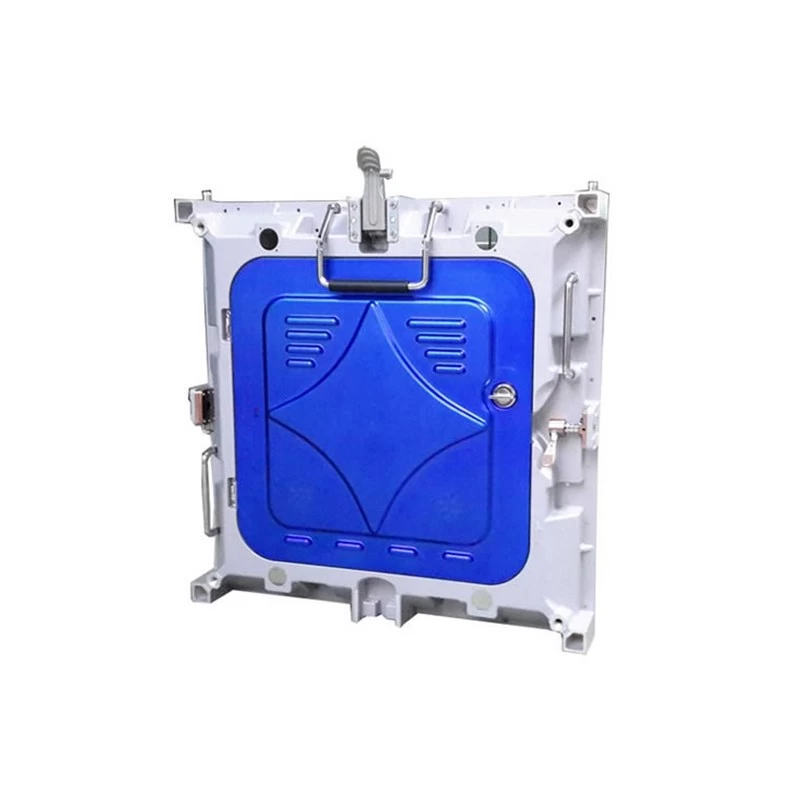

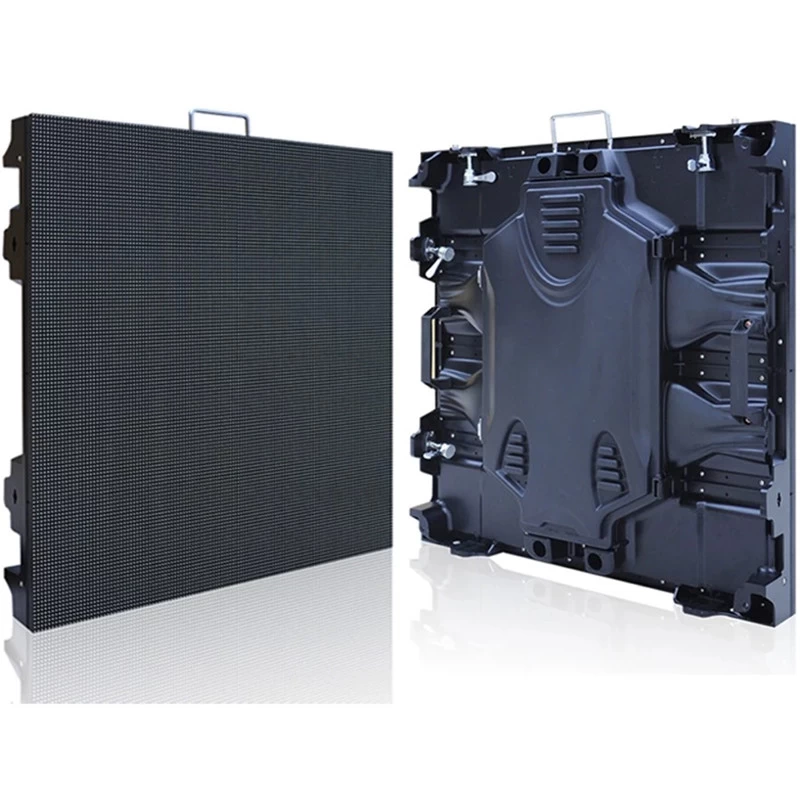

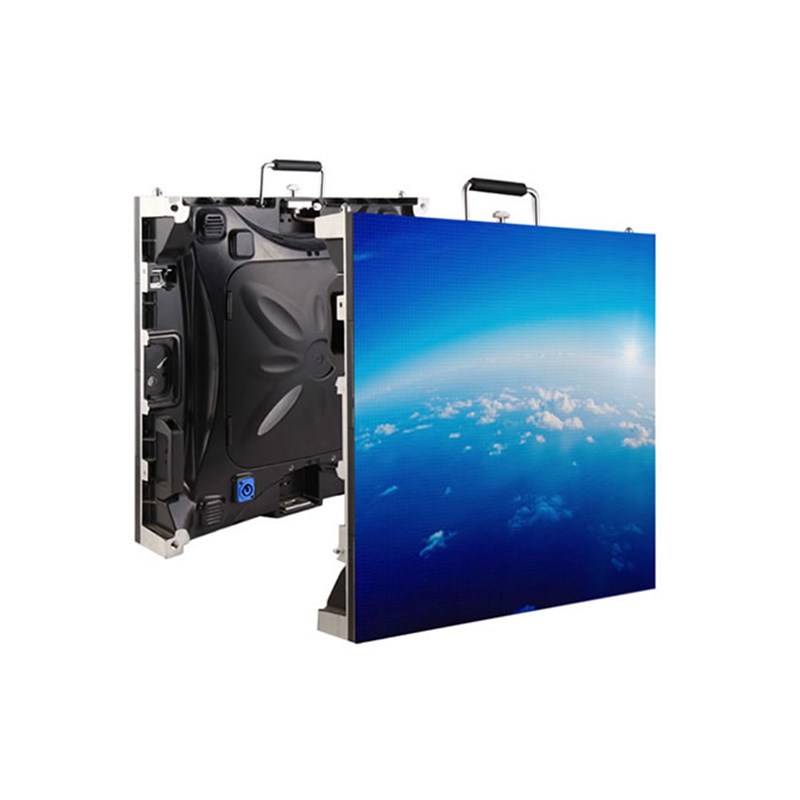

640*640mm Stage Rental LED Display Cabinet Specification:
|
LED Module
|
Pixel Pitch
|
P2.5 / P5mm
|
|
Pixel Configuration
|
SMD 2121
|
|
LED Lamp
|
King light /Nation Star
|
|
IC
|
5020 /5124 / 5153 /2037/ 2038 /2038S
|
|
LED Lamp
|
Cabinet size (W*H)
|
640MM*640MM
|
|
Cabinet material
|
Die-casting Aluminum
|
|
Cabinet weight (KG)
|
30 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight /Huidu /Sheen color
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
800-1500 cd/m²
|
|
Best viewing distance
|
3-30 m
|
|

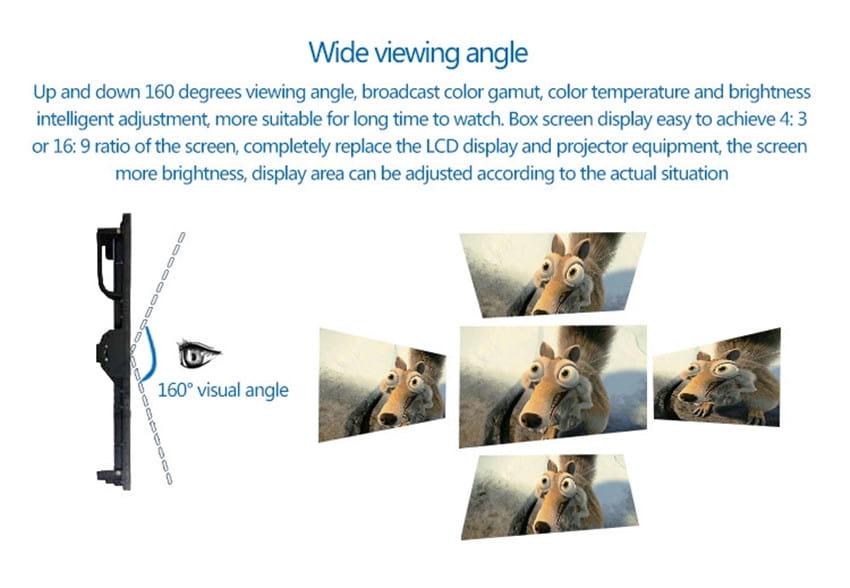

Viewing angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
100,000 Hours
|
|
Working Voltage
|
Working Voltage
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
Front side /Back side
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m- 10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
