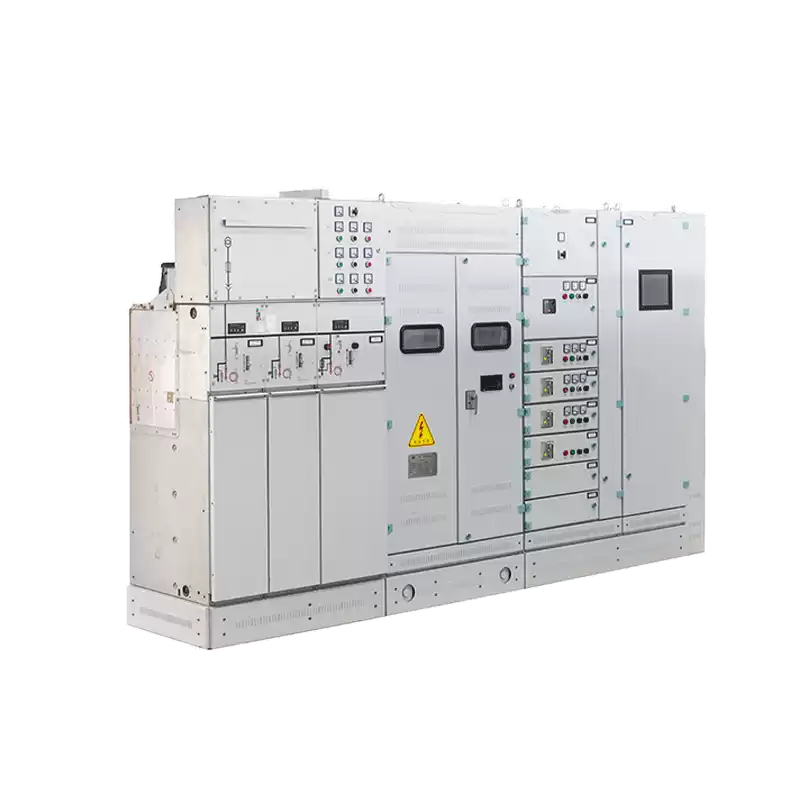

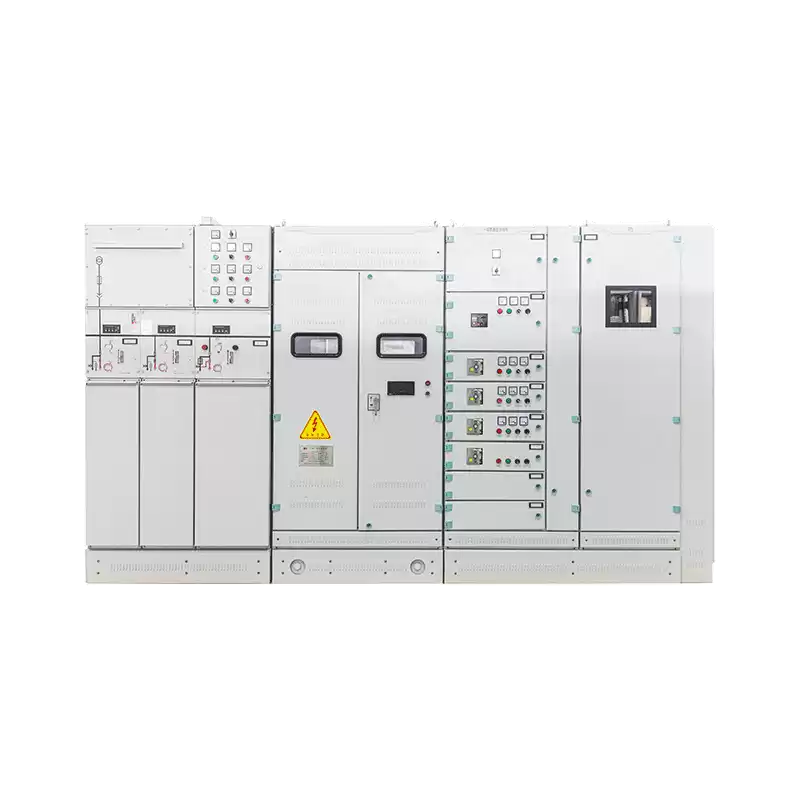

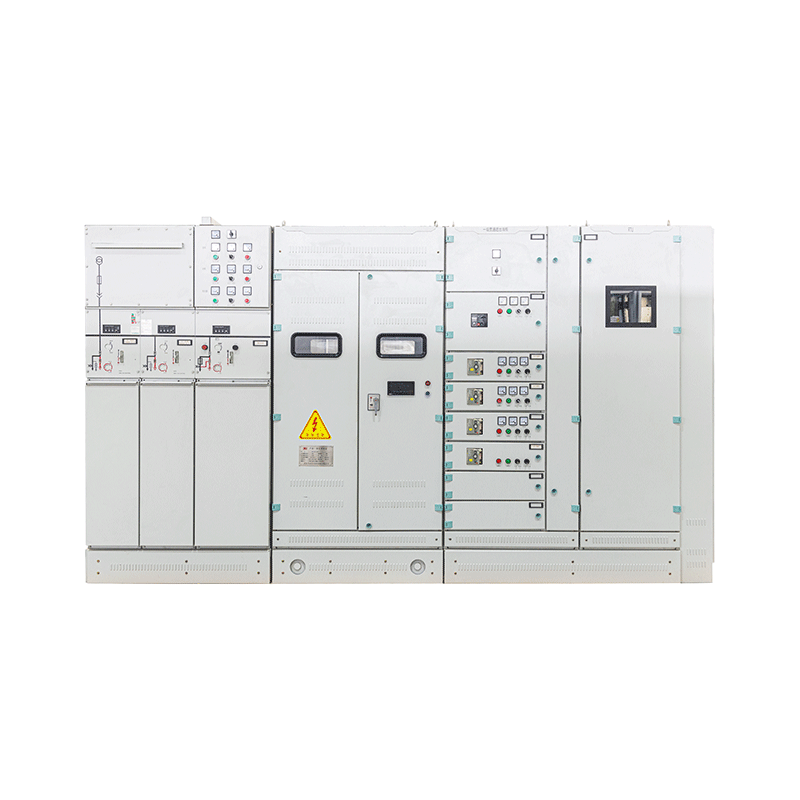

Indoor Integrated Substation YBT-10/0.4

The YTB/10-0.4 indoor integrated substation is a modular 10kV distribution switchgear designed specifically for railway applications. It ensures reliable power distribution, minimizing the risk of electrical failures in tunnel and trackside environments. Ideal for powering signaling, communication, and lighting systems, this substation offers both primary and backup power options, enhancing the stability and reliability of railway infrastructure.

Facebook Twitter Pinterest LinkedIn 分享







  • YBT-10/0.4 Indoor Integrated Substation Features
  • #
    Efficient and Easy Installation
    The modular design allows for quick transport and assembly within a day. Factory-preinstalled components, including electrical testing and RTU configuration, minimize on-site work and downtime.
  • #
    Durability and Protection
    Built with a Siemens 8PT design, the substation uses high-quality galvanized steel for a compact and durable structure, offering an IP40 or higher protection rating. The base is hot-dip galvanized and powder-coated for added strength.
  • #
    Safety and Expandability
    The substation ensures safety with separate channels for high, medium, and low voltage circuits. It includes fire safety features like smoke sensors and optional fire suppression systems. The transformer section supports up to 100KVA for future expansion.
  • #
    Advanced Monitoring and Control
    The RTU system features a touchscreen interface that displays real-time system status, electrical parameters, and remote control capabilities for efficient monitoring and maintenance.
  • #
    Reliable Grounding and System Integrity
    Easy-to-connect grounding facilities with copper busbars ensure electrical continuity and safe operation for reliable system performance.

















  • Specifications



Item Value
Rated Voltage(HV Cabinet) 12kV (GB/T11022)
Rated Voltage(LV Cabinet) 0.4/0.23kV (GB/7251.12)
Number of Phase 3-Phase(or Single Phase) (GB/T11022)
Maximum Rated Capacity of the Substation ≤160kVA
Noise Level ≤50dB(Indoors) (GB 1094.10)
Rated Insulation Level of HV Switchgear
(Dry Withstand Voltage of External Insulation)		 Rated Short-Time Withstand Voltage General Value 42kV
Isolation Breaker Gap 48kV
Rated Lightning Impulse Withstand Voltage General Value 75kV
Isolation Breaker Gap 85kV
HV Connection Cable Power-Frequency Withstand Voltage 22kV/5min
Test Voltage of Main LV Circuit
(Dielectric Test Voltage (RMS Value of AC))		 60<UI≤300 1500V
300<UI≤690 1890V
Test Voltage of Auxiliary Circuits Not Directly Supplied by the Main Circuit UI≤12 250V
12<UI≤60 500V
UI>60 2Ui+1000, Minimum1500
Rated Frequency 50Hz (GB 1094.1)
Rated Current of HV Switchgear 630A/125A (GB/T11022)
Rated Current of HV Transformer Equipment and Connecting Line ≤125A (GB/T17467)
Rated Current of LV Switchgear/Motherline/Infeed Line/Feeder Line ≤800A (GB 7251.1)
Rated Short-Circuit Withstanding Current(Ik) High Voltage 25kA (GB 7251.1)
Low Voltage 30kA （GB/T11022）
Grounding Circuit 25kA
Rated Peak Withstanding Current(Ip) High Voltage 63kA
Low Voltage 63kA
Grounding Circuit 40kA
Rated Short-Circuit Duration Time High Voltage 4s
Low Voltage 1s
Grounding Circuit 3s
Rated Supply Voltage for Closing and Opening Devices, Auxiliary and Control Circuits(Ua) 220V AC(DC)
12/24/220V AC(DC)















  • Application Scenarios



Railway Power Distribution

Railway Tunnels and Trackside Equipment

Signal and Communication Systems

Transformer and Substation Integration
