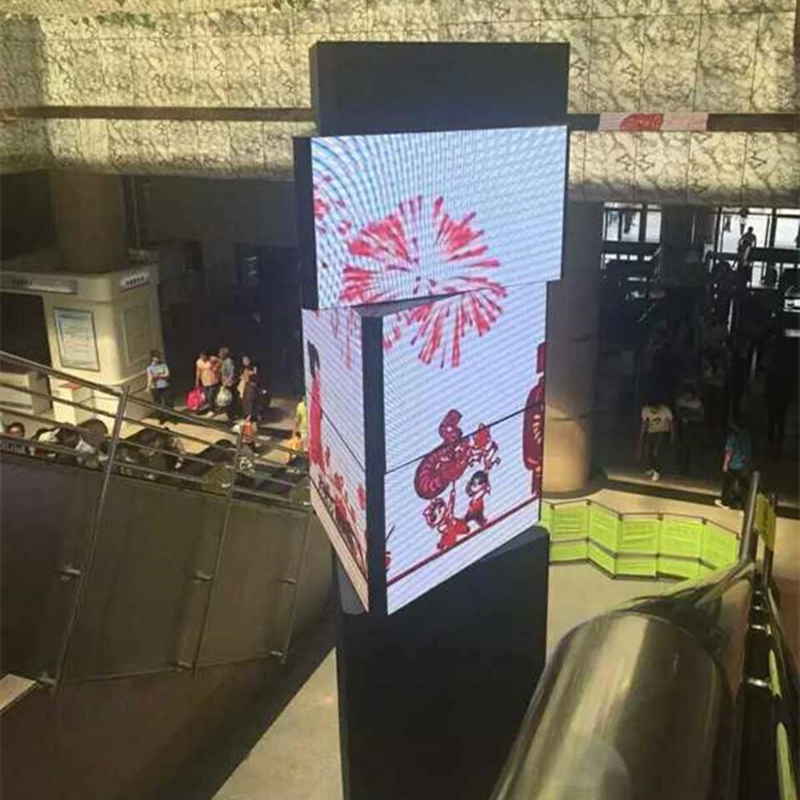

Indoor Customized Design LED Video Wall
|
|
LED Module
|
Pixel Pitch (mm)
|
P2 Indoor
|
P2.5 Indoor
|
P3 Indoor
|
P4 Indoor
|
P5 Indoor
|
P6 Indoor
|
|
Pixel configuration
|
SMD 1515
|
SMD2121
|
SMD2121
|
SMD2121
|
SMD2121
|
SMD3528
|
|
LED lamp
|
Nation Star / Kinglight
|
|
IC
|
MBI 5124 / ICN 2038S
|
|
Scan
|
1/32 S
|
1/32 S
|
1/32 S
|
1/16 S
|
1/16 S
|
1/16S
|
|
Module size
|
128*128mm
|
160*160mm
|
192*192mm
|
256*128mm
|
320*160mm
|
192*192mm
|
|
Module resolution (pixel）
|
64*64 pixel
|
64*64 pixel
|
64*64 pixel
|
64*32 pixel
|
64*32 pixel
|
32*32 pixel
|
|
Pixel density (dots/m2)
|
250,000
|
160,000
|
111,111
|
62,500
|
40,000
|
27,777
|
|

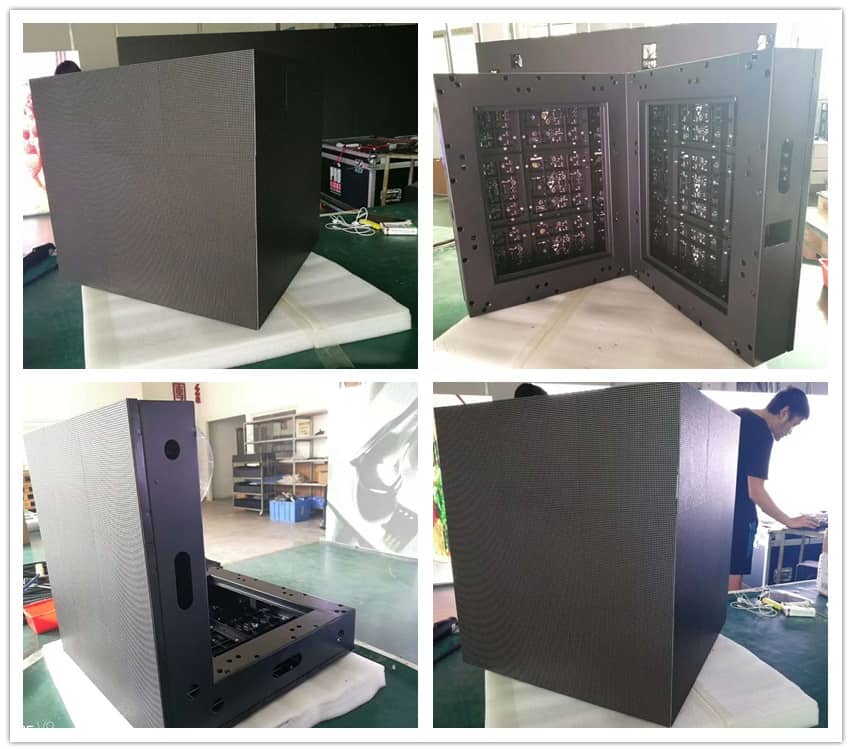

LED Cabinet
|
Cabinet size (W*H)
|
512*512mm
|
640*640mm
|
576*576mm
|
768*768mm
|
960*960mm
|
960*960mm
|
|
Cabinet resolution (W*H)
|
256*256
|
256*256
|
192*192
|
192*192
|
192*192
|
160*160
|
|
Cabinet material
|
Iron / Aluminum
|
|
Cabinet weigt (KG)
|
Iron : 35kg/m2 Aluminum : 30 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
800-1300cd/m2
|
|
Best viewing distance
|
2-20 m
|
3-20m
|
3-20m
|
4-50m
|
5-50m
|
6-50m
|
|
Viewing angle
|
140° W ; 140 °H
|
|
IP grade
|
IP43
|
|
Life span
|
96,360 hours
|
|
Working Voltage
|
AC 220V/110V±10%
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
front/back
|
|
Average power consumption
|
300 W / m2
|
|
Max power consumption
|
600 W / m2
|
|
Operating Temperature
|
–30℃~+60℃ 10%~95%RH
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m- 10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
Outstanding Feature :
1.Enery-saving
2.Easy installation
3.Environmental protection
4.Refresh can reach 3840Hz
5.Using high reflesh IC, better viewing effect
6.Passed highest /lowest temperature testing
7.Larger viewing angle: Horizontal angle 160 degree, Vertical angle 140 degree
8. Equipped with intelligent lighting equipment and adaptive adjustment of environment, will not affect by the ambient light strong display effect and environmental protection
9. Any direction, any size, any shape can be jointed presenting perfect seamless visual effec
10.LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors
11.Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on
12.Power supply: industrial-strength brand.The power maximum power resere of 20% the space ,the range of voltage fluctuation is less 5%, high stability
13.PCB Board: adopt 4-layer design
