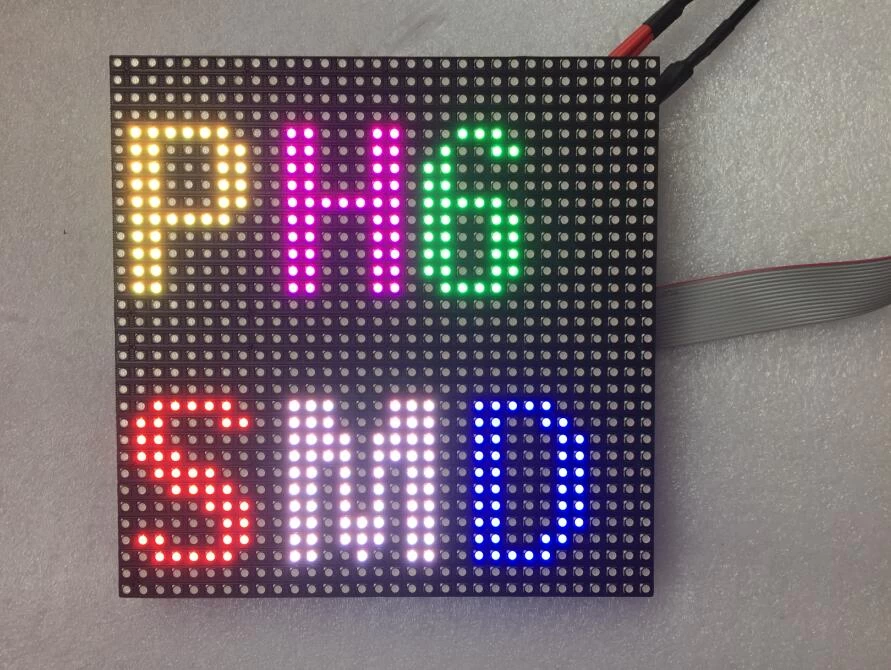

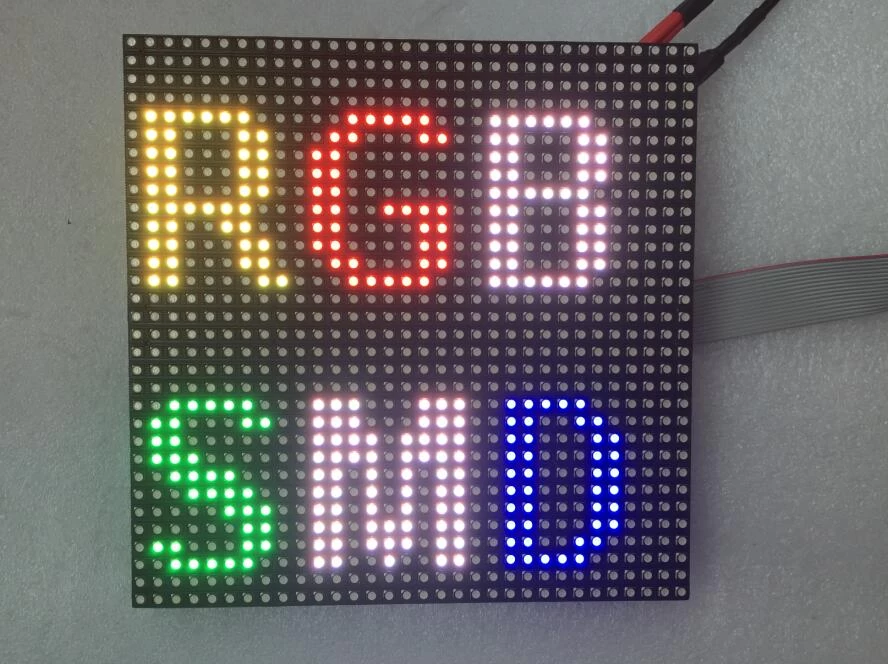

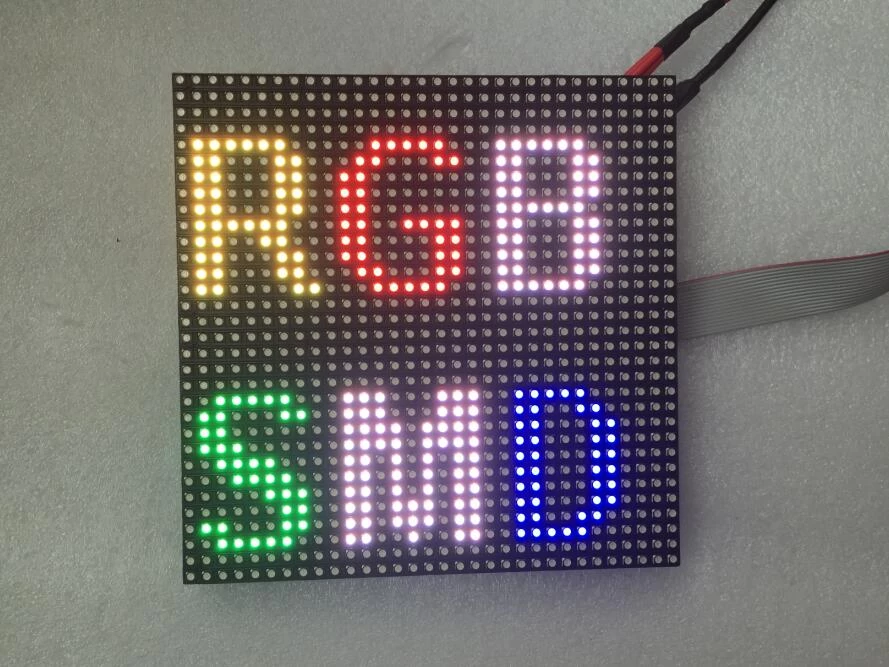

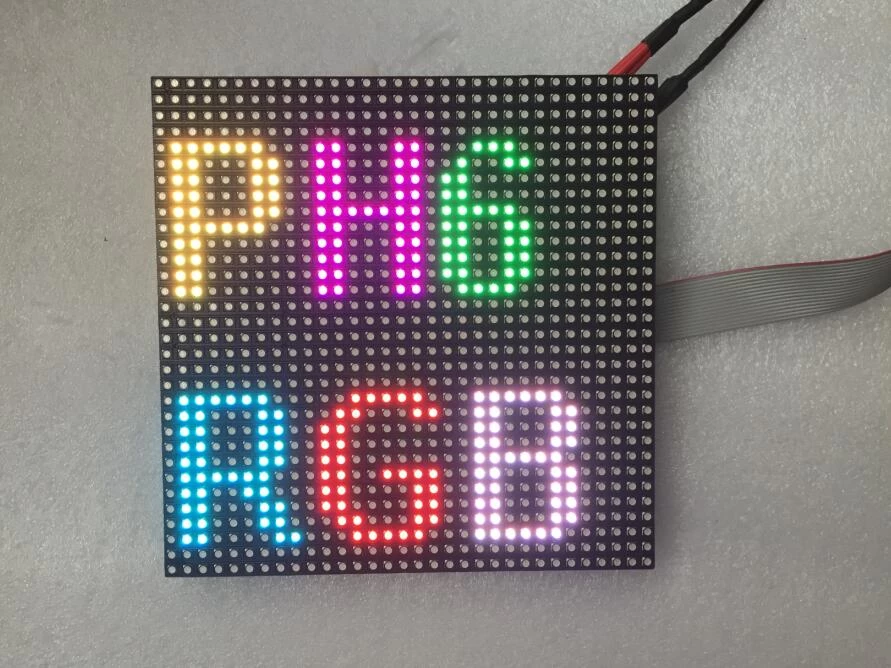

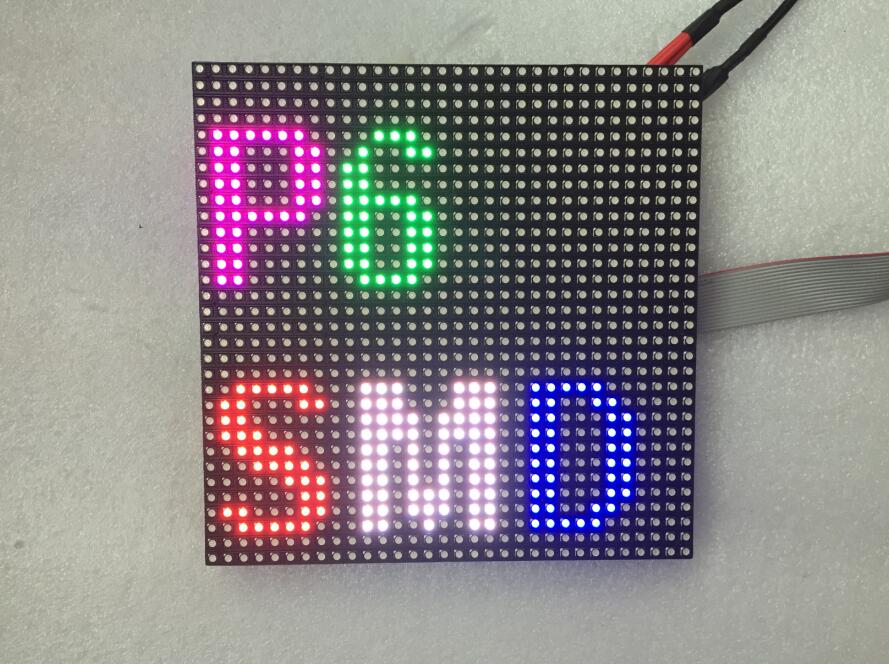

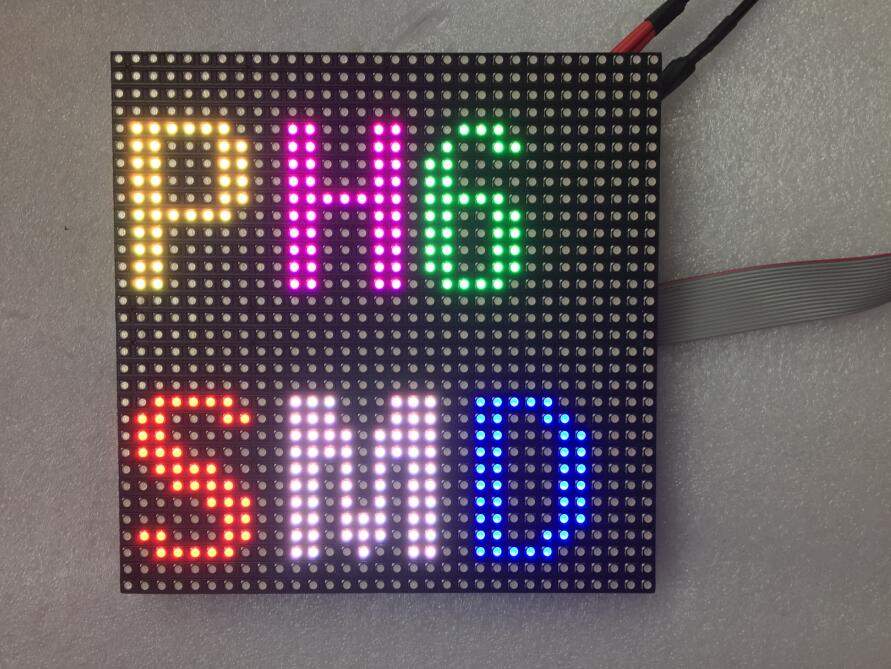

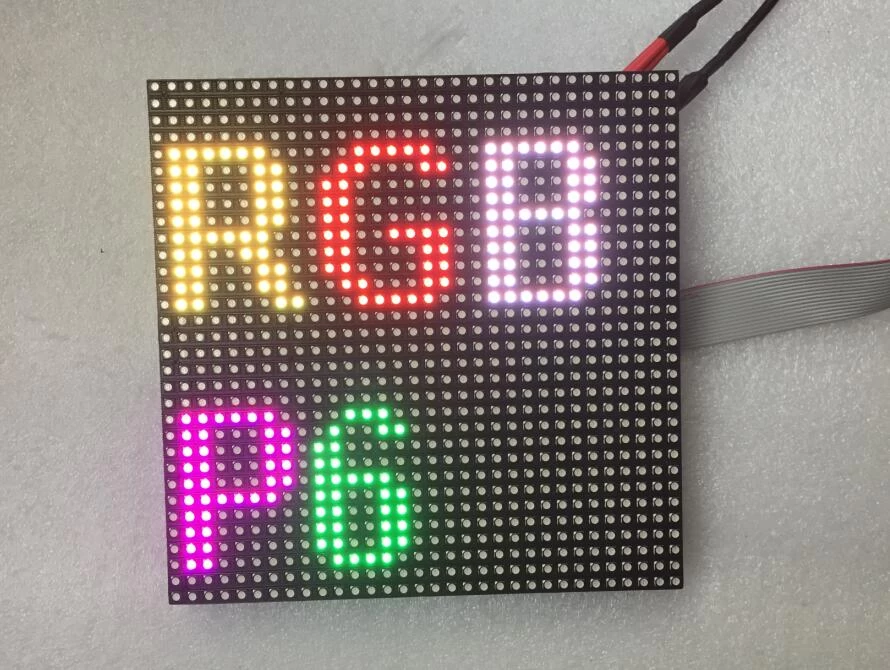

Indoor P6mm 32x32dots SMD3528 LED Display Module
With 40000dots per square meters of Indoor Full color LED Display panel PH5, of which the pixel size is 5mm. The grayscale of each is 16384, and 16,777,216 kinds of colors in total. Dynamic scanning technology is adopted to ensure the purity and stability of picture effects, the precision of display effect and variety of animation; cabinets are made of aluminum alloy, so it's much lighter and better heat dissipation system. On the other hand, LED panel can display text, pictures, animation as well as video.
1. LED Module Including the Data & Power Cables.
2. Nationstar Epistar LEDs, 5 Years Warranty, Ship in 72 hours, Free Online Support.
3. LED Module Can Work With Novastar, Colorlight, Xixun, Linsn LED Conrol Card Etc.
Nationstar SMD Gold Wire LED Chips
CREE DIP SMD Gold Wire LED Chips
OSRAM DIP SMD Gold Wire LED Chips
NICHIA DIP SMD Gold Wire LED Chips
Epistar DIP SMD Gold Wire LED Chips
LED Lamp SMD3535 SMD3528 SMD2727 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
EMC CE UL LINSN Colorlight Novastar Controller Cards
UL EMC CE FCC OMRON Siemens ABB Meanwell PSU
4 Layer PCB Board (Three Anti-Paint)
Driving IC MBI5124 MBI5153 MBI5359
Driving IC ICN2038S ICN2153
P5 LED Video Wall Display Module Datasheet
|
Model
|
LEEMAN DISPLAYLED-P6LED ModuleI-32X32
|
|
1.LED
|
|
Color
|
Package
|
Intensity
|
View Angle
|
Wavelength
|
Test Cond.
|
|
Red
|
SMD 3528
|
150mcd
|
160/140
|
640nm
|
25℃,20mA
|
|
Green
|
SMD 3528
|
400mcd
|
160/140
|
550nm
|
25℃,20mA
|
|
Blue
|
SMD 3528
|
100mcd
|
160/140
|
490nm
|
25℃,20mA
|
|
2.LED Module
|
|
Resolution
|
32(H)×32(V)
|
|
Pitch
|
6mm
|
|
Density
|
27778 pixels/㎡
|
|
LED Arrangement
|
SMD3528
|
|
Driver Mode
|
Dynamic 1/8 Duty constant current
|
|
Size
|
192mm×192mm
|
|
Mask
|
Pure Black mask-high contrast screen
|
|
3.Electricity Parameter
|
|
Optical Ratings
|
|
Brightness
|
≥2500cd/㎡
|
|
View Angle
|
160 degree ( horizontal) 140degree(vertical)
|
|
View Distance
|
5m-60m
|
|
Gray Scale
|
8bits input, correction with 16bits
|
|
Display Color
|
16.7M
|
|
Brightness Adjustment
|
100 levels
|
|
Power Supply
|
|
Operation Power
|
AC100-240V 50-60HZ Switch-able
|
|
Maxim Power Consumption
|
700 W/m2
|
|
Average Power Consumption
|
400 W/m2
|
|
Control System
|
|
Correction Scale Level
|
16bits
|
|
Frame Update Frequency
|
60Hz
|
|
Screen Refresh Frequency
|
1920Hz
|
|
Gamma Correction
|
-5.0—5.0
|
|
Support Input
|
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
|
|
Control Distance
|
Ethernet cable 100m, optical fiber 5km
|
|
Support VGA Mode
|
800×600,1024×768,1280×1024,1600×1200
|
|
Color Temperature
|
5000-9300 adjustable
|
|
Brightness Correction
|
dot by dot, module by module, cabinet by cabinet
|
|
Reliability
|
|
Operating Temp.
|
-20-60 Celsius degree
|
|
Operating Humidity
|
10-95% RH
|
|
Operating Life
|
100,000 hours
|
|
MTBF
|
50000 hours
|
|
Continuous Working Time
|
≥72 hours
|
|
Protection Level
|
IP54
|
|
Out of Control Pixel Rate
|
0.01%
|
|
Video Controller Card
|
Novastar Sending Card
Novastar Receiving Card
|
|
Control Card System
|
Linsn Sending Card
Linsn Receiving Card
|
|
Video Card Software
|
Colorlight Sending Card
Colorlight Receiving Card
|
|
VDWALL Video Processor
|
VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI
|
|
UL CE ROHS EMC PSU
|
Meanwell Power Supply source
OMRON Siemens ABB Power Switch
|
|
Software System
|
LEEMAN DISPLAYLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED
|
|
LED Lamp
|
SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
|
|
DIP Lamp
|
RGB546 RGB346 RGB570 3in1
|
|
Gold Wire LED Chips
|
LEEMAN DISPLAYLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT
|
|
Driving IC
|
MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153
|
|
LEEMAN DISPLAYLED PCB
|
4 Layer PCB Board
|
|
Packaging Materials
|
Flight Case Wooden box
|
