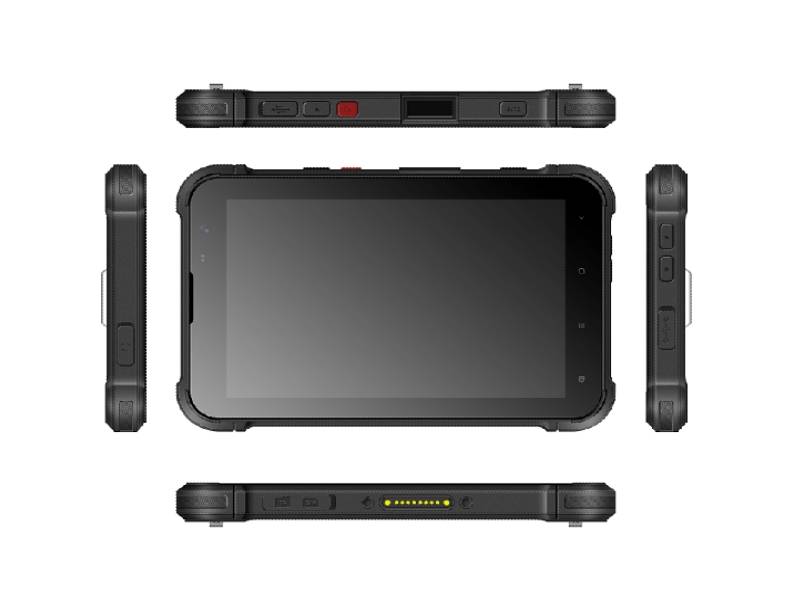

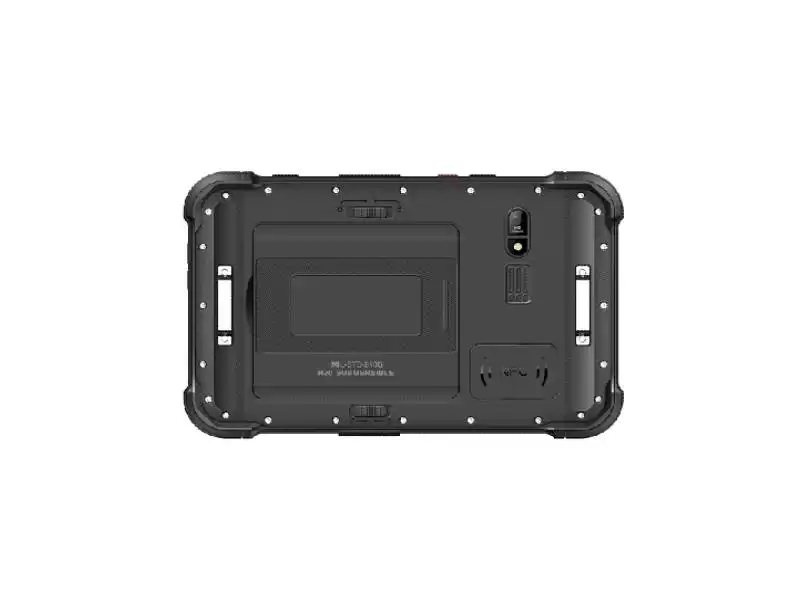

TPC-MTK6765 8” Rugged Tablet PC
Product Introduction
Rugged tablets often come with built-in features like barcode scanners and RFID readers, making them valuable tools for asset management, inventory control, and logistics.
| Physical Parameter |
option |
| Design |
Tablet |
|
| Keys |
7 (ptt,scanner, power, Customiztion1;2, volume+, volume-) |
|
| Size |
225*146*21(MM) |
|
| Weight |
about 750g (including battery) |
|
| Colour |
Black/Black+yellow |
|
| Performance Parameter |
|
| OS |
Android 12.0 |
|
| CPU |
MTK6765V |
|
| RAM+ROM |
4+64 |
6+128 |
| Display |
8 inch IPS, resolution: 1280*800 ( Option: 1000NT) |
FHD(1280*1960) |
| Touch Screen |
Capacitive touch screen, Multi-touch support |
|
| Camera |
Front: 5.0M, auto focus |
8.0M |
| Rear:13.0M, PDAF, flashlight |
16M、21M |
| Charge/communication interface |
Type C interface, support USB2.0, support OTG |
high speed transmission |
| Memory extension |
Support Micro SD card, up to 128GB |
|
| SIM slot |
SIM1 slot and SIM2 slot Or (SIM card and T-Flash card) |
|
| Battery |
3.85V, 8000mAh |
|
| Speak |
|
|
| Microphone |
Support, built-in double SMT mic,noise reduction |
|
| Vibrating Alert |
Support, built-in SMT vibration motor |
|
| Notification |
Vibration, voice |
|
| Communication Parameter |
|
| WIFI |
Built-in wifi antenna, dual frequency 2.4G (2402-2482 MHz), 5.8G (5180-5825 MHz), IEEE 802.11a/b/g/n |
|
| Bluetooth |
Built-in Bluetooth antenna, CLASS 2 power, BT5.0 LE standard, 2402-2480 MHz |
|
| WAN |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28; |
|
| LTE-TDD:B34/B38/B39/B40/B41; |
|
| WCDMA:B1/B2/B5/B8; |
|
| GMS: 850/900/1800/1900 |
|
| Optional Functions |
|
| NFC |
Basic configuration, built-in antenna; NXP chip, support ISO/IEC 14443 A, ISO/IEC 14443 B, MiFare S50, S70, reading distance 0-5cm, depending on tag types |
|
| Bar code Scanner (zebra se4710 or Honeywell 5703) |
2D, Support bar code type: |
|
| UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post |
|
| 2D Stacked: PDF417, MicroPDF417, GS1 Composite |
|
| 2D Matrix: Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code |
|
| Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code |
|
| OCR Option: OCR-A, OCR-B, E13B (MICR) |
|
| Working Environment |
|
| Working temperature |
-10℃～+50℃ |
|
| Storage temperature |
-20℃～+60℃ |
|
| Working humidity |
<90％RH |
|
| Storage humidity |
20％ ～93％RH(40℃) |
|
| Atmospheric pressure |
86Kpa～110Kpa |
|
| Accessories |
|
| USB cable |
USB2.0, |
|
| Charge |
support |
|
| Others |
User Manual, Warranty Card |
|
| VESA |
support |
|
| IP67 |
|
Product Features
■Rugged tablets are designed to withstand harsh conditions, including drops, shocks, vibration, and exposure to dust and water.
■The integration of 5G connectivity ensures high-speed data transfer, low latency, and improved network reliability.
■Rugged tablets running on Android can leverage a variety of productivity apps from the Google Play Store.
■Android's open-source nature allows for greater customization and flexibility. Organizations can tailor the operating system to meet specific needs, integrating business apps and tools seamlessly.
■Rugged tablets often come equipped with large-capacity batteries to ensure extended usage in the field without frequent recharging.
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
