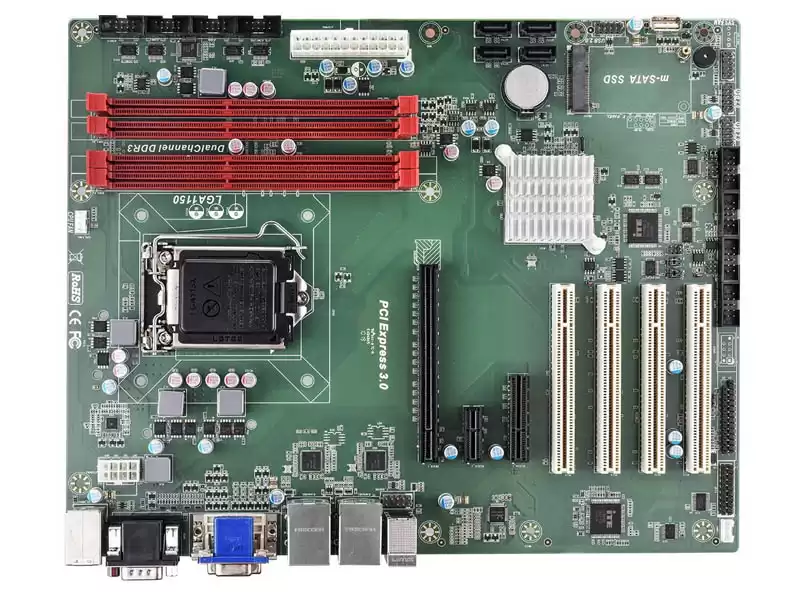

Industrial ATX Motherboard H81 Chip with 7-Slot(4PCI 3PCIE) Expansion, Support LGA1150 4th intel core CPU
Product Introduction
High performance industrial ATX motherboards support a wide range of computing capacities, rich I/Os and expansion slots.
| System |
| CPU/GPU |
Supports LGA1150 architecture 4th generation Intel® Core™ processors i7 / i5 / i3, Pentium® / Celeron® CPU |
| System on Chip |
Intel@ PCH H81 |
| Memory |
4DDR3 DIMM slots, supporting up to 32GB SDRAM |
| Storage |
3 × SATA 3.0, 1 × mSATA |
| Sound card |
Realtek HD Audio |
| Ethernet |
2 x Intel Gigabit LAN,82583 Chip |
| Graphics Board |
CPU integrated graphics card |
| Display |
VGA,DVI,HDMI |
| USB |
5USB2.0 ;4USB3.0 |
| GPIO |
8-bit GPIO (4 inputs, 4 outputs) |
| COM |
6COM RS232,COM1/COM2 support RS422/485 |

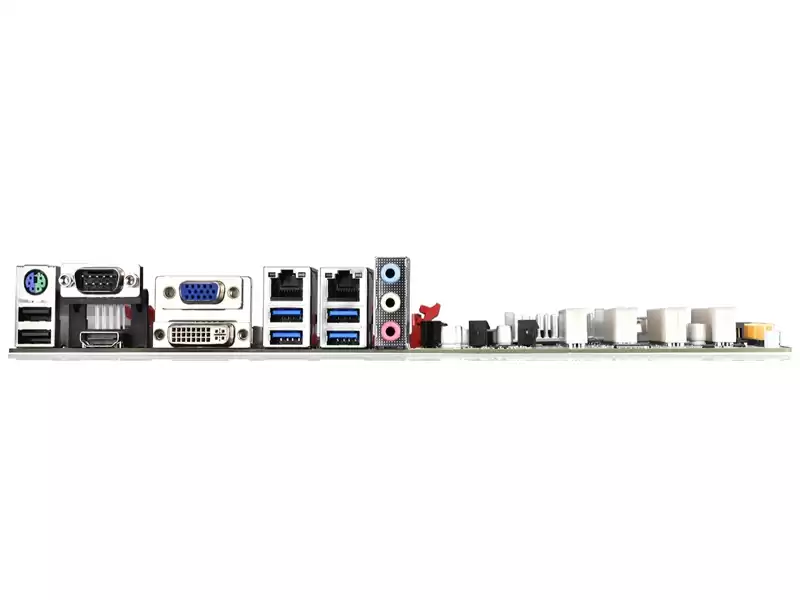

| Backplane I / O |
PS2+2USB2.0, COM+HDMII,VGA+DVI, 2 RJ45 LAN+4USB3.0, Line-out/in+Mic-in |
| Board I / O |
2USB2.0 , 1upright USB, 5COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , 24P+4P ATX, Print |
| Expand |
1PCIEx16; 1PCIEx4;1PCIEx1;4PCI;Mini PCIE |
| System |
Support Windows（WINXP，WIN 7，WIN 10 ...），Linux |
Product Features
■Support for LGA 1150 architecture 4th generation Intel® Core processors
■ 2 x Intel Gigabit LAN
■ VGA, DVI ,HDMI
■ 6COM RS232,COM1/COM2 support RS422/485
■ 5USB2.0, 4USB3.0
■ 256-bit watchdog
■ 16-bit GPIO (8 inputs, 8 outputs)
■ 1PCIEx16; 1PCIEx4; 1PCIEx1;4PCI expansion
| Mechanical & Environmental |
| Power supply |
ATX |
Heat dissipation |
Fan |
Size(L×W) |
306mm×245mm |
| Working temperature |
-15~55℃ |
Storage temperature |
-40~75℃ |
Environmental humidity |
0~90% air humidity,no condensation |
| Packing list |
ATX-B75AH26C-6P motherboard |
×1 |
SATA data wire |
×1 |
| COM line |
×2 |
|
|
Product Installation Dimension Diagram
