Industrial commercial use pool filter for water treatment plant

Factory best industrial commercial use swimming pool filter is still the most popular standard,with UV-resistant surface finish.

Facebook Twitter Pinterest LinkedIn 分享

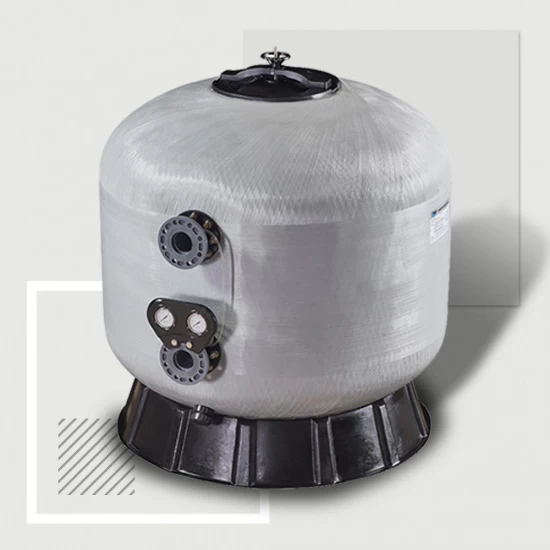

Factory best industrial commercial use swimming pool filter for water treatment plan

    Commercial use swimming pool filter is still the most popular standard in the industry,with UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability.

    The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder.

Model:PS1200-PS2300

pool sand filter

Technical Characteristics
Mode Filter Area (㎡) Vatve Connections
 Max Flow Rate Gravel (kg) A mm B mm
PL1200 1.13 3.0inch   90mm 55m³/h 900 1410 1200
PL1400 1.54 3.0inch   90mm
 75m³/h
 1350 1570 1400
PL1600 2.06 4.0inch   110mm
 100m³/h
 2300 1740 1600
PL1800 2.52 6.0inch   160mm
 120m³/h
 2900 2040 1800
PL2000 2.97 6.0inch   160mm
 145m³/h
 4000 2210 2000
PL2350 4.43 8.0inch   200mm
 210m³/h
 6000 2510 2350
PL2500 4.89 8.0inch   200mm 240m³/h 6700 2670 2500


pool sand filter

pool sand filter
pool sand filter
pool sand filter

We have a experience and expertise together with our devoted staffs.
Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"
