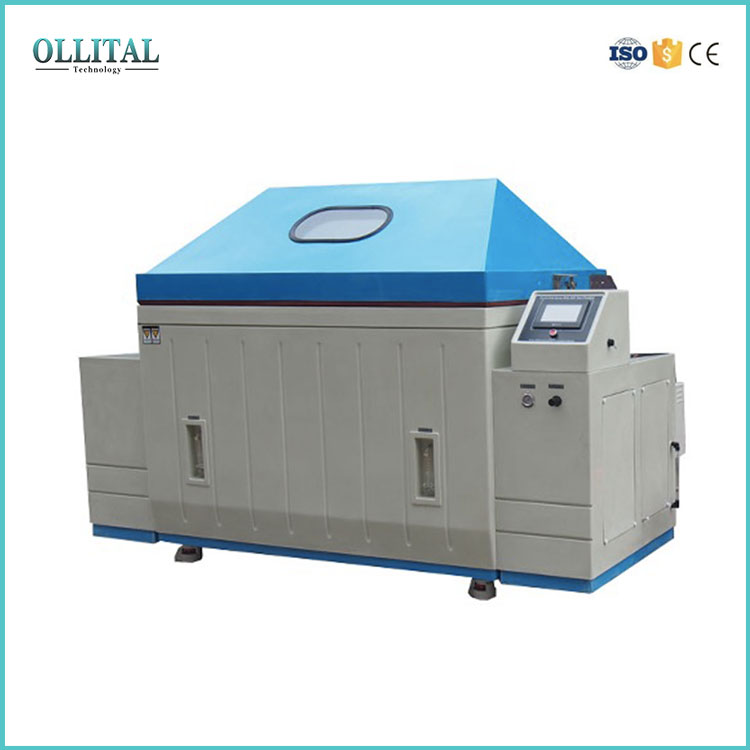

Industrial Cyclic Corrosion Test Chamber With Acetic Acid Salt Spray
Designed with automatic/manual water filling system in case of water shortage;
Digital display temperature control method with PID control of accuracy at ±0.1℃;
Double over-temperature protection system & water-shortage alerting system;
Salt sprat test chamber is designed with direct,stable vapor heating method;
Precise glass sprayer with adjustable frog flow to assure uniform distribution.
|
Tester Model
|
LTSP-600
|
LTSP-900
|
LTSP-1200
|
LTSP-1600
|
|
Internal Dimension (L×W×H )mm
|
600x450x400
|
900x600x500
|
1200x1000x500
|
1600x1000x500
|
|
External Dimension(L×W×H )mm
|
1070x600x1180
|
1410x880x1280
|
1900x1300x1400
|
2300x1300x1400
|
|
Test Zone Volume (L)
|
108
|
270
|
600
|
800
|
|
Water Consumption(L)
|
15
|
25
|
40
|
40
|
|
Power Input(KW)
|
1.3
|
1.5
|
4
|
5
|
|
Current (A)
|
10
|
15
|
30
|
30
|
|
Test Zone Temp. Range
|
NSS.ACSS 35 Celsius ±1 Celsius/ CASS 50 Celsius ±1Celsius
|
|
Saturated Barrel Temp. Range
|
NSS.ACSS 47 Celsius ±1 Celsius/ CASS 63 Celsius ±1 Celsius
|
|
Temp. Fluctuation
|
b±0.5 Celsius
|
|
Temp. Distribution
|
b±2.0 Celsius
|
|
Salt Mist Sedimentation Rate
|
1-2ml/80cm2 .h (An average value should be taken after 16 hours' operation)
|
|
Power Input
|
AC 108V-380V, 50HZ,Single Phase
|

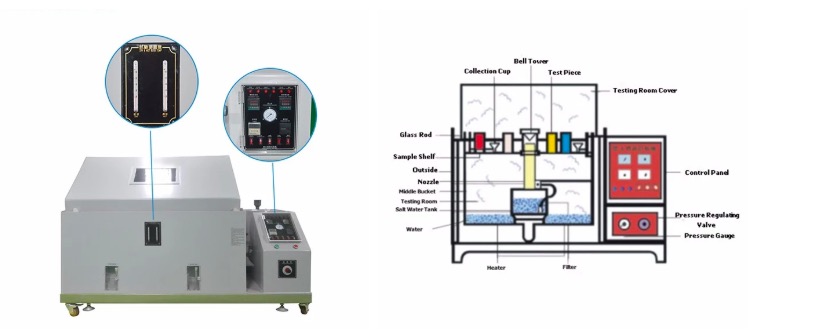

8MM Impact-Resistance Steel Testing Chamber With 5MM Transparent Acrylic Chamber Cover & Constant Temperature Water Sink With Automatic Water Level Controller;
SUS#304 Stainless Steel Plate Saturated Air Tank With Its Thickness of 2MM Is Designed With Automatic Water Level Controller To Refill Water In Water Shortage;
Salt Spray System Is Designed with Cone Frog Dispenser To Guarantee A Uniform Distribution of Adjustable Spray Flow By Continuous & Programmable Spraying Method;
Control System Employs Digital Temperature Controller With PID Control loop & SSR Output Works With High-Stability Temperaure Sensor To Regulate Salt Spraying Temperature at an Accuracy of ±1℃;
Salt Solution Refilling Tank Designed with Hidden Water Level Meter While Salt Spray Testing Chamber Designed As Flexible & Adjustable Angle at 15°or 30°;
