Industrial Embedded Computer with 7 Expansion Slot Professional Quality Control Team
Product Introduction
Addressing the industrial Embedded PC market. Yanyuetech MIS-ATX01 Embedded Computer supports All ATX Motherboards in Yanyue.The Compact Industrial PC offers seven flexible PCI/PCIe expansion slots with four different expansion kit combinations: 1 PCIe x16 and 1 PCIe x4; 1 PCIe x1 and 4 PCI.Multiple boards can be expanded to suit various applications.
| Specifications |
Optional Configurations |
| Chassis |
All steel construction, industrial grey |
Other colours such as industrial black are available |

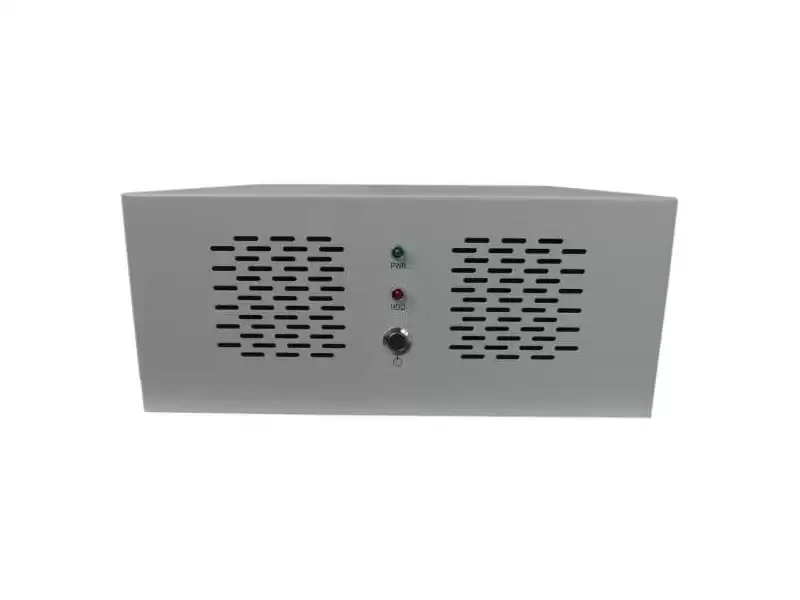

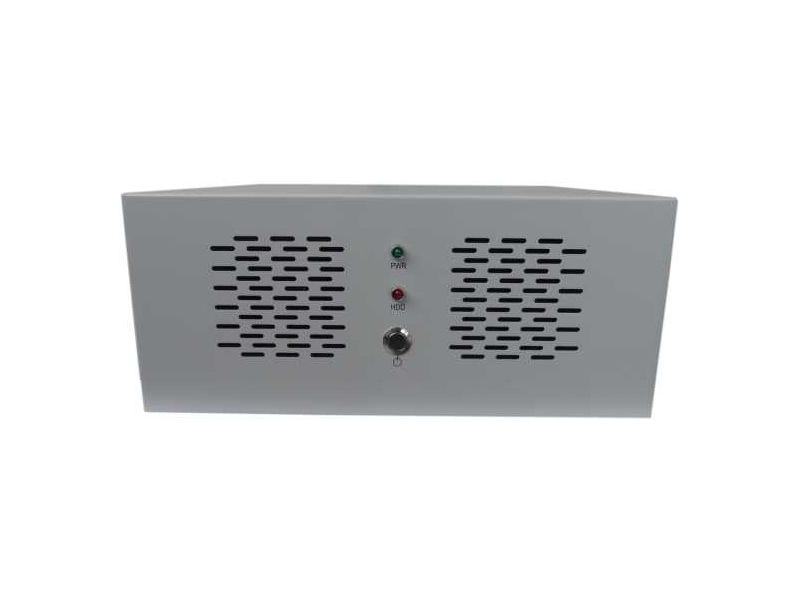

| Front |
Power Switch, Power/HDD indicator, 2FAN |
Customizable with customer logo or more serial or parallel ports |

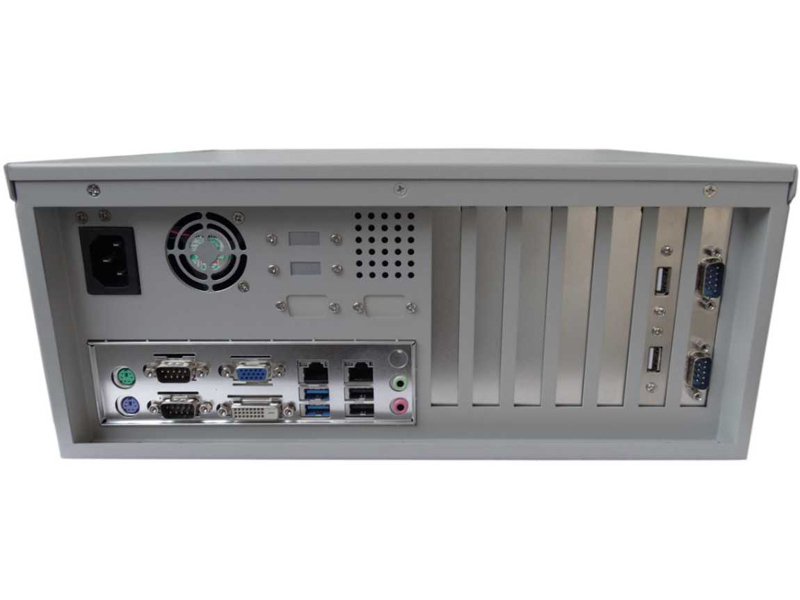

| Back |
Large square holes in motherboard, 7-slot expansion; 2 DB9, 2 USB |
|
| Hard Disk Rack |
1 x 2.5" hard drive cages |
|
| Adaptive Motherboard |
Intel B75/H81/H110 etc. chip ATX motherboards in Yanyue |
Support All ATX Motherboard in Yanyue |
| CPU/GPU |
Intel i3 2120 |
Supports 3rd/4th/6th/7th Gen desktop CPU or soldered onboard CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G/32G memory |
| Hard Disk |
128G SSD |
Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD |
| Interfaces |
AC input;6USB(2USB3.0);2RJ45(Gigabite ethnet)VGA;DVI;Audio Out;MIC in;2COM(Standard) |
Optionally available with all interfaces on the chassis |
| Expand |
PCIEx16; PCIEx4; PCIEx1; 4PCI |
Depends on the expansion slot on the motherboard |
| Size |
Handle not included:330*291*138mm |
Net/Gross Weight |
4.5/5KG |
| Power Supply |
200W 1U Industrial Powern Supply |
|
| Installation Mode |
Bracket installation |
Product Features
■ Heat dissipation, dust and vibration resistance
■ Support All ATX Motherboard in Yanyue
■ 7-slot Expansion
■ Can be added 2COM and 2USB on the back
■ Flexible configuration, CPU, memory, hard disk according to customer requirements
| Work and Environment |
| Working Temperature |
（-20～60）℃ |
Storage Temperature |
-40～75℃ |
Environmental Humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

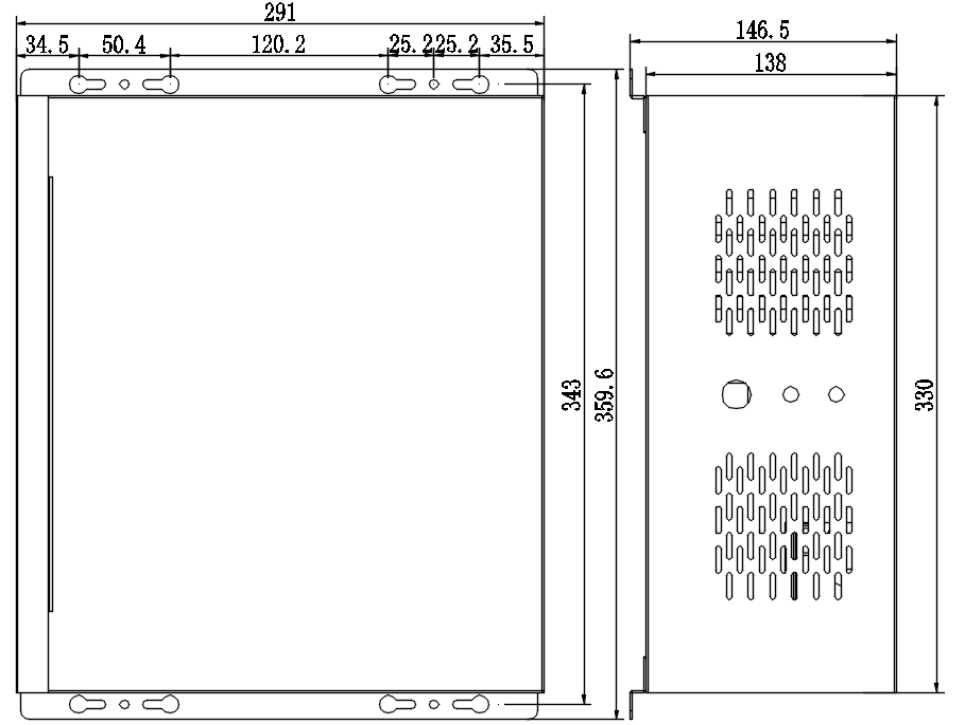

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
