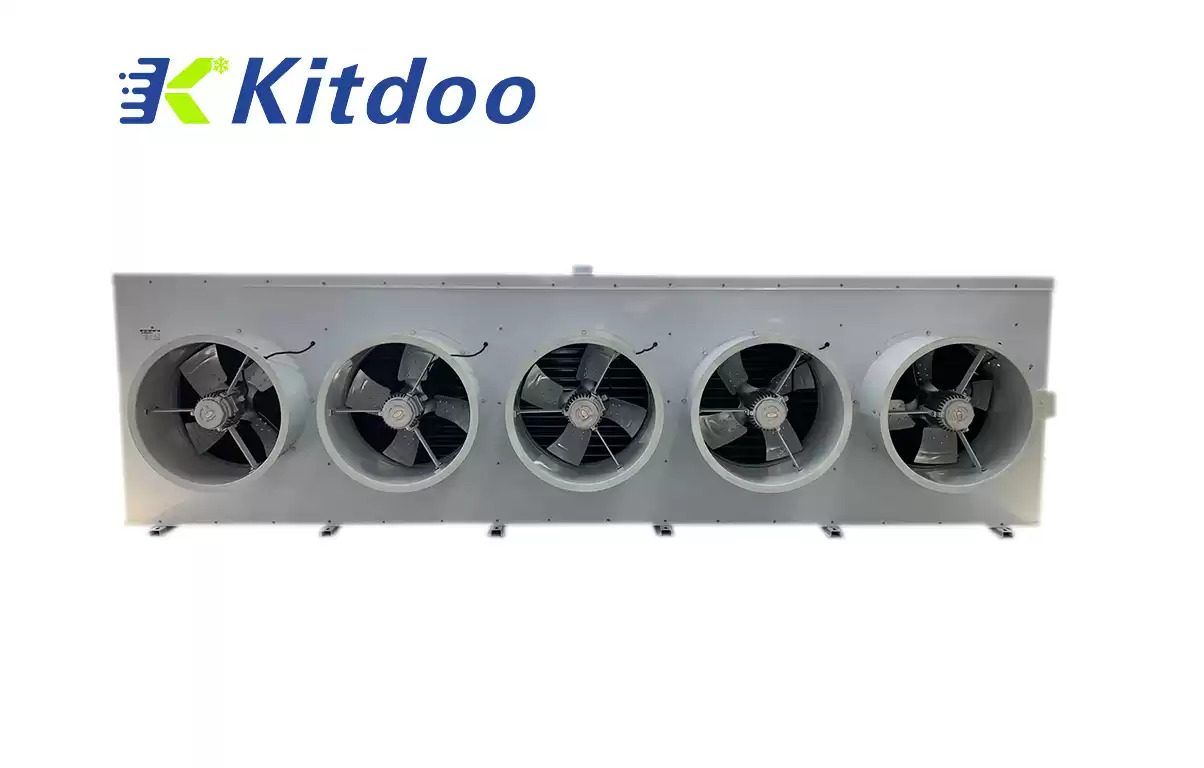

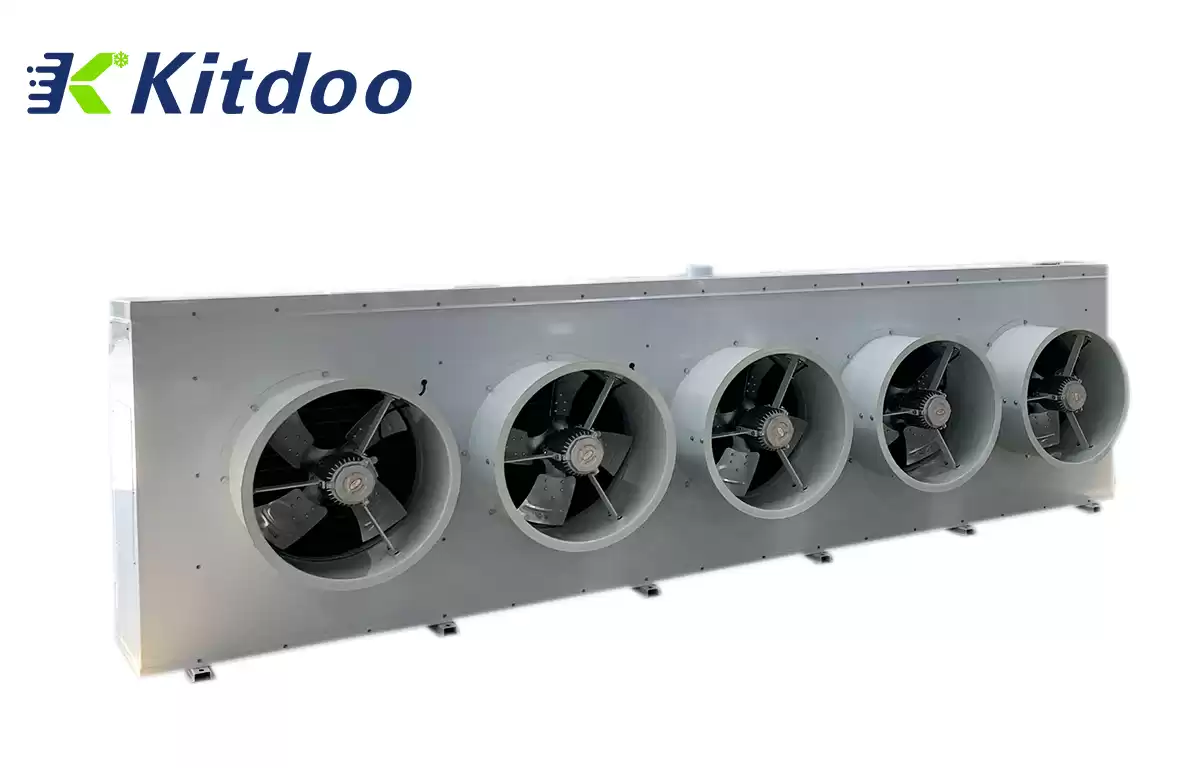

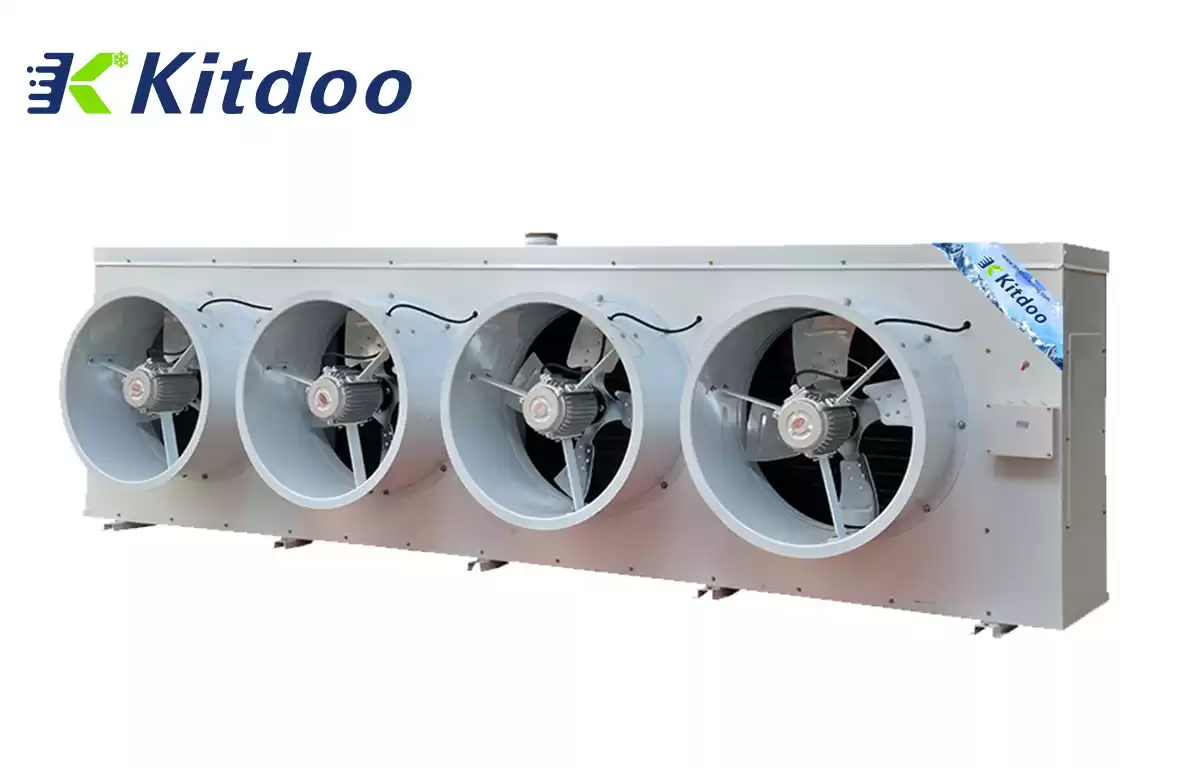

Industrial evaporative air cooler/industrial air condition for cold room
KITDOO's refrigeration evaporator removes the fins through circulating water at room temperature to melt the frost on the fins. Compared with the conventional electric defrosting method, this method saves electricity, is more energy-efficient and has a better defrosting effect. During the defrosting process, there will be no sudden increase in the storage temperature, which will lead to the deterioration of the frozen goods. Water defrosting refrigerator evaporators are very suitable for cold storage such as frozen medicine and vaccines.
1.KITDOO brand SDL series water defrosting evaporator is suitable for the storage temperature around 0 degree, such as the for eggs, vegetable frsh-keeping.
2.Defrost structure design for water disc type, large water flow, uniform distribution of water, defrost effect is good, small rise in storage temperature.
3.Using water defrosting air cooler evaporator products can greatly reduce electricity consumption, save energy and reduce costs.
|
Model
|
Capacity
(W)
|
Cooling surface
(m2)
|
Fin Space
(mm)
|
Fan
|
HeaterVoltage
(v)
|
|
Qty
|
Size
(mm)
|
Air flow
(m3/h)
|
Voltage
(v)
|
|
SDL-2.0/10
|
2000
|
10
|
4.5
|
1
|
300
|
1700
|
380
|
220
|
|
SDL-3.0/15
|
3000
|
15
|
4.5
|
2
|
300
|
3400
|
380
|
220
|
|
SDL-5.0/25
|
5000
|
25
|
4.5
|
3
|
400
|
5100
|
380
|
220
|
|
SDL-8.0/40
|
8000
|
40
|
4.5
|
2
|
400
|
8000
|
380
|
220
|
|
SDL-11.2/55
|
11200
|
55
|
4.5
|
2
|
500
|
8000
|
380
|
220
|
|
SDL-16.2/80
|
16200
|
80
|
4.5
|
2
|
500
|
12000
|
380
|
220
|
|
SDL-21.0/105
|
21000
|
105
|
4.5
|
2
|
500
|
12000
|
380
|
220
|
|
SDL-25.0/135
|
25000
|
135
|
4.5
|
3
|
500
|
18000
|
380
|
220
|
|
SDL-32.6/160
|
32600
|
160
|
4.5
|
3
|
500
|
18000
|
380
|
220
|
|
SDL-37.6/185
|
37600
|
185
|
4.5
|
3
|
500
|
18000
|
380
|
220
|
|
SDL-42.7/220
|
42700
|
220
|
4.5
|
4
|
500
|
24000
|
380
|
220
|
|
SDL-50.0/250
|
50000
|
250
|
4.5
|
4
|
500
|
24000
|
380
|
220
|
|
SDL-55.0/280
|
55000
|
280
|
4.5
|
4
|
500
|
24000
|
380
|
220
|
|
SDL-60.0/300
|
60000
|
300
|
4.5
|
4
|
500
|
24000
|
380
|
220
|
|
SDL-66.0/330
|
66000
|
330
|
4.5
|
4
|
500
|
24000
|
380
|
220
|
|
SDL-70.0/375
|
70000
|
375
|
4.5
|
4
|
600
|
44000
|
380
|
220
|
|
SDL-82.0/410
|
82000
|
410
|
4.5
|
4
|
600
|
44000
|
380
|
220
|
|
SDL-94.0/470
|
94000
|
470
|
4.5
|
5
|
630
|
45000
|
380
|
220
|
|
SDL-116.0/580
|
11600
|
580
|
4.5
|
5
|
630
|
45000
|
380
|
220
|
