Product Item: Industrial Grade Lighting 150W High Bay UFO Light Factory LED Retrofit Lighting
Overview:
Our ultra-bright high bay UFO lighting fixtures are designed and manufactured with top quality components to deliver unparalleled lumen output, longevity and cost saving for all industrial lighting and commercial lighting applications.
This model is available for 60W, 80W, 100W, 120W 150W and 200W, with beam angles of 60°, 90°, and 120°, meeting all lighting requirements for all high bay and low bay lighting applications. With high lumen output original Lumileds LED chip and high efficiency optical lens to ensure excellent lighting performance, and Mean Well driver to ensure lighting durability, this LED warehouse lighting fixture can be both highly energy-saving, and offer you a long payback period.
This UFO lamp has a lifespan of minimum 50,000 hours with the high quality Lumileds LED chip, reliable Mean Well power supply and the efficient heat dissipation system. The IP65 rating and high quality powder coating provides a durable and safe solution, protecting the slim-line high bay LED light against rust and water penetration, meaning it is a maintenance-free industrial illumination high bay light.
Specifications:
|
Model
|
SR-HBSQ-150W
|
Power
|
150W
|
Lumen Output
|
19,500lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
60°/90°/120°
|
|
Power Supply
|
MEAN WELL/PHILIPS/DRIVERLESS, etc.
|
Input Voltage
|
AC100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
Colour Rendering Index
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|

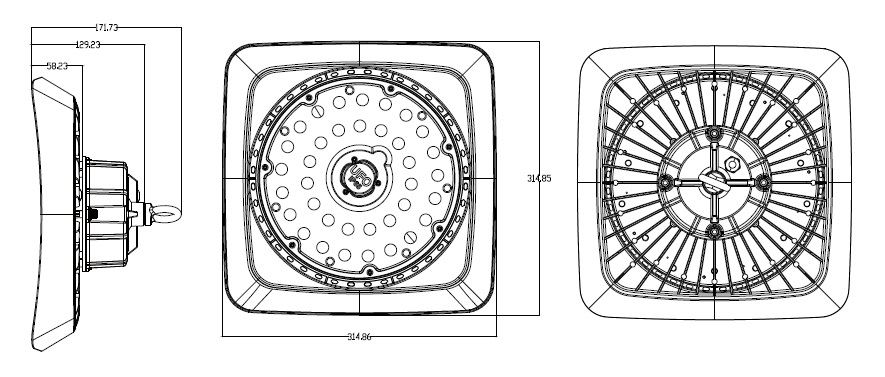

Dimension
|
315x315x172mm
|
Weight
|
2.3KG
|
Warranty
|
5 years warranty
|
Features:
-
System Power: 60 watt, 80 watt, 100 watt, 120 watt, 150 watt, and 200 watt.
-

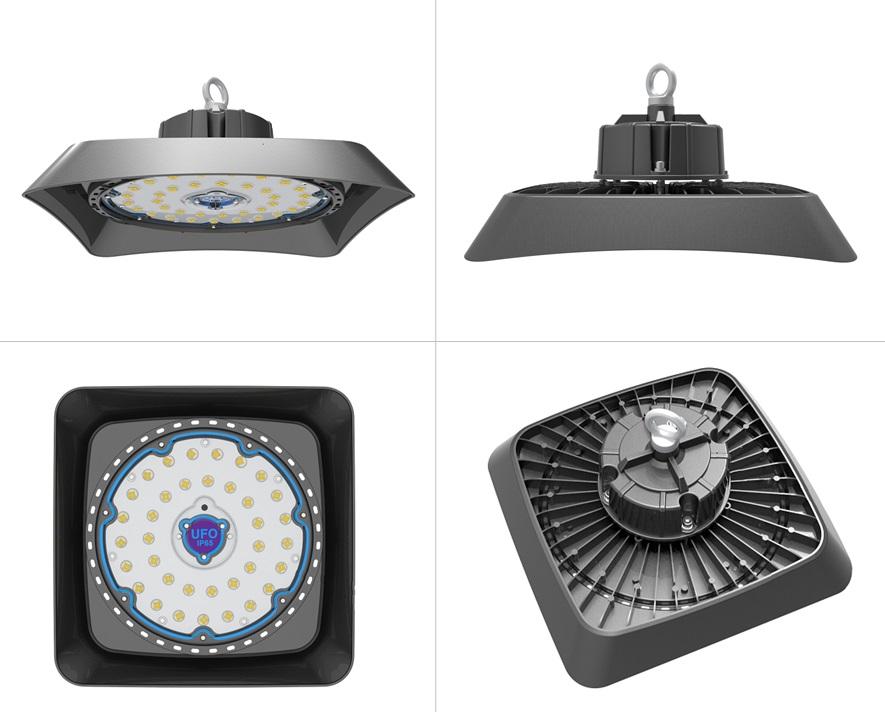

Unique and innovative design high bay/low bay luminaire with rugged die-cast aluminum lamp body, unlike other UFO round shape high bay light, this model is of square shape, which is more attractive on market.
-
Light-weight but with extremely excellent air convection design, lamp body with fins at back and with holes around the PCB area accelerates the airflow, and ensures fixtures run cooler than most other high bays.
-
Excellent lightiing distribution: polycarbonate Fresnel lens or convex lens optional with 60°, 90°, and 120° beam angles available.
-
Integrated 0-10V diming, DALI dimming, and zigbee remote control options available for smart high bay lighting.
-
Motion sensor/Microwave sensor activators available for additional energy savings.
-
Green UFO high bay lighting without harmful chemicals, this LED UFO light offers an eco- efficient and long-lasting solution to various industrial lighting projects.
-
It can be installed from walls or ceilings and we stock a selection of accessories to use alongside the product such as brackets, chains, or ceiling mounted hooks.
-
Durable IP65 LED fixture for high/low bay lighting in a wide variety of environments for multiple industries, delivering excellent performance even under the harshest conditions.
-

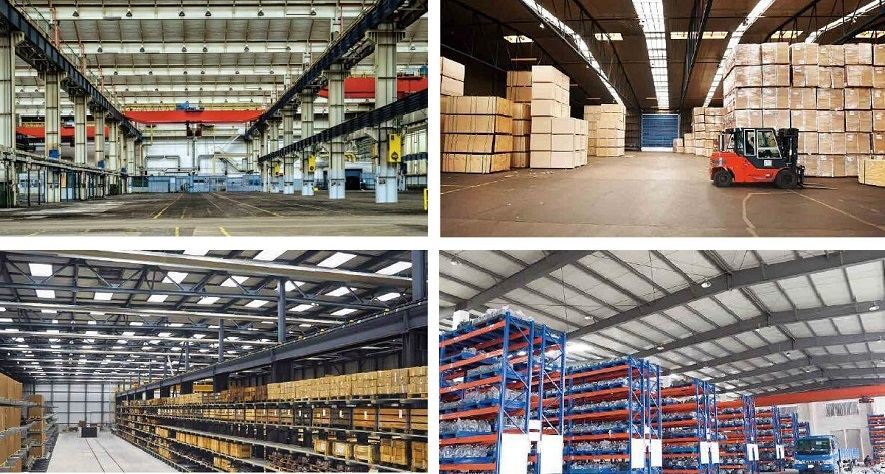

Applications: warehouse high bay lighting, logistics center high bay lighting, manufacturing facility high bay lighting, workshop high bay lighting, gym high bay lighting, sports center high bay lighting, retail store high bay lighting.
|
|
|
|

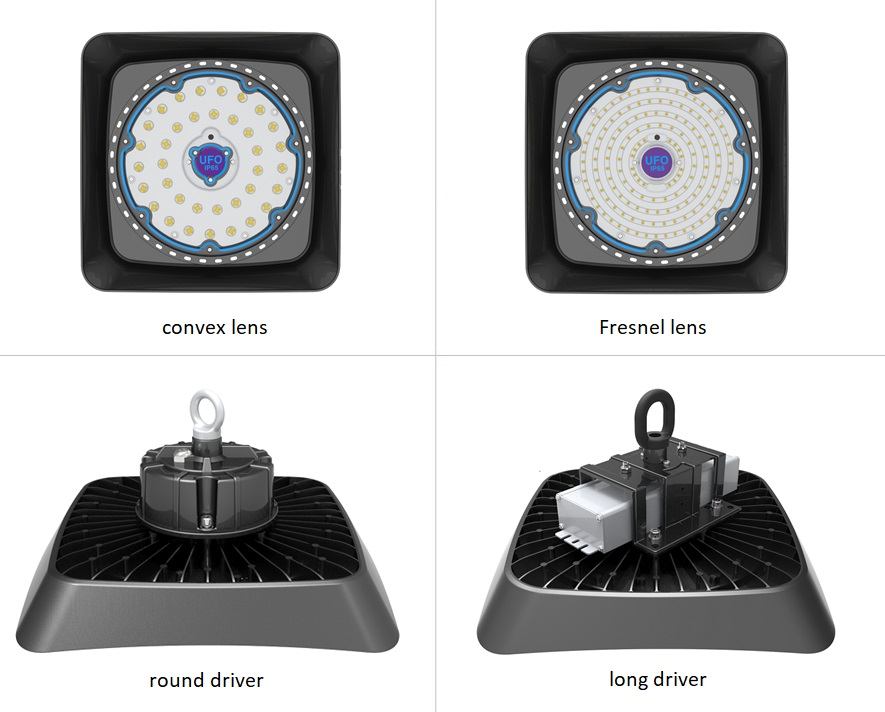

Lens options: convex lens, or Fresnel type circular lens.

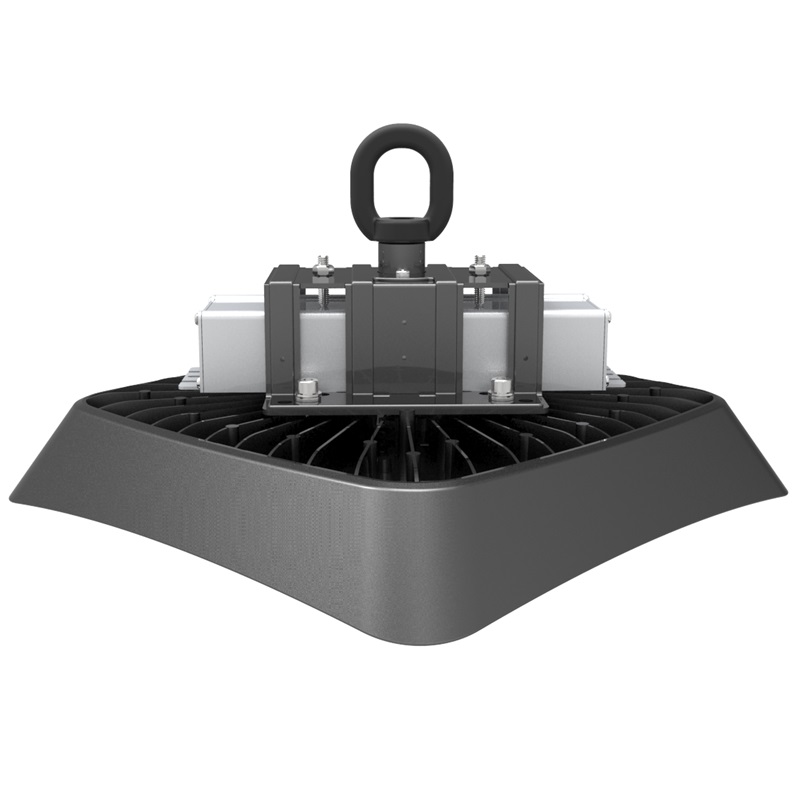

Driver options: hook, bracket and yoke available for both round driver and long driver.
Lighting distribution: 60°, 90°, and 120° beam angles available for different high bay or low bay lighting requirements.
Application: Distribution center lighting, carport lighting, shopping center lighting, underground car park lighting, water distribution station lighting, sports training center lighting, etc.
