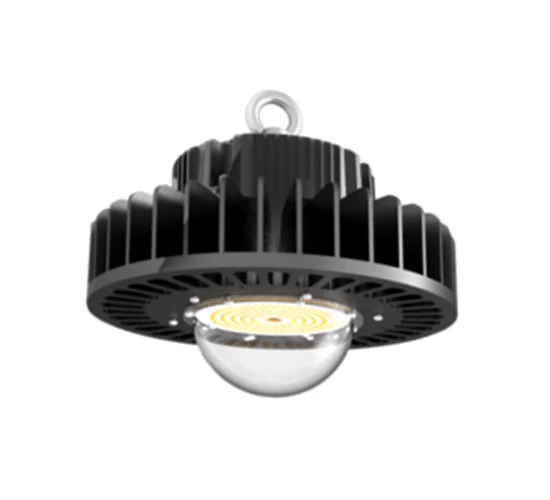

Industrial High Lumens Waterproof 150W UFO Led High Bay Light For Gym Lighting
Advantages:
-
High light efficiency 130lm/W
-
High Quality Philips LEDs with
low lumen decay
-
Tj＜80℃, PF ≥ 0.90
-
Surface of fixture especially treated with anti-static, ther mostable, anti-corrosive paint
-
Integrated Meanwell driver,
excellent heat dissipation ability and
stable quality
-
Anti-crash IK09 level
Application:
-
Project lighting, IP65
-
For workshop, factory, storage
warehouse, exhibition center, gas station,toll station, and other places
-
Replacement for sodium lamp
Datasheet:
|
Model
|
Wattage
|
Color
|
Angle
|
LED Type
|
LED Q'ty
|
Lumen
|
IP level
|
CTN details
|
|
SPS604-HL10B-72NW-5WR
|
60W
|
NW
|
125°
|
Philips
|
72pcs
|
7860lm
|
IP65
|
480*480*260mm
4pc/CTN
|
|
SPS604-HL10B-72DW-5WR
|
60W
|
DW
|
125°
|
Philips
|
72pcs
|
7800lm
|
IP65
|
480*480*260mm 4pc/CTN
|
|
SPS804-HL10B-90NW-5WR
|
80W
|
NW
|
125°
|
Philips
|
90pcs
|
10480lm
|
IP65
|
540*285*295mm 2pc/CTN
|
|
SPS804-HL10B-90DW-5WR
|
80W
|
DW
|
125°
|
Philips
|
90pcs
|
10400lm
|
IP65
|
540*285*295mm 2pc/CTN
|
|

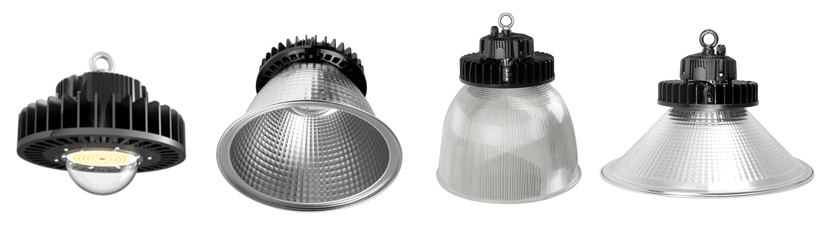

Reflector options
|
|
Angle
|
120°
AL reflector
|
90° AL
reflector
|
60°
AL reflector
|
60°
PC reflector
|
|
Net weight
|
0.68kg
|
0.55kg
|
0.38kg
|
0.55kg
|
|
CTN details
|
590*590*210mm 10pcs/CTN
|
570*570*235mm 10pcs/CTN
|
415*360*365mm 10pcs/CTN
|
495*495*740mm
15pcs/CTN
|
|
G.W per CTN
|
9.57KG
|
9.2KG
|
6.53KG
|
20.62KG
|
|
|
|
SPS1004-HL10B-117NW-5WR
|
100W
|
NW
|
125°
|
Philips
|
117pcs
|
13100lm
|
IP65
|
540*285*295mm 2pc/CTN
|
|
SPS1004-HL10B-117DW-5WR
|
100W
|
DW
|
125°
|
Philips
|
117pcs
|
13000lm
|
IP65
|
540*285*295mm 2pc/CTN
|
|
SPS1504-HL10B-182NW-5WR
|
150W
|
NW
|
125°
|
Philips
|
182pcs
|
19600lm
|
IP65
|
570*320*330mm 2pc/CTN
|
|
SPS1504-HL10B-182DW-5WR
|
150W
|
DW
|
125°
|
Philips
|
182pcs
|
19500lm
|
IP65
|
570*320*330mm 2pc/CTN
|
|
SPS2004-HL10B-238NW-5WR
|
200W
|
NW
|
125°
|
Philips
|
238pcs
|
26200lm
|
IP65
|
570*360*365mm 2pc/CTN
|
|
SPS2004-HL10B-238DW-5WR
|
200W
|
DW
|
125°
|
Philips
|
238pcs
|
26100lm
|
IP65
|
570*360*365mm 2pc/CTN
|
|
Reflector options
|
|
Angle
|
60° AL
reflector
|
90° AL
reflector
|
120°
AL reflector
|

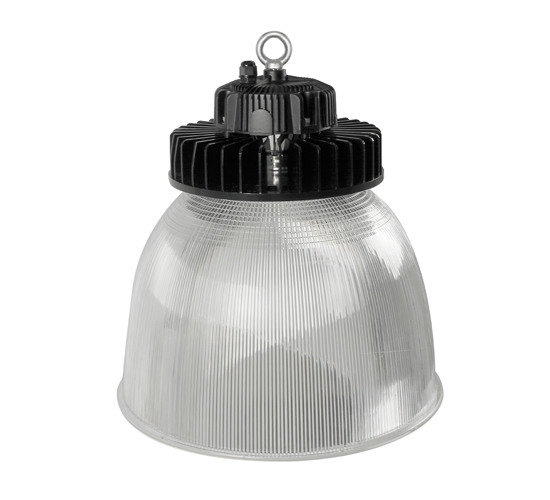

60°
PC reflector
|
|
Net weight
|
0.84lb/0.38kg
|
1.22lb/0.55kg
|
1.5lb/0.68kg
|
1.22lb/0.55kg
|
|
CTN details
|
415*360*365mm 10pcs/CTN
|
570*570*235mm 10pcs/CTN
|
590*590*210mm 10pcs/CTN
|
495*495*740mm
15pcs/CTN
|
|
G.W per CTN
|
14.4lb/6.53kg
|
20.29lb/9.2kg
|
21.1lb/9.57kg
|
45.46lb/20.62kg
|

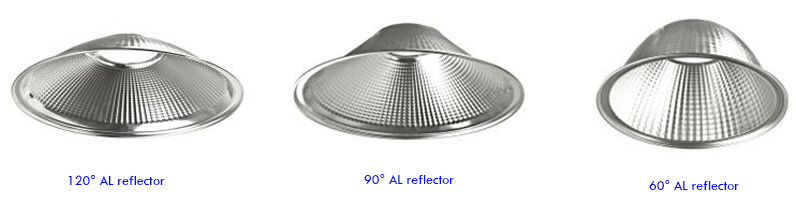

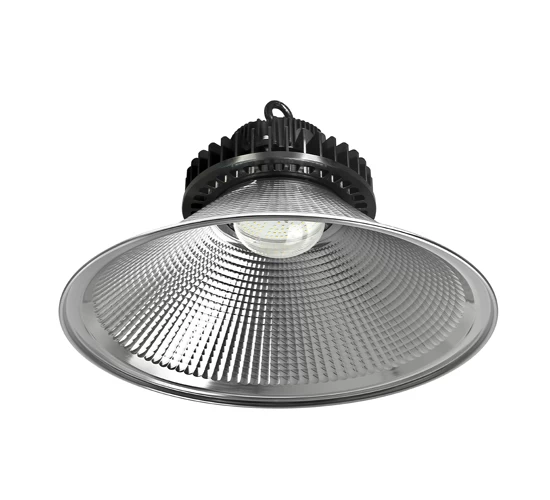

Al Reflector Options:

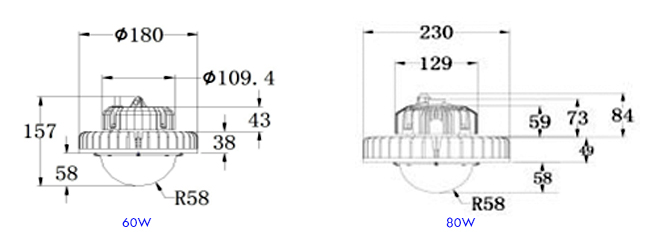

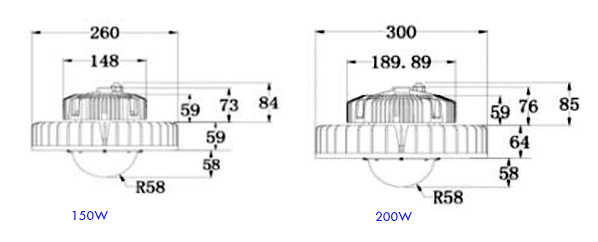

Product Size:

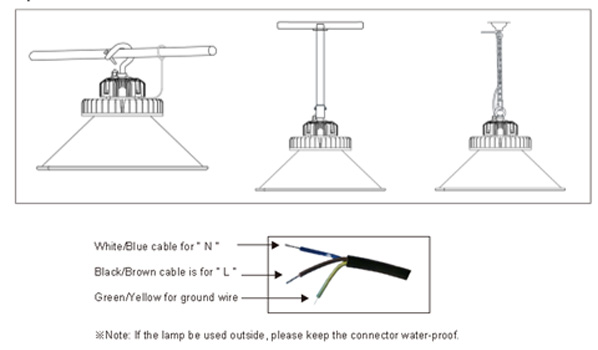

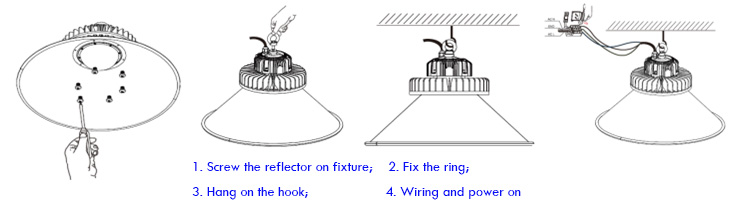

Installation:

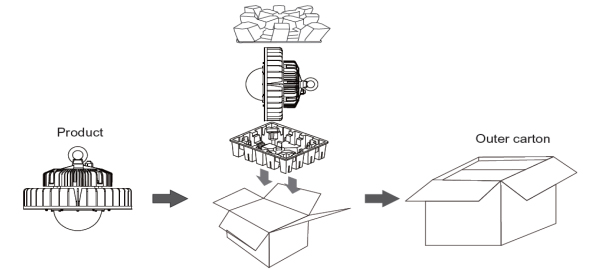

Package:
