Industrial indoor and outdoor Laser Navigation Electric Forklift AGV

The electric forklift AGV is composed of a drive / steering front wheel and two directional wheels. It is suitable for transporting all kinds of pallets, boxes or paper rolls, and can meet the load units of different sizes.


  • BrandEFORK
  • Warrantyone year

Product Name:Electric Forklift AGV


Product Advantage

1. Laser navigation, high positioning accuracy, even in no light environment; forklift can also accurately locate;

2. With heavy load and rated load up to 3000kg, it is suitable for factories and workshops with limited site area;

3. The vehicle body and navigation system can be customized to meet various use scenarios;


Product Display

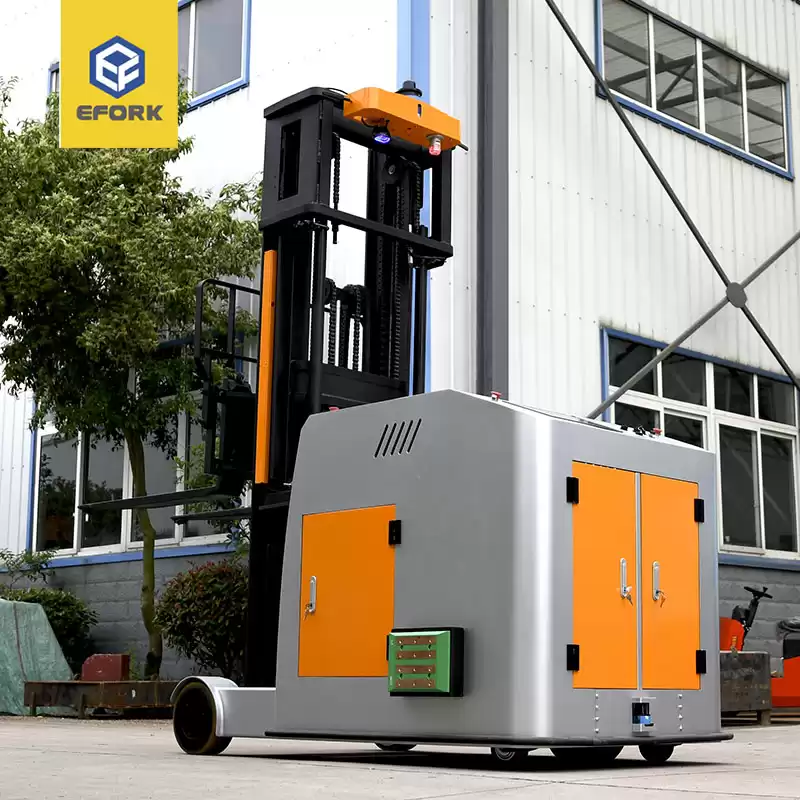

Electric Forklift AGVLaser navigation robot


Product Data

CDD*BJ01-30

(Basic parameters)
Dimension (including fork) mm L3295*W1244*H2250
self weight kg /
Navigation mode Laser navigation
control mode intelligent motion control system
Lift height mm 3000
Rated load kg 1000~3000
Load center mm 500

Sports performance
Running speed m/min 50

Operating temperature
-10℃-40℃
Orientation accuracy mm ±10mm
Accuracy of stop mm ±20mm
(Secondary positioning is needed for higher accuracy)
Direction of travel Double ways
Lifting speed (loaded / unloaded) mm/s -

(Descent speed (loaded / unloaded))
mm/s -

Minimum turning radius (excluding AST)
mm 2100
1200*1000
(Stacking channel (1200 fork * 1000))
mm 3850(Contain Ast)
Performance of lithium battery Rated voltage V 48
electric capacity Ah Customizable

Number of charge discharge cycles

1500
Endurance time) h It runs for about 8 hours
Charging time) h 1-2

Safety protection
Laser obstacle avoidance YES
Pallet in place inspection YES
Inspection of fork tooth infrared sensor YES
Emergency stop button YES
Sound and light alarm YES
Mechanical collision avoidance YES
