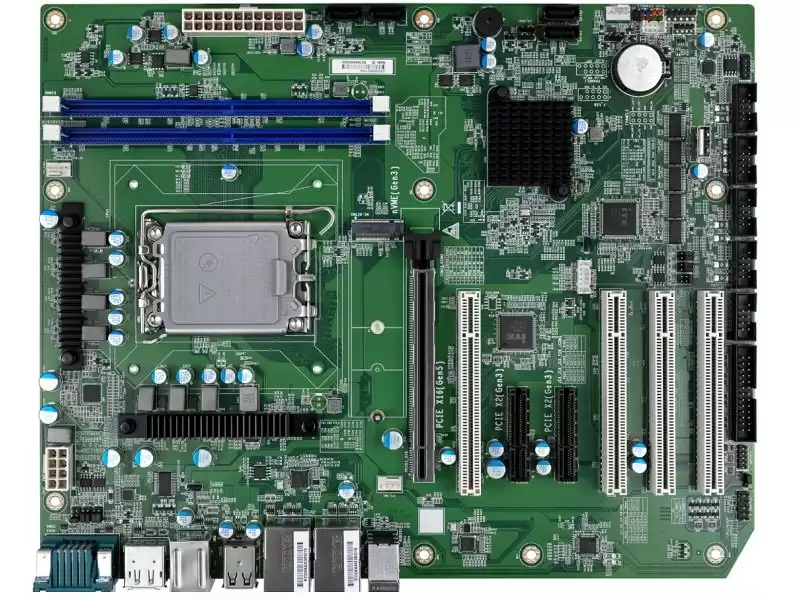

Industrial Motherboard Chip with 2LAN 6COM 10USB 7 Slots (3PCIE 4PCI)

ATX-H610AH26A

ATX Industrial Motherboard, Intel@ PCH H610 Chip, 2LAN 6COM 10USB, 7 Slots (3PCIE 4PCI), Support LGA1700 12th Intel@ core CPU



ATX Industrial Motherboard Intel@ PCH H610 Chip with 2LAN 6COM 10USB, 7 Slots (3PCIE 4PCI), Support LGA1700 12th intel core CPU



Product Introduction

The ATX Industrial Motherboard with Intel PCH H610 Chip is a high-performance motherboard designed for industrial applications. It offers exceptional reliability, stability, and a wide range of connectivity options to meet the demands of industrial environments.

ATX-H610AH26A Industrial Motherboard with Intel PCH H610 Chip is a reliable and feature-rich solution designed specifically for industrial applications. With its two LAN ports, six COM ports, ten USB ports, and multiple PCIe slots, it provides exceptional connectivity, control, and expansion options for industrial computing needs.



Specification

CPU/GPU

Support  LGA1700  architecture12th Intel® Core CPU i7/i5/i3,Pentium®/Celeron®

Chip

Intel@ PCH H610

Memory

2× DDR4 DIMM  slot,up to 128GB SDRAM

Storage

4×SATA3.0, M.2 NFGG

Sound Card

Realtek HD Audio

NIC

2 ×Intel  Gigabit Ethernet port

Graphic Card

CPU  Integrated Graphics

Display Interface

2DP,HDMI, DVI(pin)Independenttriple display

USB2.0

6

USB3.2

4

GPIO

8-bit

COM

6COM RS232,COM1/COM2 can be set RS422/RS485

TPM

1 x SPI TPM header

Backplane I /O

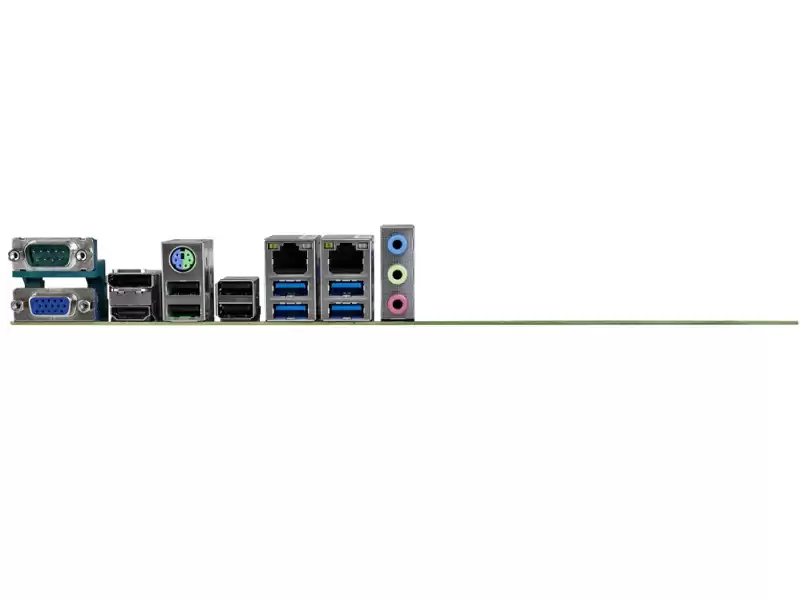

VGA+HDMI+DP, 2×COM, 4×USB2.0, 2 RJ45 LAN+4USB3.2, 2 x audio jack

Board I /O

2× USB2.0, 4COM ,front audio , CLR_CMOS ,CPU fan power ,System fan

power , GPIO,Front panel ,LPT,24P+8P ATX,TPM,

Expansion

1×PCIEx16;1×PCIEx4;1×PCIEx1; 4×PCI

System

Support Windows(WIN 10 ...),Linux

Mechanical & Environmental

Power supply

ATX

Heat Dissipation

Fan

Size(L×W)

305mm×244mm

Working Temperature

-15~55℃

Storage Temperature

-40~75℃

Environment Humidity

0~90% air humidity,non-condensing

Packing List

ATX-H610AH26E  motherboard×1, SATA  data cable×1, Interface bezel×1, COM cable x2



Product Features

  • Support  LGA1700  architecture 12th、13th  Intel® Core CPU
  • 2 × Intel Gigabit Ethernet port
  • VDA+HDMI+DP
  • 6COM  RS232 ,COM1/COM2 can be set RS422/485
  • 4USB3.2, 6USB2.0, 8-bit isolated GPIO
  • 1×PCIEx16;1×PCIEx4;1×PCIEx1; 4×PCI  expansion
  • 256 level watchdog



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
