Industrial Rackmount PC Upper Rack 4U IPC 7 Or 14 Expansion Slots I3 I5 I7 Series CPUs
Product Introduction
The IPC-8401 is a 4U rack chassis, made of high quality steel plate, which can be adapted to Yanyuetech ATX and M-ATX motherboards, with a 5.25' CD-ROM, 2 hard drives and vibration damping. It can be widely used in communication, network, finance, electric power, transportation, industrial automation and other fields.
| Specifications |
Optional Configurations |
| Chassis |
all steel structure, industrial grey |
Optional black |

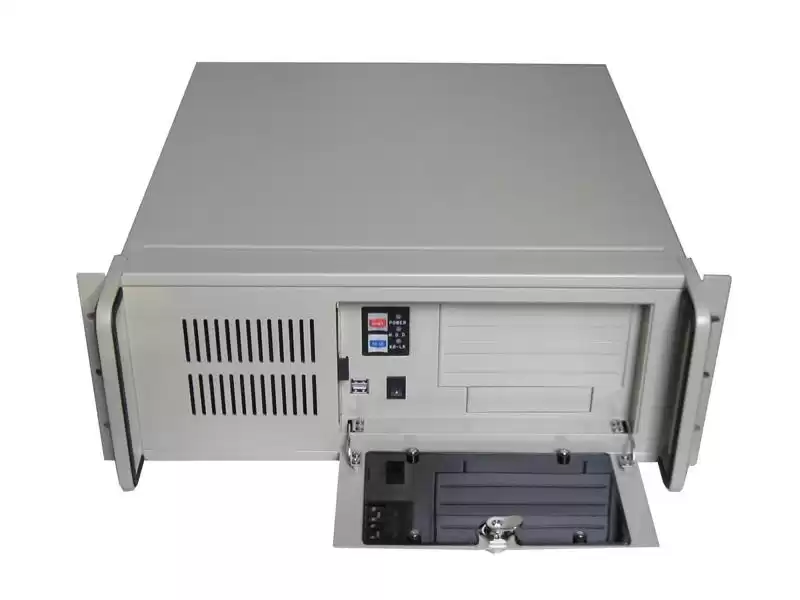

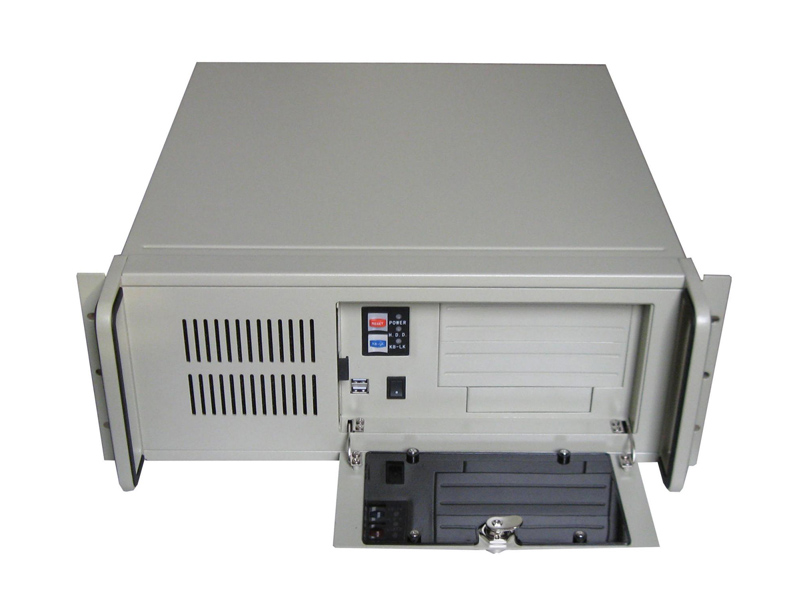

| Front |
Inside the door: power switch, Power/HDD indicator, 2USB2.0; 1 large fan, can not be turned off to replace, clean the dust screen |
Customizable with customer logo or more serial or parallel ports |

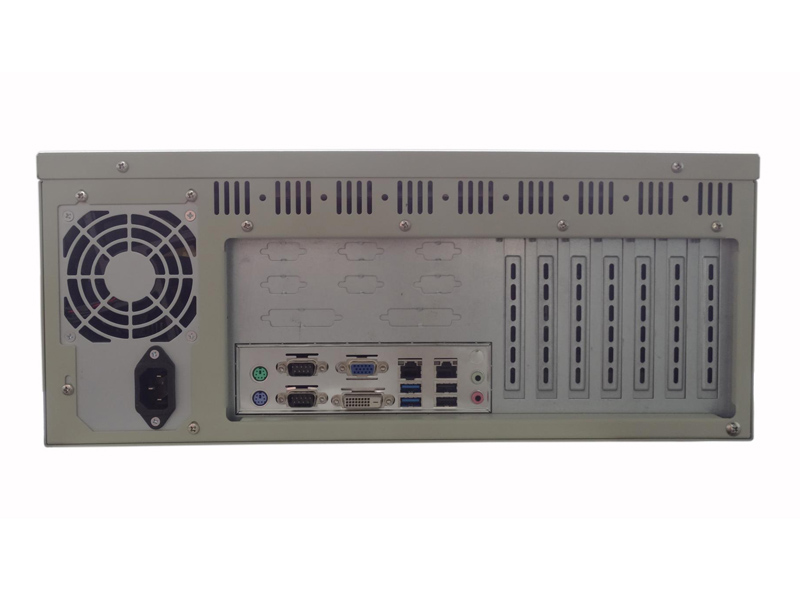

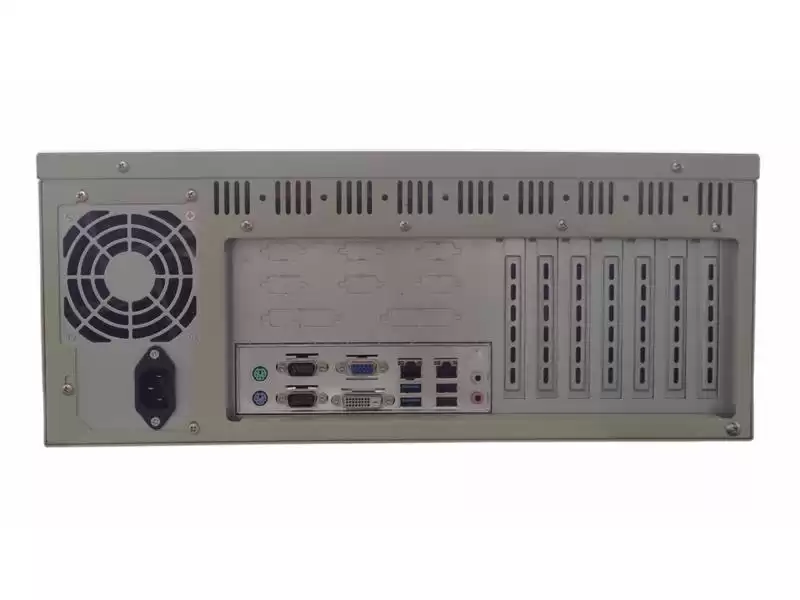

| Back |
PS/2 power supply; large square hole for motherboard; 7-slot expansion;6 COM and 2 LPT can be added |
14-slot, full-length card motherboard support with 12 PCI expansion |
| Hard disk rack |
shock-resistant hard drive cages, supporting 2* 3.5" hard drives+2*5.25" DVD |
Optional DVD,support 4 HDD |
| Adaptive Motherboard |
Support all ATX motherboards in Yanyue |
Support all full-length card motherboard in Yanyue |
| CPU/GPU |
Intel i3 2120 Dual Core 4 Threads 3.3G Hz |
Support all generations of Celeron, Pentium, i3, i5, i7 series CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G/32G memory |
| Hard Disk |
1T HDD |
Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD |
| Interfaces |
AC input;PS/2;KB/MS;4USB2.0;2USB3.0;2RJ45(Gigabite);VGA,DVI;HDMI;Audio Line-Out;MIC Input;6COM(Standard) |
Optional leads to all interfaces on the chassis |
| Expand |
PCIEx16; PCIEx4; PCIEx1;4PCI |
Depending on the expansion slot on the motherboard |
| Size |
Handle not included:483*401.5*177 |
Net/Gross Weight |
9/10KG |
| Power Supply |
300W PS/2 Industrial Powern Supply |
Optional higher power |
| Installation mode |
19" Standard Rackmount |
Product Features
■ Heat dissipation, dust and vibration resistance
■ Support all ATX/ Micro-ATX motherboards in Yanyue
■ 7-slot expand
■6 COM and 2 LPT can be added at the back
■ Can be replaced and cleaned without shutting down the machine
■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

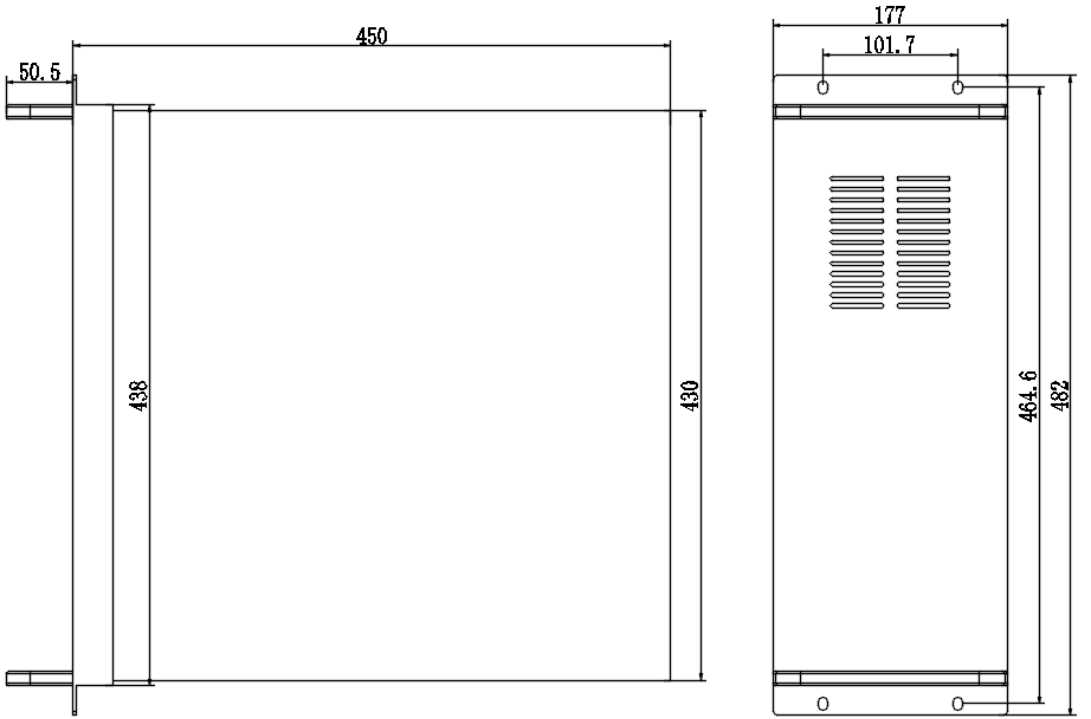

Product Installation Dimension Diagram
