Item
|
Effective evaporation area(m²)
|
condensation area(m²)
|
Evaporator inside diameter(mm)
|
constant pressure funnel volume(L)
|
Handing capacity(KG/H)
|
Motor power(W)
|
Max. rotary speed(RPM)
|
|
LMD-60
|
0.05
|
0.1
|
60
|
0.5
|
0.1-2.0
|
120
|
450
|
|
LMD-80
|
0.1
|
0.15
|
80
|
1
|
0.3-4.0
|
120
|
450
|
|
LMD-100
|
0.15
|
0.2
|
100
|
1
|
0.5-5.0
|
120
|
450
|
|
LMD-150
|
0.25
|
0.4
|
150
|
2
|
1.0-8.0
|
120
|
450
|
|
LMD-200
|
0.35
|
0.5
|
190
|
2
|
1.5-10.0
|
200
|
300
|
|
LMD-300
|
0.5
|
0.65
|
220
|
5
|
2.0-15.0
|
200
|
300
|

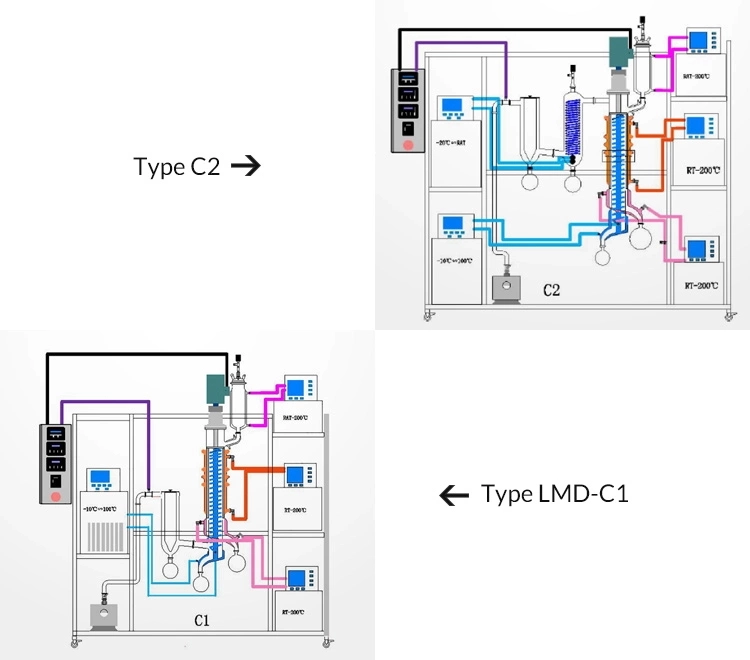

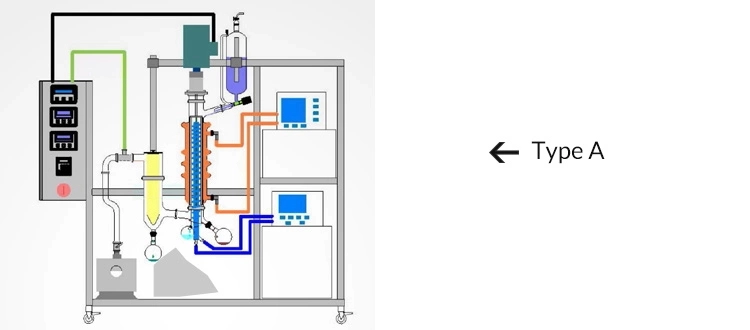

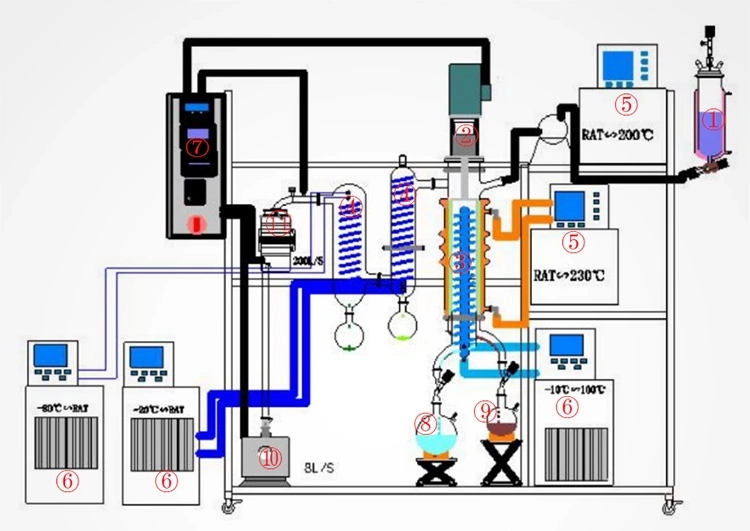

1. Feeding pot

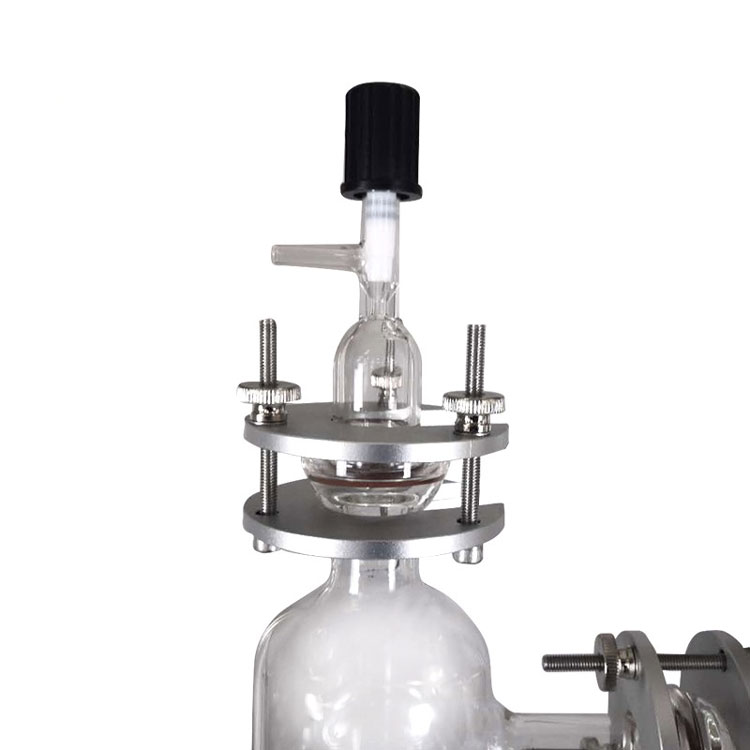

2. Magnetic coupling drives stirring
3. Jacketed evaporator(with condenser inside)
4. condenser
5. Circulating heater(work with jacketed evaporator)
6. Heating and cooling circulator (work with internal condenser)
7. Controlling system(show vacuum degree, control and
display 2.rotary speed)
8. Distillate Receiving bottle(low boiling point)
8. Residue Receiving bottle(high boiling point)
10. Rotary vane vacuum pump
11. Diffusion pump
______________________________________________________________
SERIES PRODUCTS

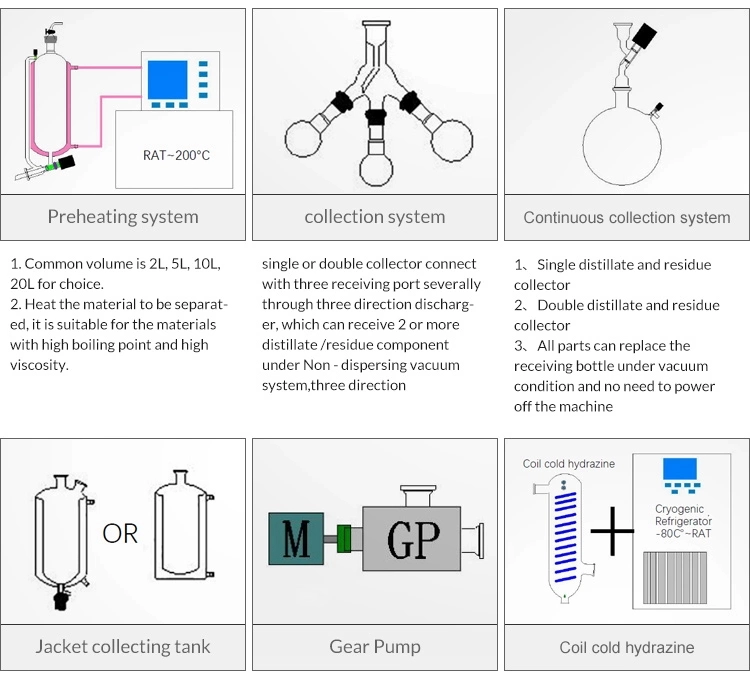

Corollary Equipment
1.Lower the oxidation speed of heating oil, lengthen the work life of heating oil, so that can reduce the change frequency of heating oil.
2.Used in wide temperature range, the maximum point can reach 300℃
3,More safe, because of fully enclosing, it can avoid the high temperature oil hurt operators.
