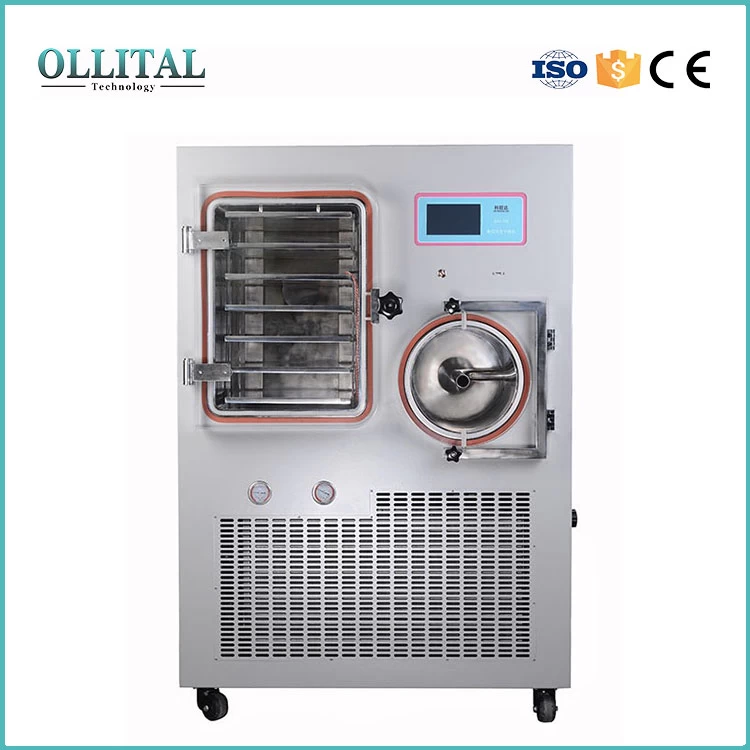

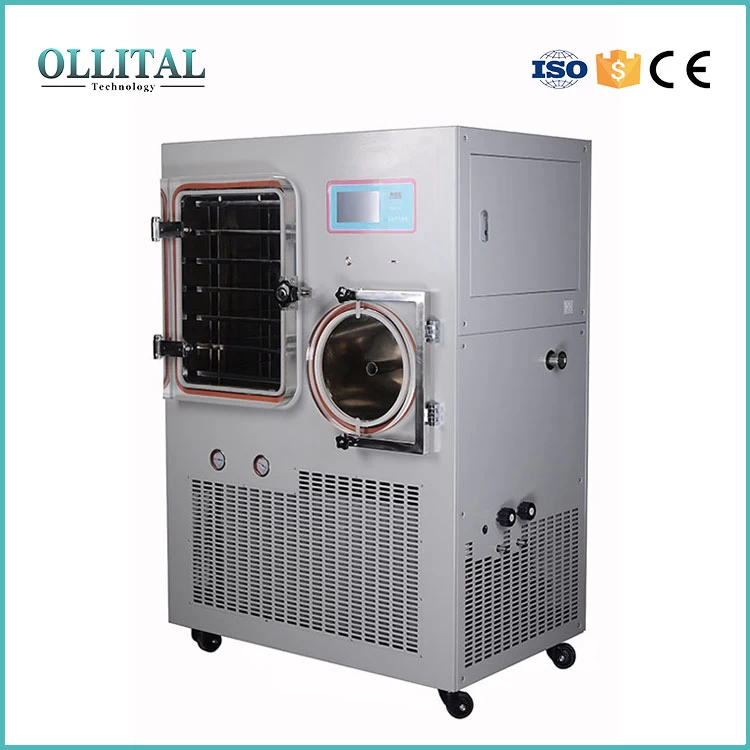

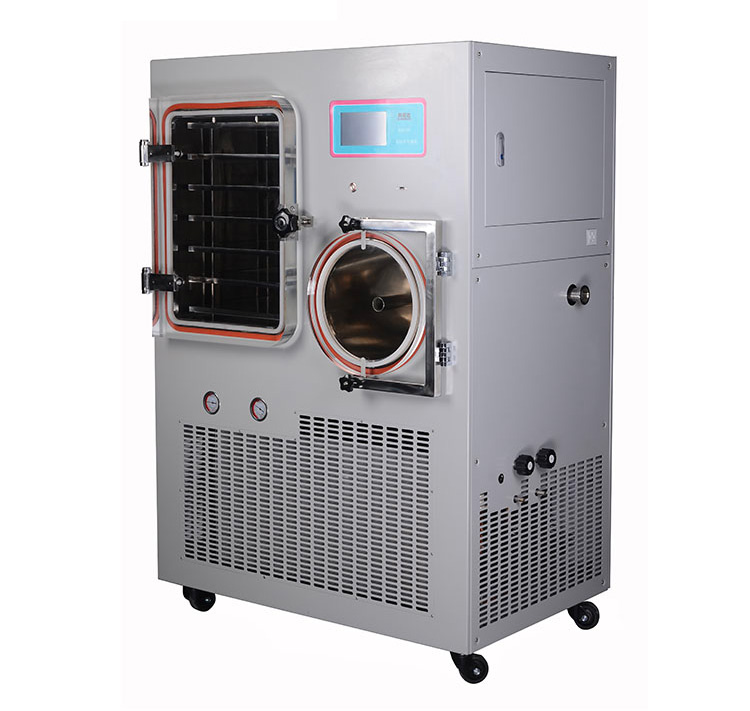

Industrial Vacuum Test Type Freeze Dryer For Drying Pharmaceutical and Chemical Foods
|
Classical type
|
OLT-FD-20
|
OLT-FD-30
|
OLT-FD-50
|
OLT-FD-100
|
|
Freeze-dried area
|
0.3M2
|
0.4M2
|
0.5M2
|
1M2
|
|
Number of plate
|
3+1
|
3+1
|
4+1
|
6+1
|
|
Plates space
|
50mm
|
50mm
|
50mm
|
70mm
|
|
Plate size
|
270*400*15
|
300*340*15
|
360*480*15
|
360*480*15
|
|
Plate temperature
|
-50℃ to 70℃
|
-50℃ to 70℃
|
-50℃ to 70℃
|
-50℃ to 70℃
|
|
Cold trap temperature
|
≤-75℃
|
≤-75℃
|
≤-75℃
|
≤-75℃
|
|
Water for cold trap
|
4KG/24Hr
|
6KG/24Hr
|
8KG/24Hr
|
15KG/24Hr
|
|
Defrost
|
36V electric defrost
|
Natural defrost
|
Natural defrost
|
36V electric defrost
|
|
Voltage
|
AC220V/50Hz
|
AC220V/50Hz
|
AC220V/50Hz
AC380V/50Hz
|
AC380V/50Hz
|
|
Dimension
|
800*800*1550
|
880*735*1320
|
960*785*1450
|
1020*780*1700
|
1.Dry chamber door and cold well door adopt aviation acrylic materials with high strength and no leakage
2.Seven-inch true color industrial touch screen, high control precision, stable performance, easy to operate
3.Internationally famous brand compressors, energy efficient, more stable
4.Inflator valve, drain valve, high vacuum safety diaphragm valve, can be connected with inert gas, extend material shelf life
5.Manual, automatic model for choice, manual mode for exploring the process; automatic mode for mature technology, one button operating.
6.Monitoring screen; real-time monitoring of plate temperature, cold trap temperature, vacuum and other operating conditions
7.Data record mode, data record multiple selection, data export and other functions
8.Two temperature control modes can be switched at any time; standard temperature rise and fall mode, with smooth temperature control mode
9.Freeze-drying curve query function, you can view the temperature, vacuum and other curves at any time.
10.Can set user level and permissions password, users enter into the manager system based on the permissions
11.This machine can store 40 sets of freeze-drying process, each set can set 36 segments
12.The machine use 36V electric defrost, compare with non-electric defrost, the speed is faster and safety grade is higher.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
