Industrial Wide Voltage Input Fanless Box PC
Product Introduction
Designed to streamline industrial automation processes such as factory control and product lifecycle management, all embedded box PCs are reliable, flexible and low-maintenance, and are the perfect choice for machine vision architecture.
| Specifications |
optional configurations |
| Chassis |
All aluminum case with teeth, sandblasted and oxidized black |
Other colours can be customized |

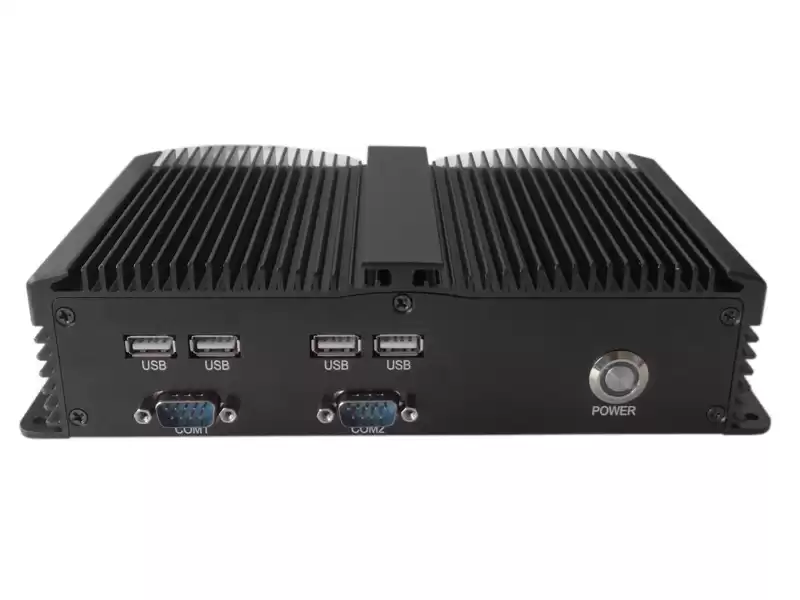

| Front |
With power indicator switch; 2COM; 4USB2.0 |
Customizable with customer logo or more serial or parallel ports |

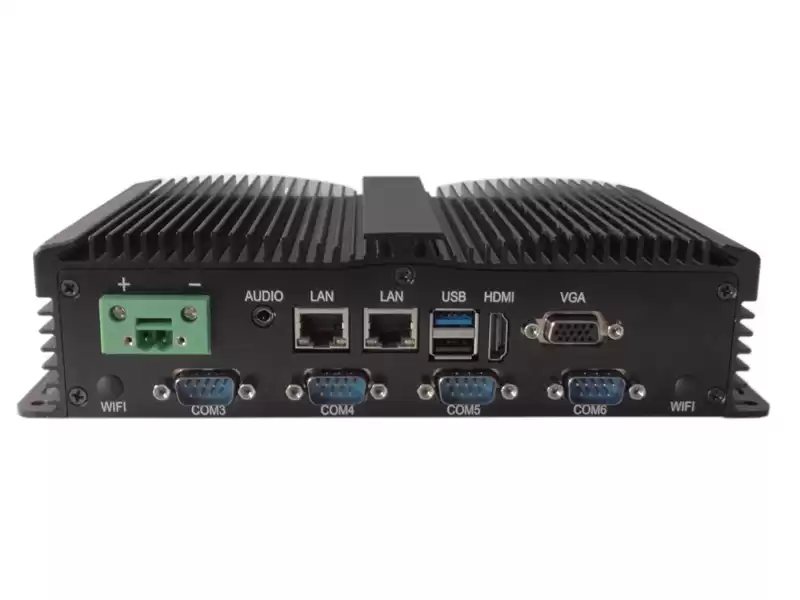

| Back |
DC input; VGA + HDMI display; 1/2USB3.0; 2RJ45 gigabit network port; Line out + MIC in; 4COM; 2 antenna aperture (support WIFI or 4G) |
|
| Hard disk rack |
Motherboard support for MSATA SSD |
|
| Adaptive Motherboard |
Dedicated Soldered Onboard J1900 or 4th generation CPU for motherboard |
|
| CPU/GPU |
J1900 |
Optional Soldered Onboard Intel Pentium 3805U/i3/4010U/i7 4500U |
| Memory |
4G DDR3 |
Optional 8G notebook memory |
| Hard Disk |
64G MSATA |
Optional 32G/128G/256G up to 1T mSATA SSD |
| Ethernet |
2LAN (Intel Gigabite Network) |
|
| Display Interface |
VGA+ HDMI |
|
| Size |
234*135*57.5mm |
Net/Gross Weight |
1.5/2KG |
| Power Supply |
Standardized 12V@5A adapter |
Optional 9~36V wide voltage input |
| Installation mode |
Bracket installation |
Product Features
■ Soldered Onboard J1900 or i3/i5/i7 4th Generation U series CPU
■ 2LAN(Intel gigabite network chip)
■ 6 USB(1 or 2USB3.0)
■ Flexible configuration, optional memory hard drive of various capacities
■ Support VGA+HDMI dual display
■ Optional 9~36V wide voltage input
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

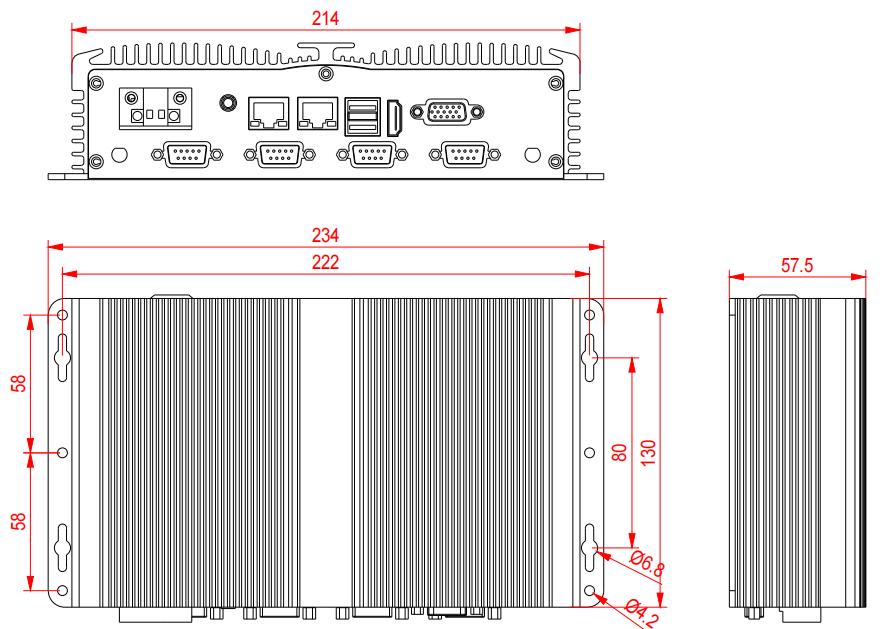

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
