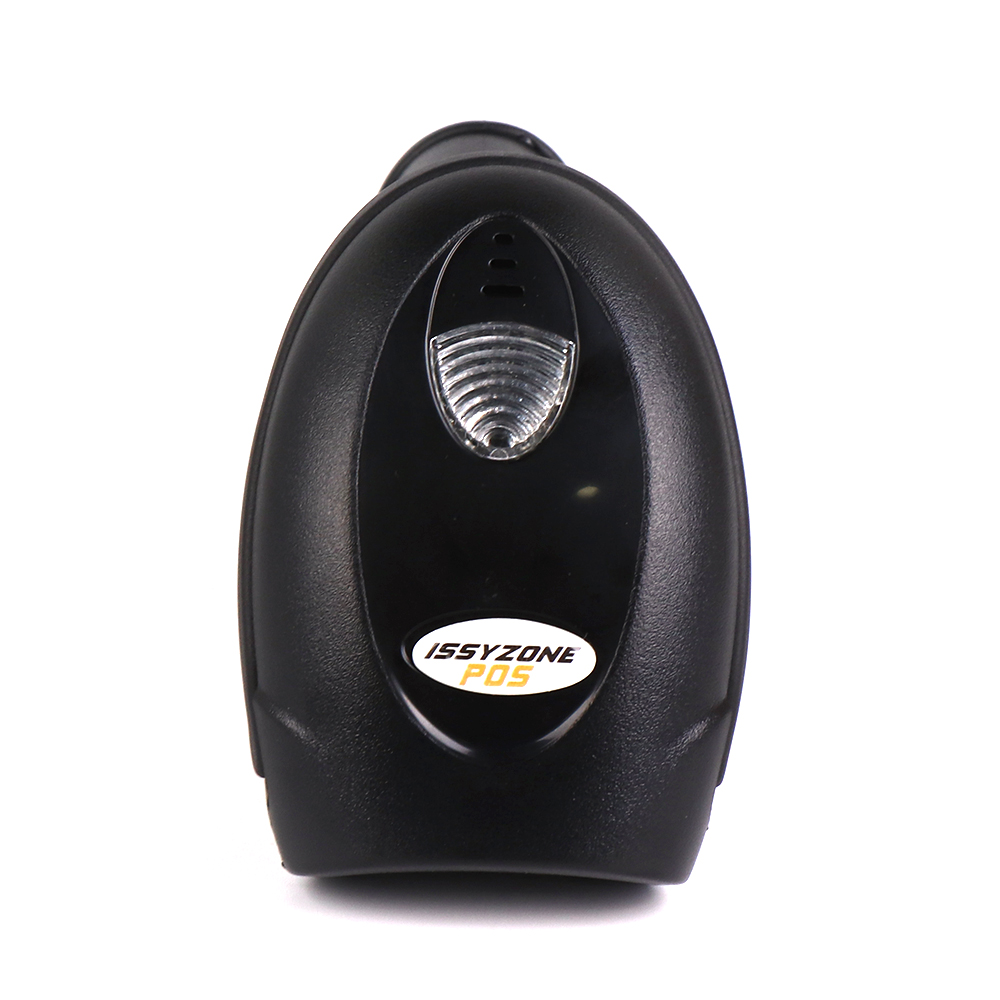

Industrial Wireless & Bluetooth 4.0 1D CCD Barcode Scanner IPBS044

qr reader
1.Trial order acceptable
2.High quality, reasonable
3.Reasonable Price



Performance Parameter
Light Source 617 nm Red LED
Decode Capability UPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39
code 39 Full ASCLL. China Post Plessey. MSI, code 93
Code 128, Indutrial 2 of 5 Interleave 2 of 5 Code 11,
ISBN, ISSN, Code 32 (Italian phram code), Code 39
SEN [5S, Code 32 dalian pharr tude). Cude 39
extended, NVE-18, PZN, Ean-14, LOG Mars, GS1-128
xtended, nve-ia, PZN, Enn.14. LG Mmnts, gs1-128
and lTF-14, SISAS,GS1Omnidirectonal, GS1 Limited,
Aviation25 RSS 14.
Scanning Type CCD Linear sensor
Scan Rate 200 scans per second
Trigger Mode Manual /continuous scan/Automatica
Roll/Pitch/Yaw Angle 30° /65°/55°
Resolution 1500 points
Depth of scanning field EAN-13 20-280MM(0.33MM)
Print Contrast 20%,minimum reflective
Error Rate 1/5million
Indicator LED,buzzer
Interface Support USB-HID
Wirelss communication Pairing dedicated receiver: 2.41 communication
Pairing mobile bluetooth devices: Bluetooth BLE 4.0
Transmission range 30-50M(Open distance)
Memory capability ≤512000 character(Storage mode and inventory mode)
Pairing mode One to One: One scanning gun pair one receiver
One scanner paried with one bluetooth mobile device
Receiving End Dedicated Bluetooth U disk receiver
Physical Parameter
Dimension  L102mm*W71mm*H177mm
Housing Materials ABS+PC
Weight 225g
Cable Parameter 0.6M
Electrical Parameter
Voltage DC 5V±5%
Current 170mA(Operating mode),65mA
Battery Capacity 2200mA
Power Supply DC 5V±@1A
Charge time 5hr
Charge Mode Cable direct charging
Environmental Parameter
Operating Temperature -20℃~50℃
Storage Temperature -40℃~70℃
Humility 5%-95%(no condensing )
LUX 0-100000Lux
Impact Resistance withstands multiple 3m drops to concrete
