Infant size silicone manual resuscitator tw8331

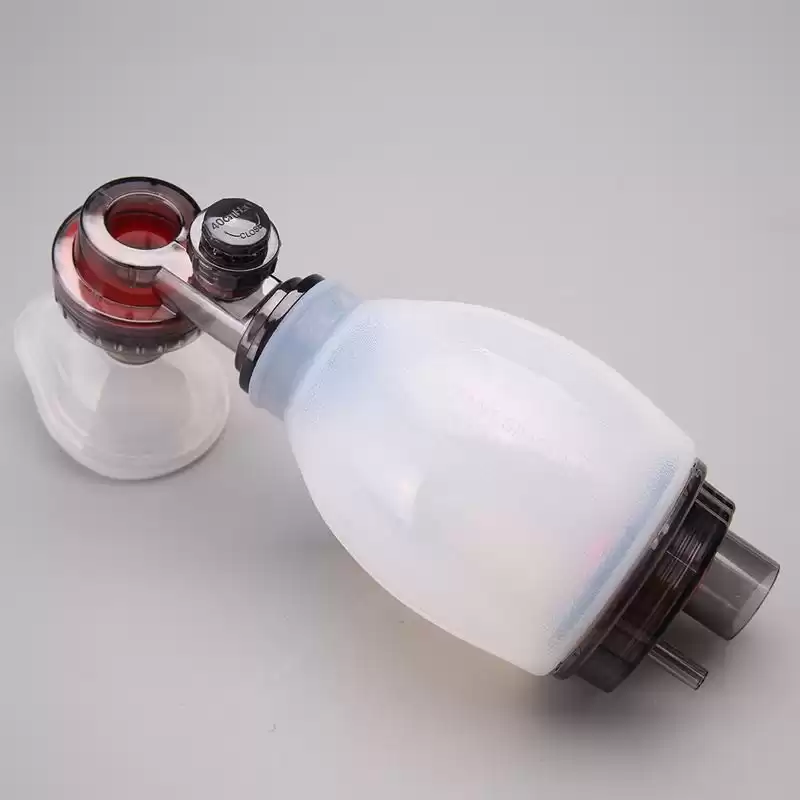

Infant Silicone Manual Resuscitator BVM is reusable and the silicone resuscitator (except mask, oxygen tubing and reservoir bag) can be autoclaved repeatedly for more than 20 times. The soft mask allows for an effective seal on the patient's face. The patient port and the body of the bag swivel 360 degrees. The translucent bag body and components allow for visualization of vomit or occlusions in the system. A comfortable and firm grip is guaranteed for Infant Silicone Bag Valve Mask, ensuring effective ventilation over extended periods.
Technical data
Body weight: 0-10 kg
Stroke volume: 150ml
Resuscitator volume: 340ml
Dimensions(Lenght×Diameter ): 225×85mm
Resuscitator weight: 350g
Pressure limiting valve: 40 cmH2O
Patient connector: ISO Ø22/15 mm
Connector patient: 22/15 (ANSI / ISO)
Recommended operating temperature: -18 ° C- 50 ° C
Storage: - 40 ° C - 60 ° C

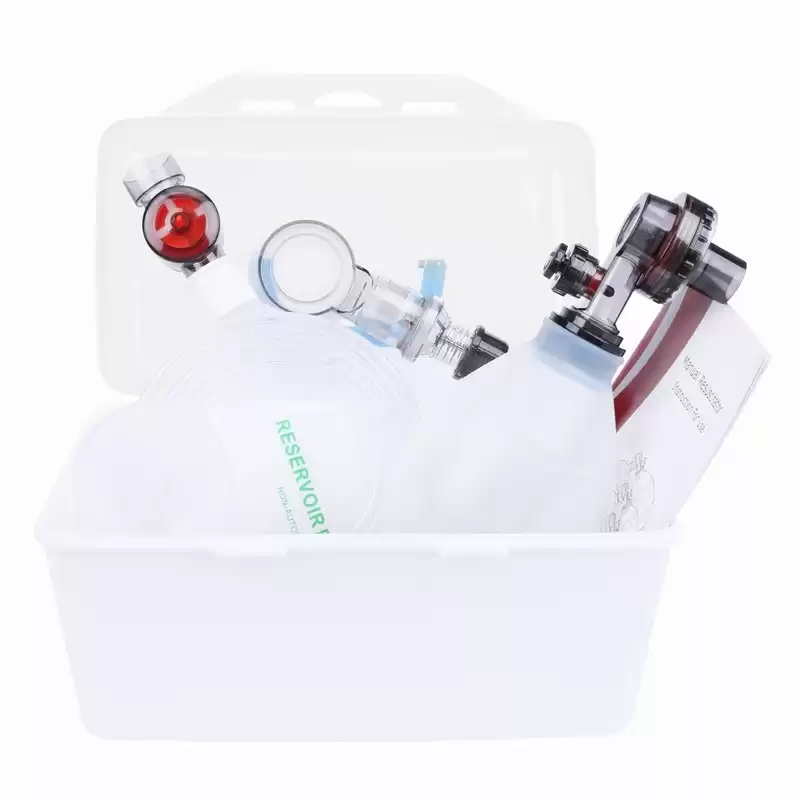

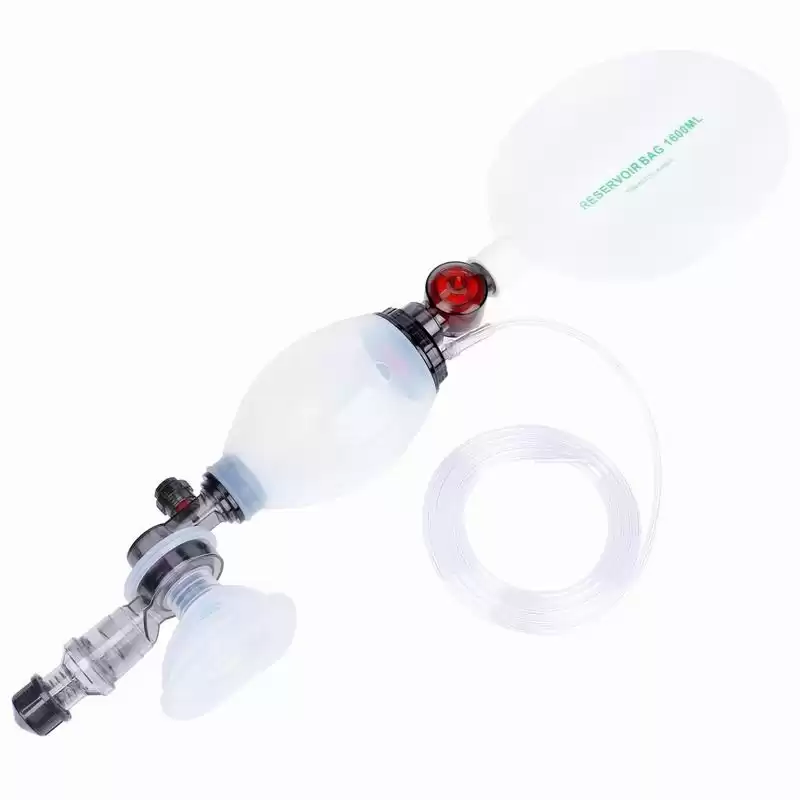

Standard configuration,
One silicone face mask size infant
One oxygen tube 2.1 meters
One reservoir bag 1600ml
Packed in hard plastic case
