Product Introduction

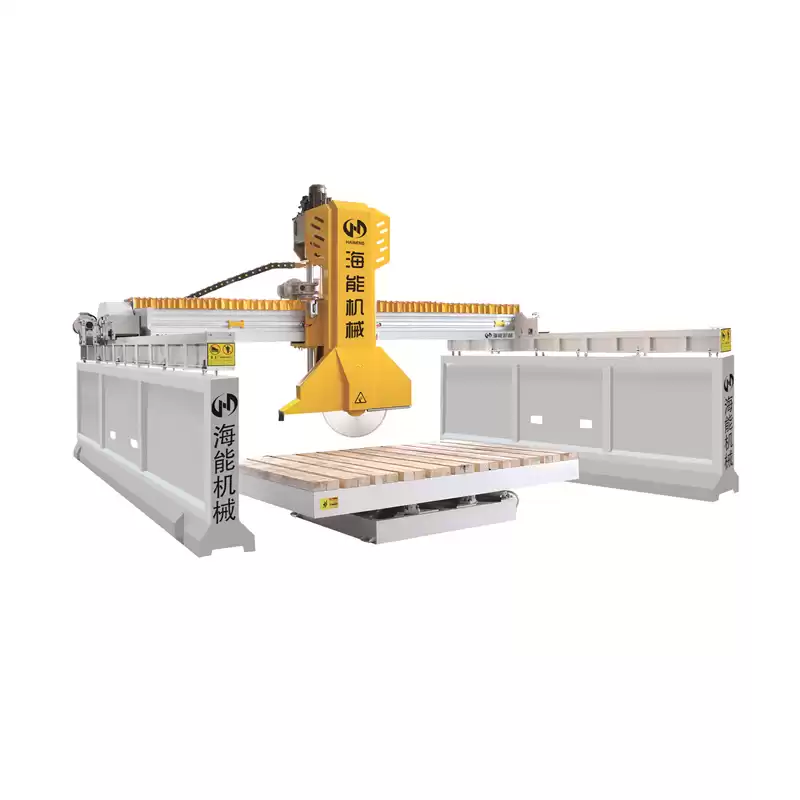

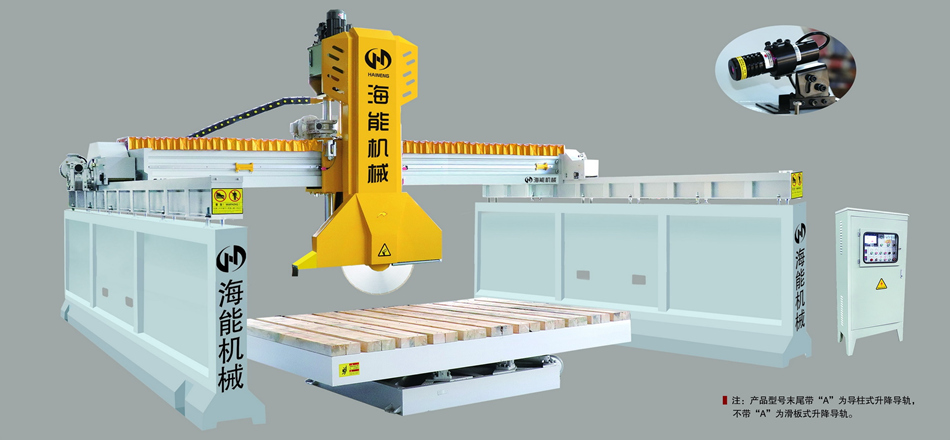

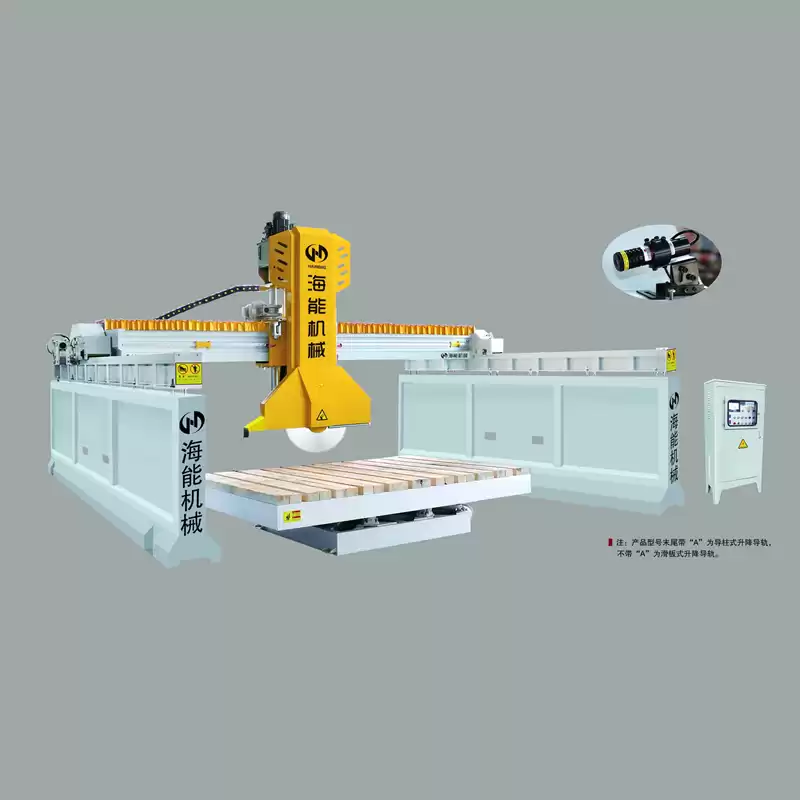

Infrared Bridge Cutting Machine (Conventional/Heavy) adopts microcomputer control and wireless remote control, which makes the man-machine dialogue flexible.

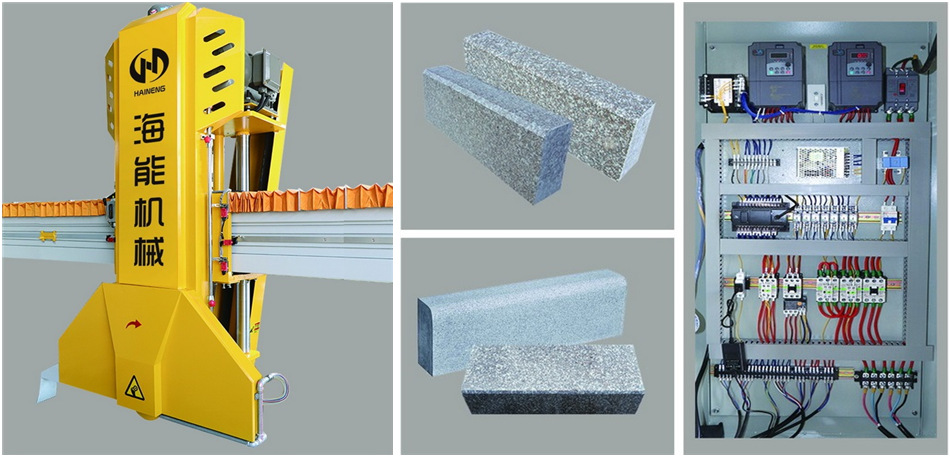

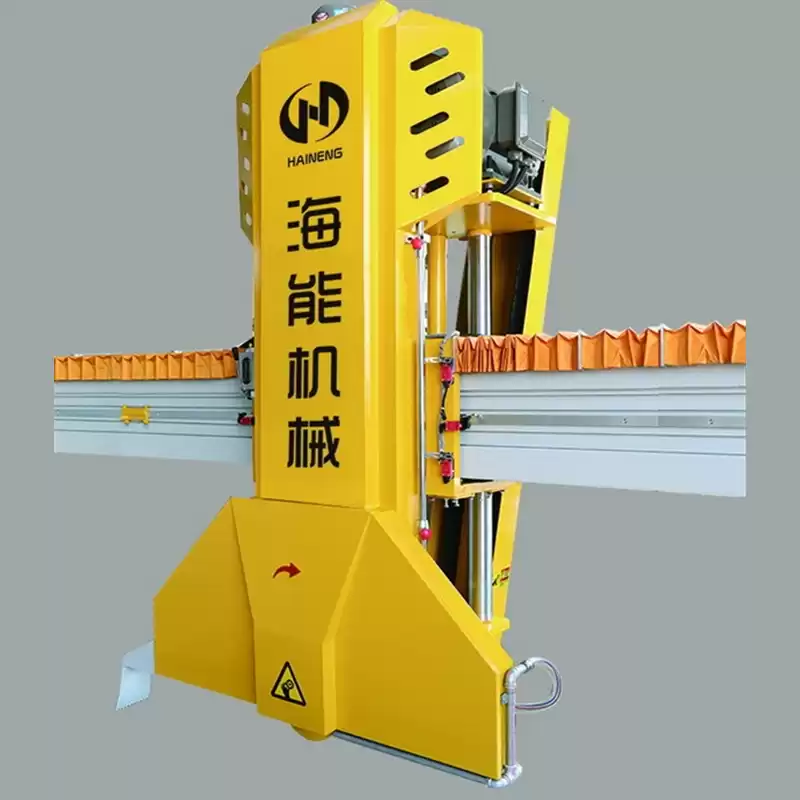

The main control components are all international famous brand components. The cross beam and the head are made of enlarged and heavy-duty structure. The oil-immersed double V-beam rail is equipped with high-power cutting main motor. The horizontal cutting cutter adopts stepless frequency conversion and flexible speed regulation. The knife uses double-mount rails and high-precision encoder counting to ensure smooth and stable accuracy of the machine.
The table is automatically rotated by 0-90 degree, and it can be used for border stone, gravestone, gravestone and other process-like rectangular thick materials and polygon thick materials(table rotation 0-45-90 degree is optional), especially suitable for high value, high precision and high efficiency demand users!
Technical Parameters
|
Infrared bridge cutting machine (conventional/heavy)
|
|
Type
|
unit
|
HZQ-1200A
|
HZQ-1400A
|
HZQ-1600A
|
HZQ-1800A
|
|
Blade diameter
|
mm
|
Φ600-Φ1200
|
Φ800-Φ1400
|
Φ1000-Φ1600
|
Φ1200-Φ1800
|
|
Max. Vertical stroke
|
mm
|
820
|
820
|
950
|
950
|
|
Worktable size (L×W)
|
mm
|
3000×2000
|
3000×2000
|
3000×2000
|
3000×2000
|
|
Workbench rotating degree
|
n°
|
0°-90°/360°
|
0°-90°/360°
|
0°-90°/360°
|
0°-90°/360°
|
|
Power of main motor
|
kw
|
22
|
22
|
30
|
30
|
|
Total power
|
kw
|
27.2
|
27.2
|
38.2
|
38.2
|
|
Water consumption
|
m³/h
|
4
|
4
|
5
|
5
|
|
Dimension (L×W×H)
|
mm
|
6400×4800×4400
|
6400×4800×4500
|
6200×4800×5100
|
6500×4800×5300
|
|
Total weight
|
kg
|
6100
|
6100
|
7100
|
7300
|

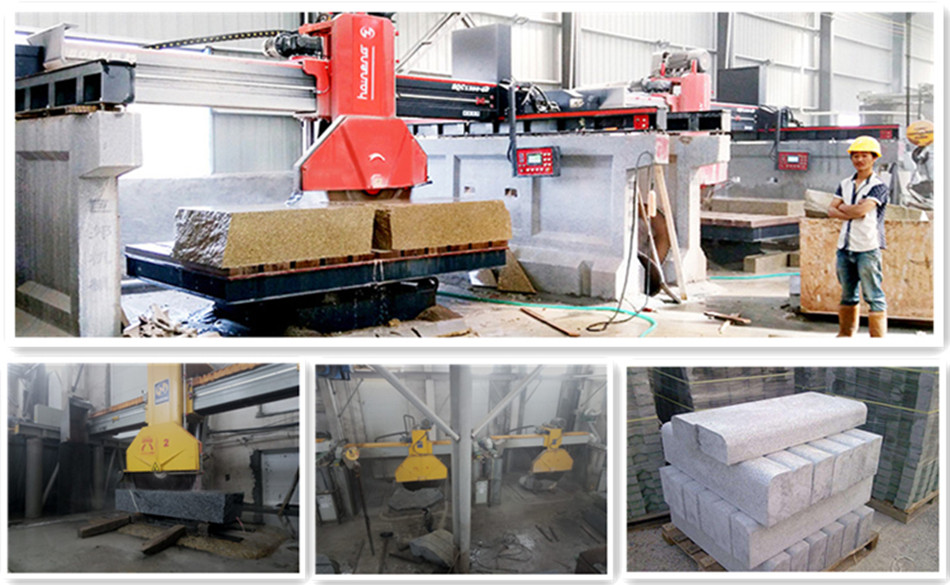

Processing
Loading photos
