Product Introduction

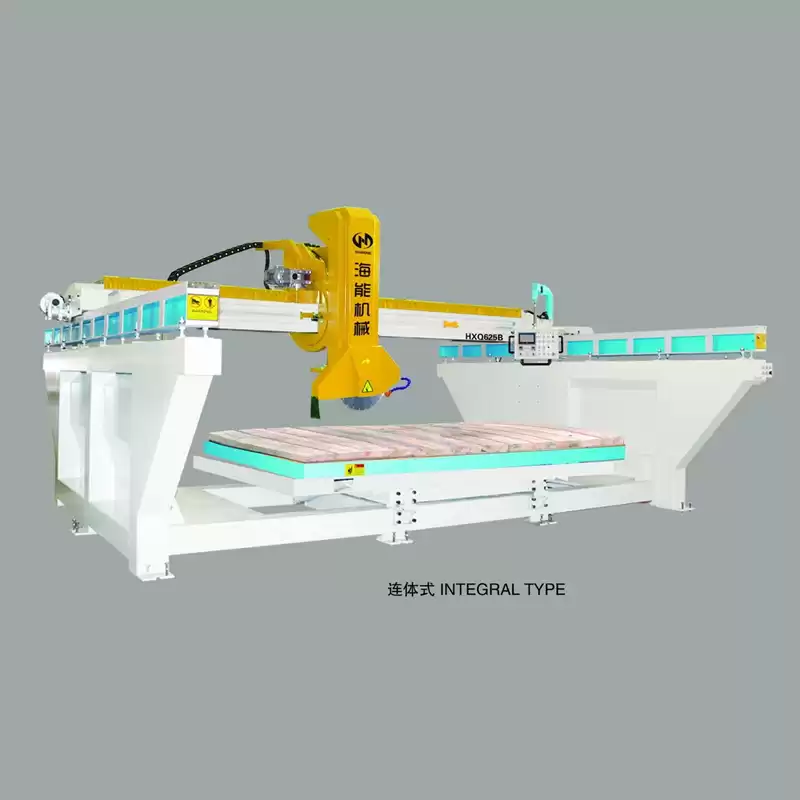

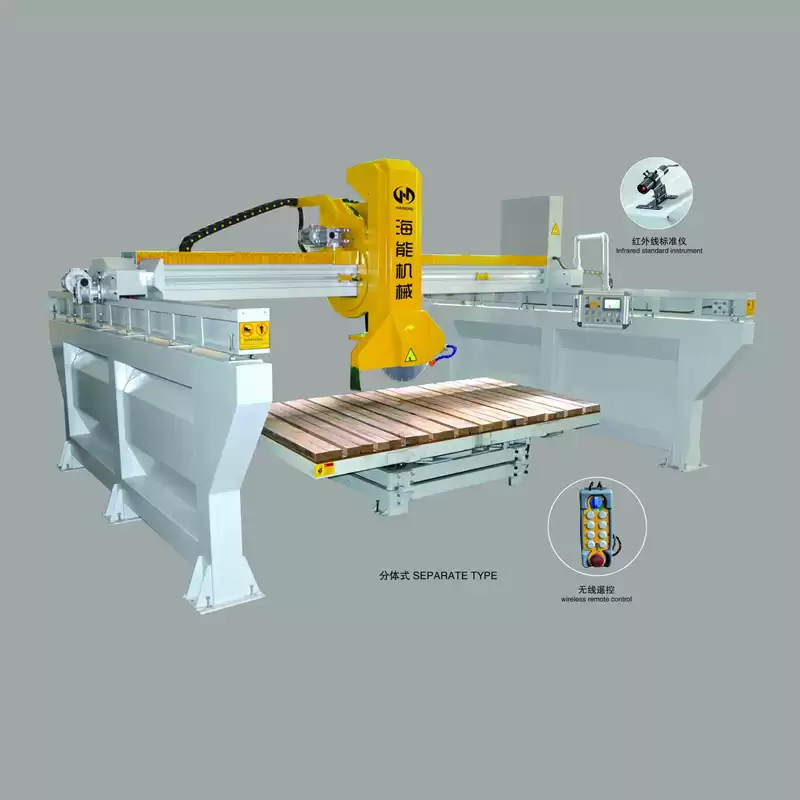

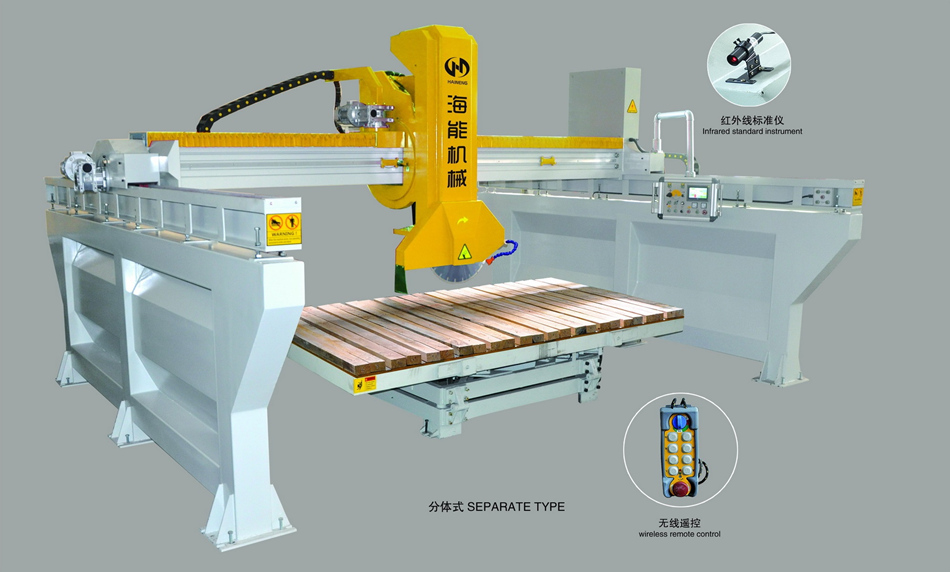

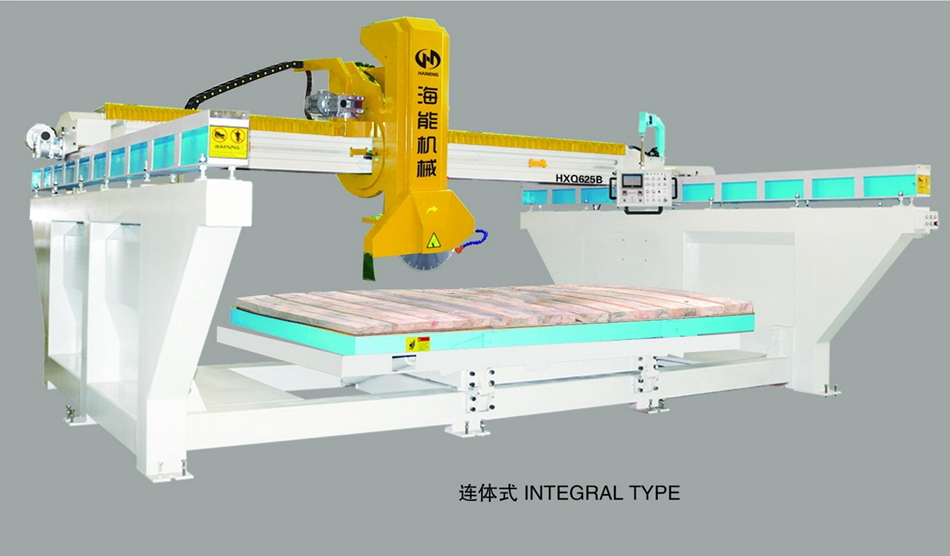

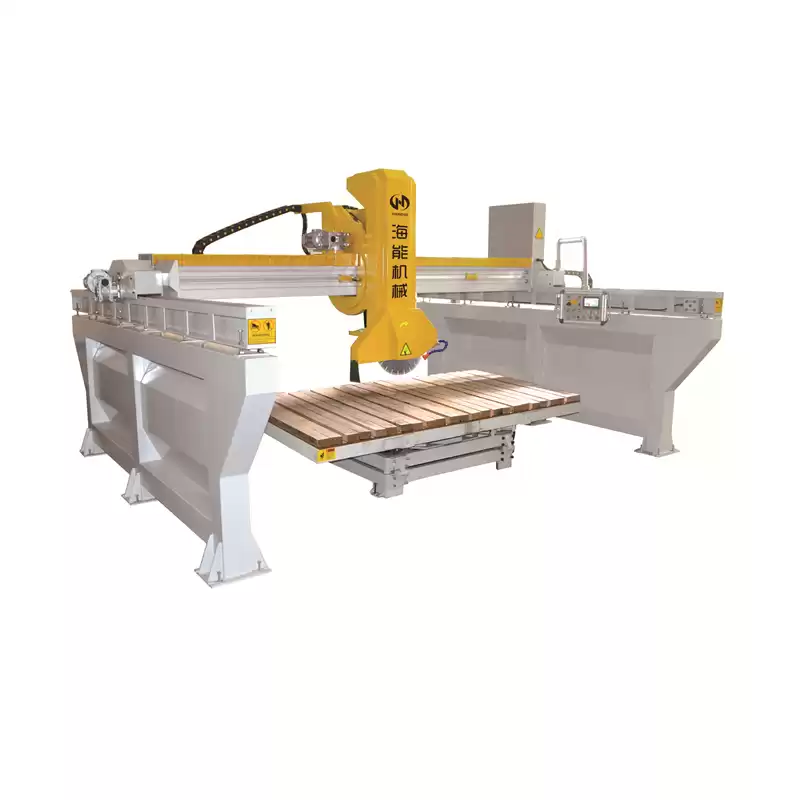

Infrared Bridge Cutting Machine (Conventional Type) adopts computer control, touch operation interface and wireless remote control, and the man-machine dialogue is flexible.

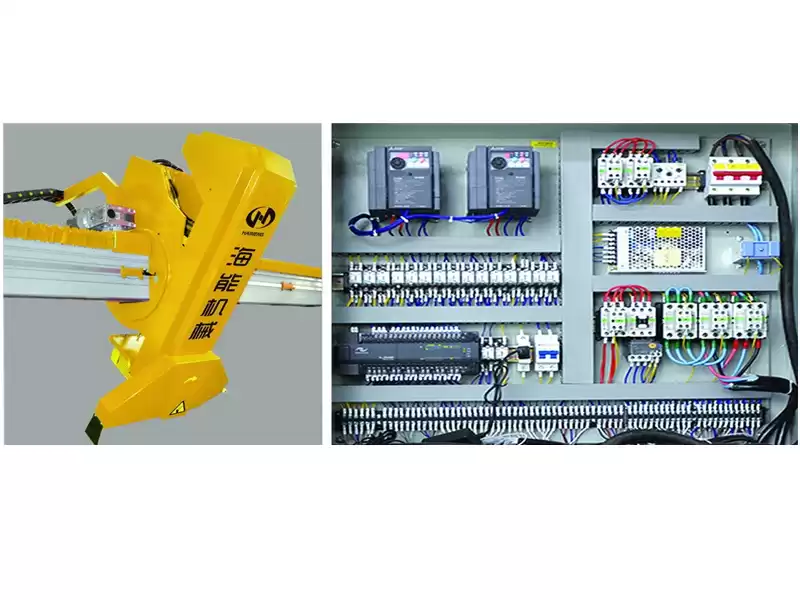

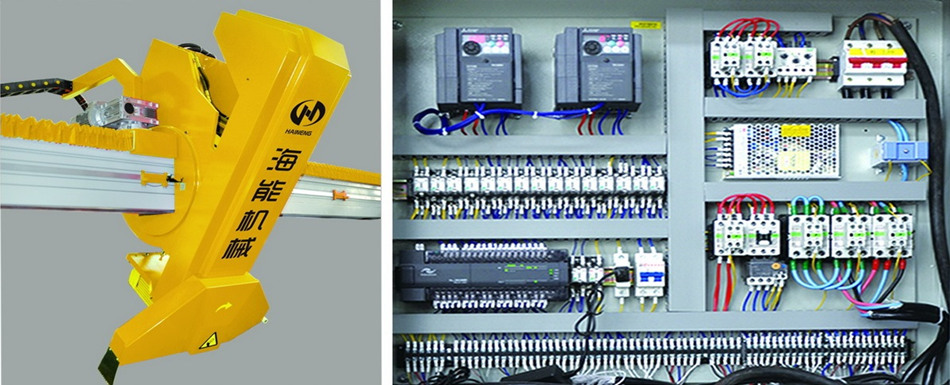

The main control components are all international famous brand components, The beam adopts oil-immersed double V-shaped track, the transverse cutting adopts stepless speed regulation, and the longitudinal segmentation mechanism adopts high-precision magnetic mountain counting to ensure the machine working precision.
The saw blade is automatically tilted by 45 degrees, and the table is automatically rotated by 360 degrees per 45 degrees. It can be jumped and positioned with any angular position and brake. It can cut rectangular, octagonal, circular, round, and small and medium angles shape.
Technical Parameters
|
Infrared Bridge Cutting Machine (CONVENTIONAL TYPE)
|
|
Type
|
unit
|
HXQ-625A
|
HXQ-625B
|
|
Blade diameter
|
mm
|
Φ350-Φ625
|
Φ350-Φ625
|
|
Max. Working dimensions（L×W×H）
|
mm
|
3200×2000×180
|
3200×2000×180
|
|
Workbench size (L×W)
|
mm
|
3200×2000
|
3200×2000
|
|
Workbench turnover degree
|
n°
|
0°-85°
|
0°-85°
|
|
Workbench rotating degree
|
n°
|
0°-90°/360°
|
0°-90°/360°
|
|
Head tilting degree
|
n°
|
0°-45°
|
0°-45°
|
|
Main motor power
|
kw
|
18.5
|
18.5
|
|
Weight
|
kg
|
6500
|
7400
|
|
Dimension (L×W×H)
|
mm
|
6000×4800×2800
|
6000×4800×2800
|

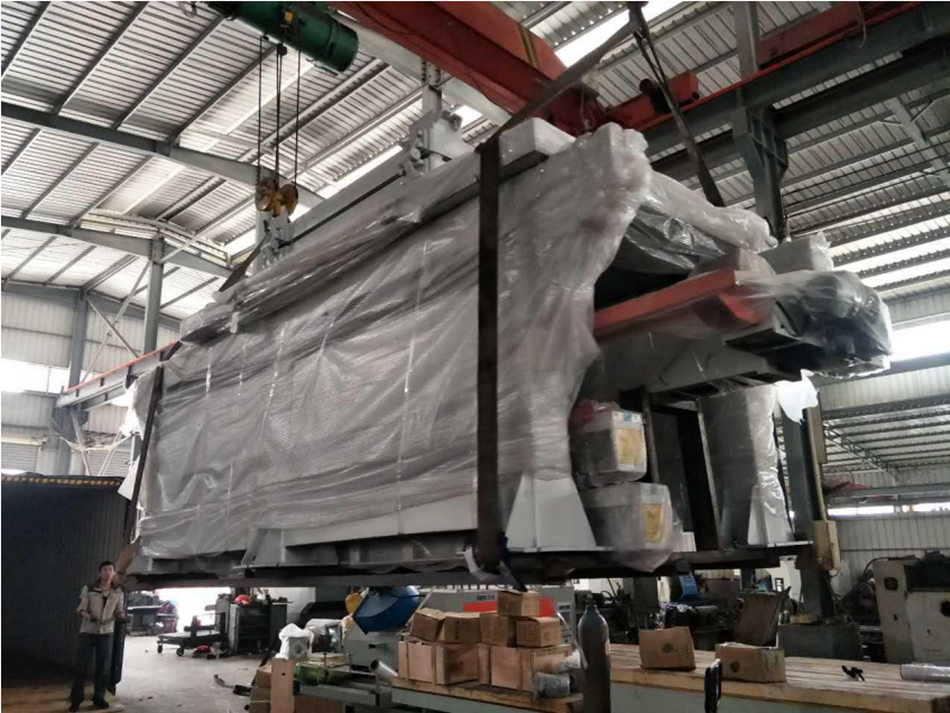

Loading photos
