Product Introduction

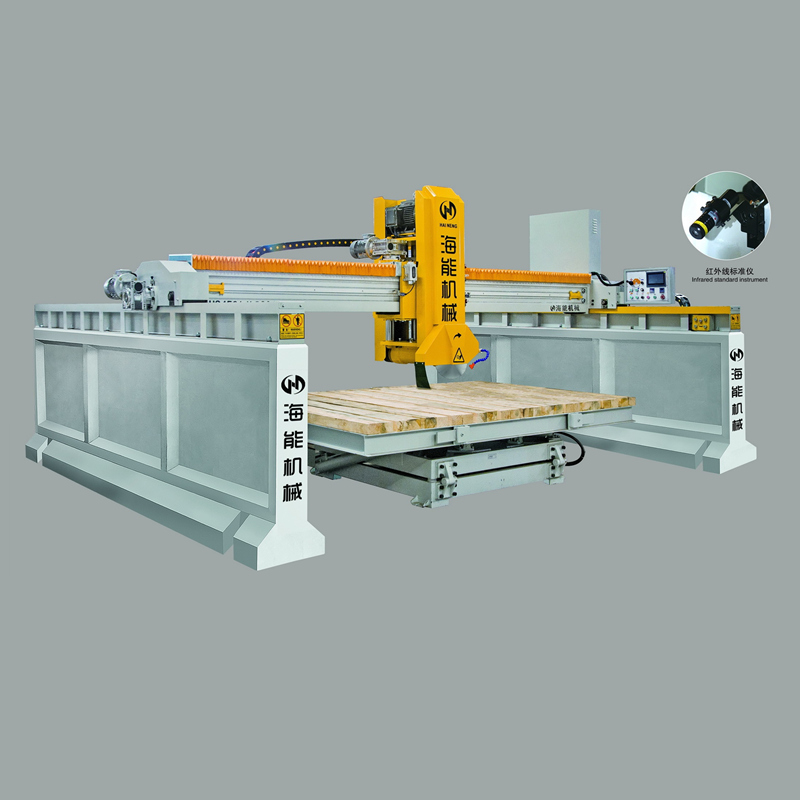

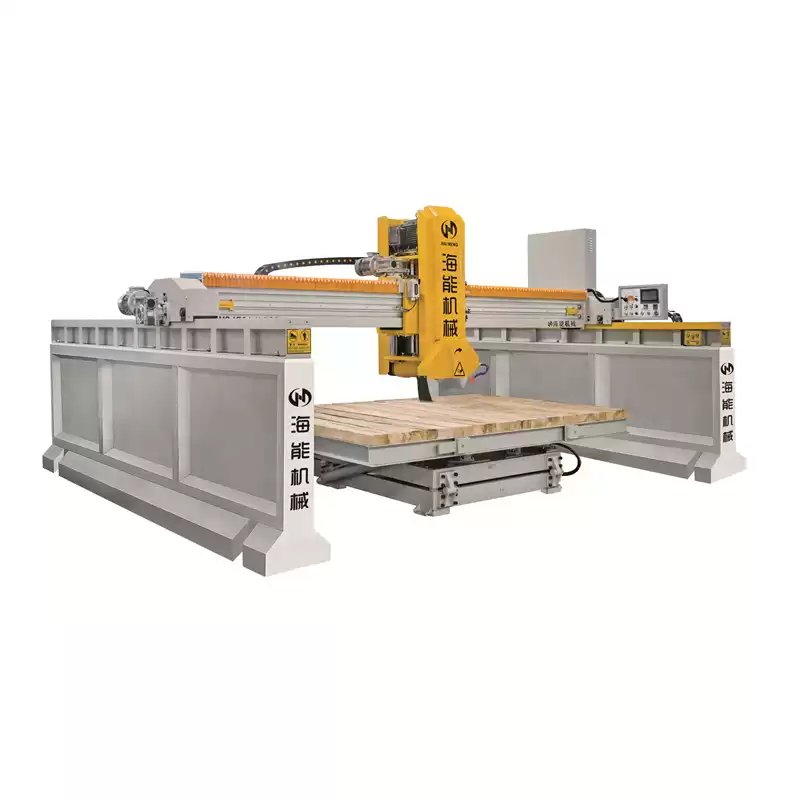

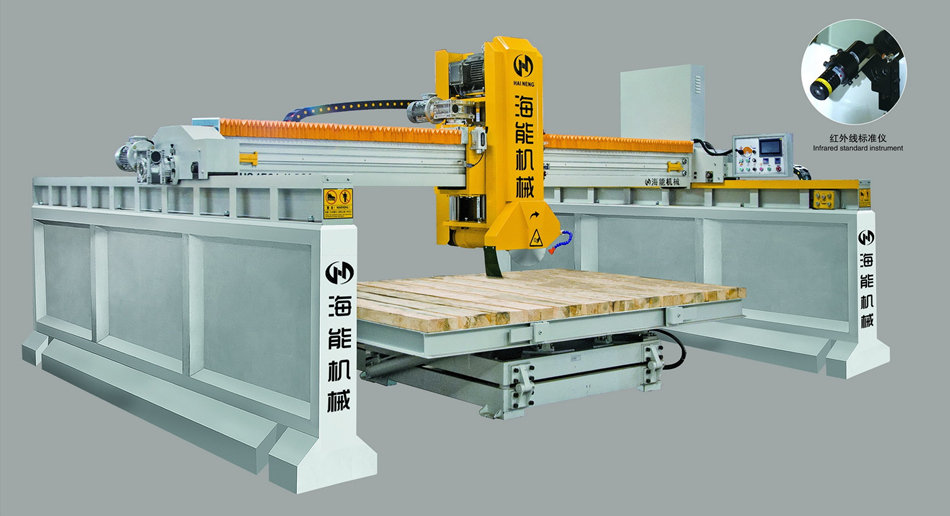

Infrared bridge stone cutter ( Chamfering servo ) adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flexible.
The main control components are all international famous brand components, the cross-beam adopts oil-immersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision.
Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.

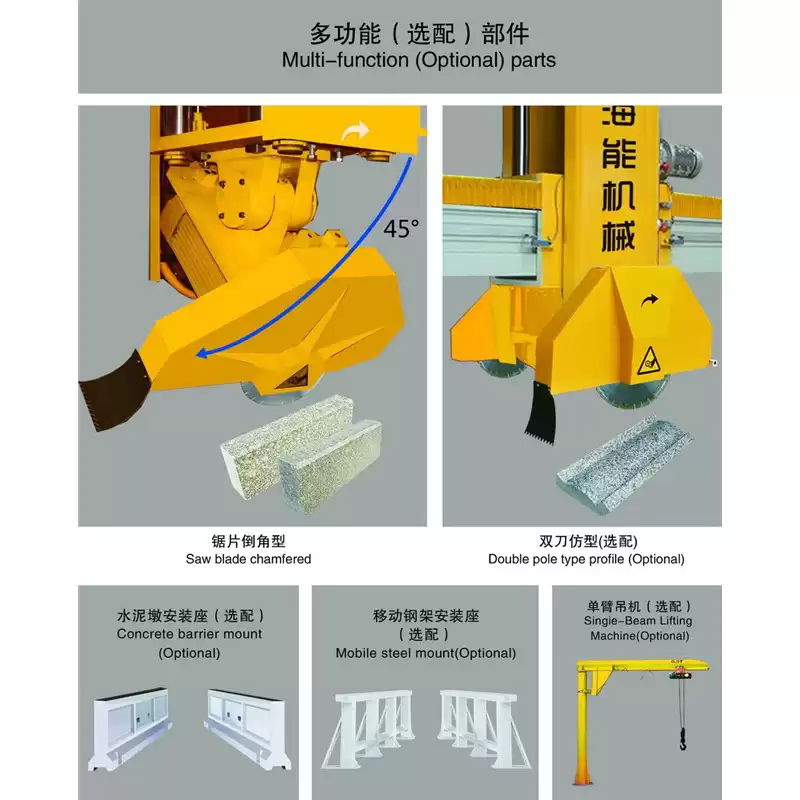

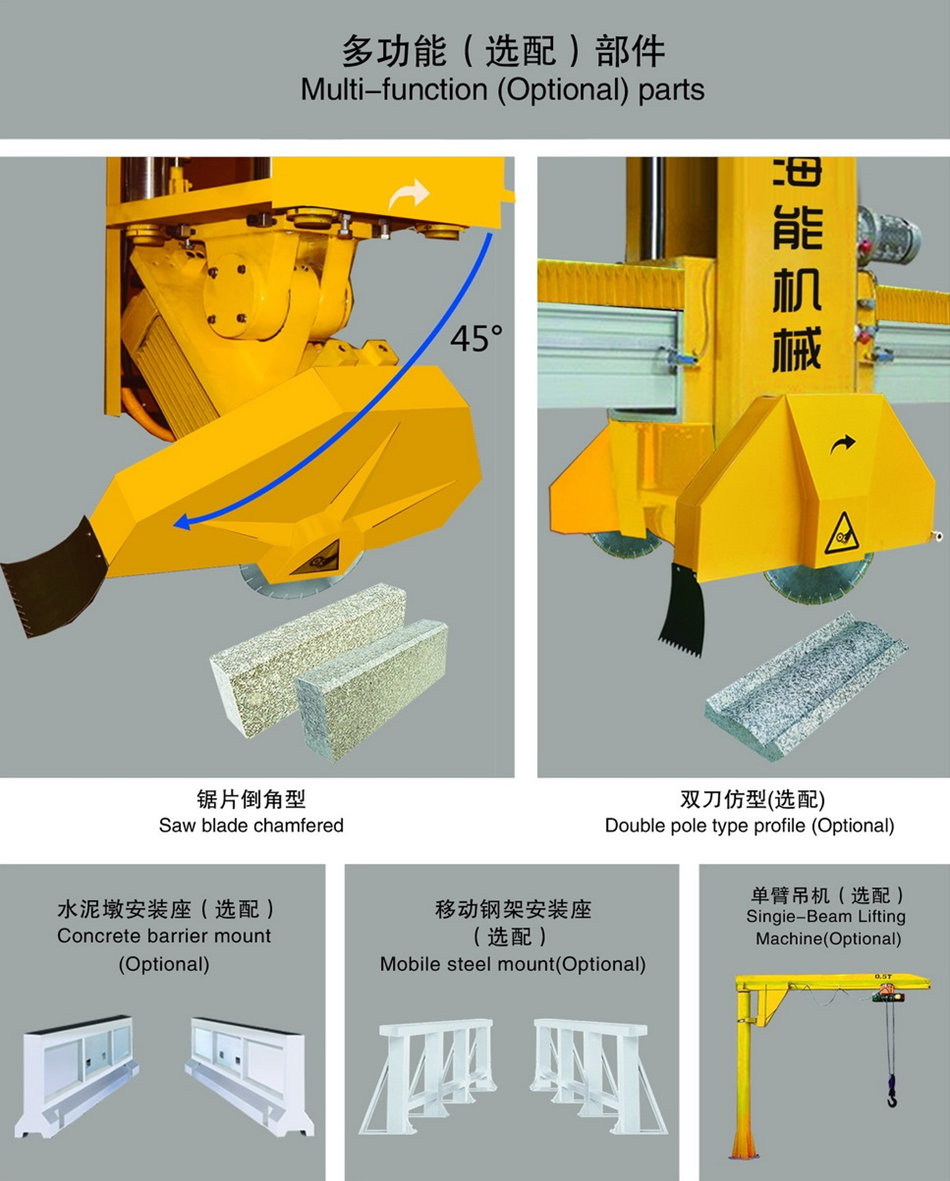

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.
Technical Parameters
|
Infraredbridge stone cutter( Chamfering servo)
|
|
Type
|
unit
|
HQ450A
|
HQ600A
|
HQ700A
|
HQ800A
|
|
Max. Working dimensions（L×W×H）
|
mm
|
3200×2000×100
|
3200×2000×180
|
3200×2000×230
|
3200×2000×280
|
|
Blade diameter
|
mm
|
Φ350-Φ450
|
Φ350-Φ600
|
Φ350-Φ700
|
Φ500-Φ800
|
|
Max.Lifting stroke
|
mm
|
230
|
380
|
480
|
580
|
|
Worktable size (L×W)
|
mm
|
3200×2000
|
|
Worktable turnover degree
|
n°
|
0-85
|
|
Worktablerotating degree
|
n°
|
0-90/360
|
|
Power of main motor
|
kw
|
15
|
18.5
|
18.5
|
18.5
|
|
Total power
|
kw
|
21
|
24.5
|
24.5
|
24.5
|
|
Water consumption
|
m³/h
|
4
|
4
|
4.5
|
4.5
|
|
Dimension (L×W×H)
|
mm
|
6000×4800×3000
|
6000×4800×3200
|
6000×4800×3400
|
6000×4800×3600
|
|
Total weight
|
kg
|
5400
|
5600
|
5800
|
6000
|
