Infrared Color Sorter Machine Working Principle
Infrared color sorter machine utilizes the infrared light spectrum to sort materials. It works based on a series of steps that include:
1.Feeding: Materials to be sorted are fed into the machine.
2.Separation: The materials are separated based on the type of material they are and their size. This step ensures that the materials are properly spaced and positioned for the next step.
3.Imaging: The materials are imaged as they pass through a conveyor belt. An infrared camera captures images of each material as it passes through the belt. The camera is sensitive to different wavelengths, and it detects the color differences in each material.
4.Analysis: As the materials are being imaged, the computer analyses the images and determines the appropriate sorting path based on the material's color. It uses filters to isolate the material's color from the background or other interfering colors.
5.Ejection: After analysis, the machine directs a jet of forced air to blow the undesirable materials away from the desirable ones. These materials are sorted according to their colors and ejected into different storage bins.
6.Collection: The sorted materials are collected in different bins for further processing or sale.
7.Overall, the operation of an infrared color sorter machine is automated, precise, and efficient. It ensures uniform sorting and reduces errors, resulting in high-quality products.
Infrared Color Sorter Machine Features
1.High Sorting Accuracy: Infrared color sorters use advanced sensing and digital processing technologies to achieve high sorting accuracy. They can accurately separate even the smallest variations in shade and color.
2.Multiple Sorting Modes: These color sorters come equipped with multiple sorting modes, including shape, size, and color sorting, which allow users to sort a variety of different materials.
3.Easy to Use: The sorting process is fully automated, which makes it easy to use for both skilled and unskilled operators.
4.Large Capacity: Infrared color sorters feature a large capacity, which allows them to process large volumes of material in a short amount of time.
5.Reduced Waste: These color sorters help reduce waste by accurately separating and removing unwanted materials from the processing line.
6.Low Maintenance: Infrared color sorters require very little maintenance, making them a cost-effective solution for processing facilities.
7.Enhanced Productivity: The sophisticated sorting technology used in infrared color sorters allows for increased productivity, leading to higher yields and profitability for the processing plant.

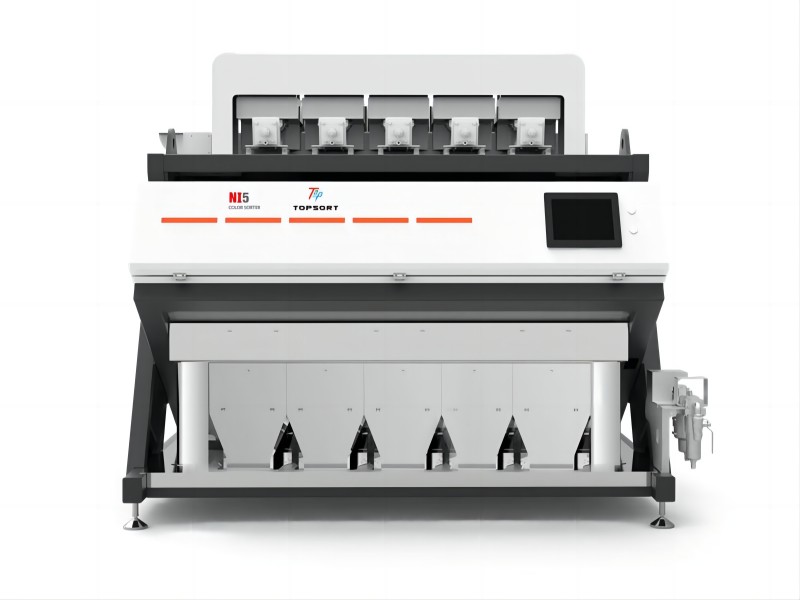

320 Channels Infrared Color Sorter Machine Technical Parameters
| Model |
R5-320 |
| Channles |
320 |
| Power |
3.0kw |
| Weight |
800kgs |
| Dimensions |
2322*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
2500-4000kg/h |
| Air consumption |
<5.0m3/min |
| Air pressure |
0.6-0.8Mpa |

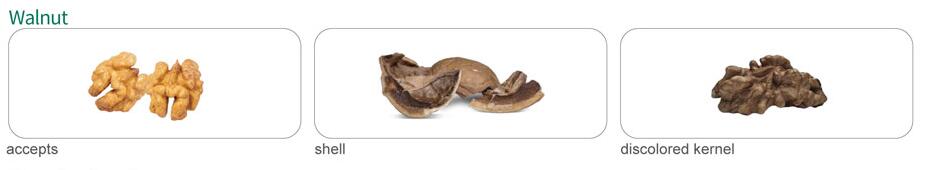

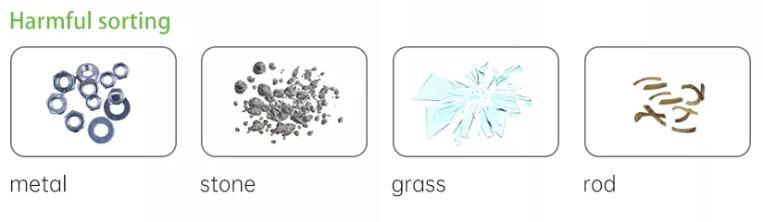

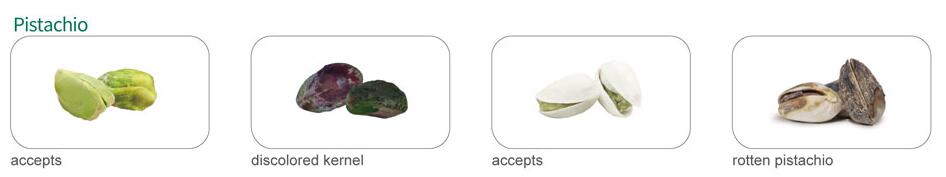

Superb Nuts Sorting Sulotions

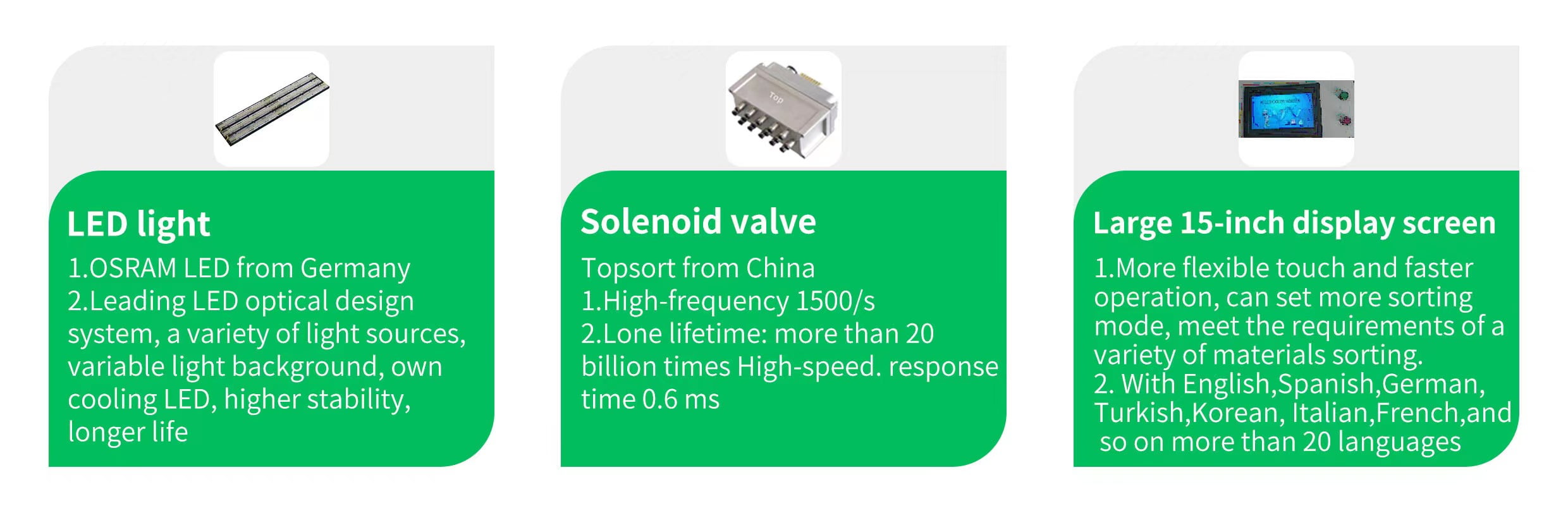

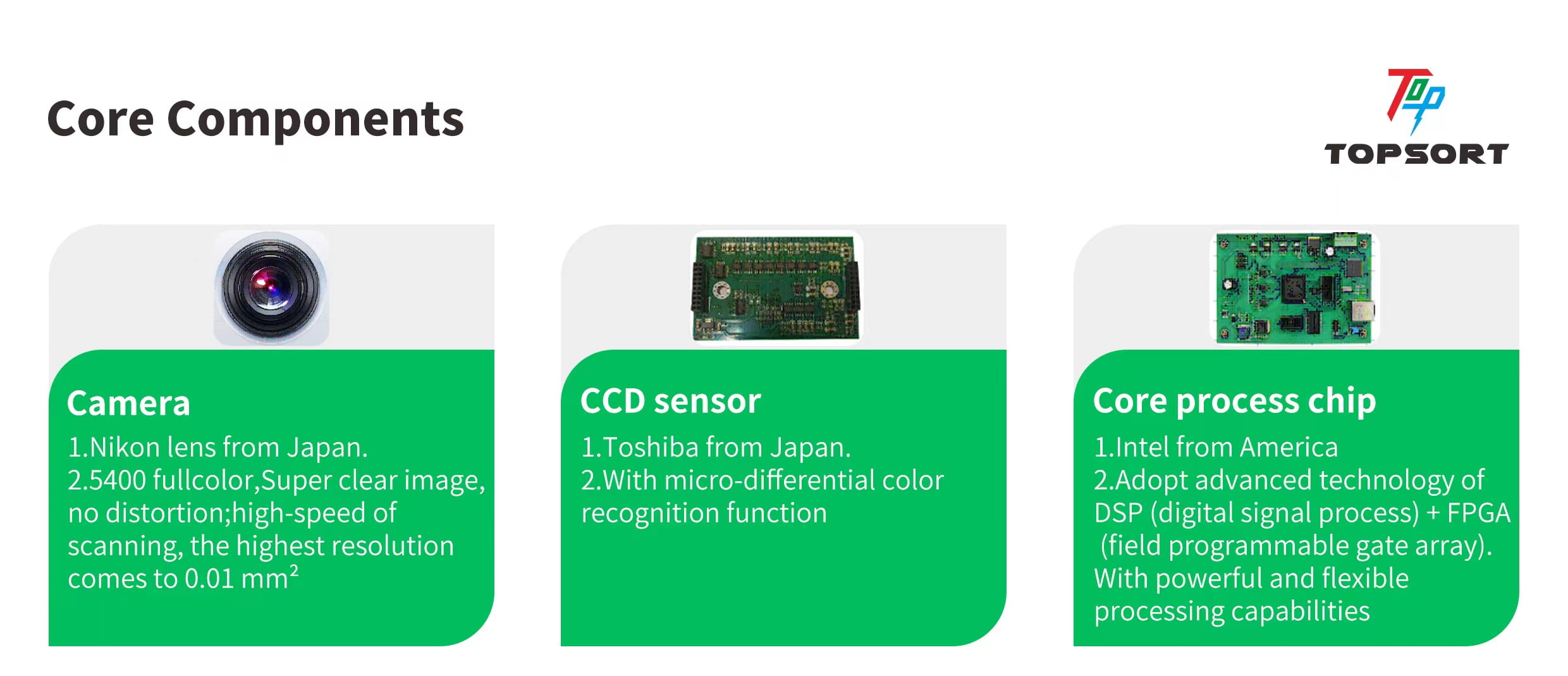

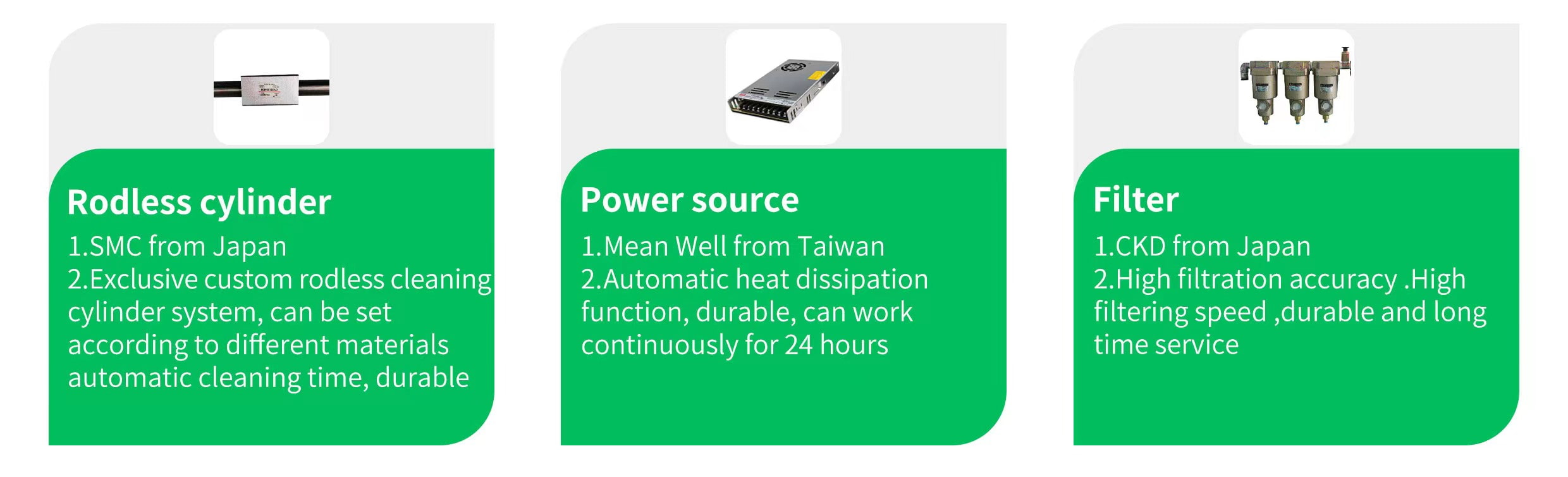

TOPSORT Color RGB Selector Core Advantages
Case Studies
Why Choose TOPSORT Color Sorter
Top technology
♣ Ultra HD imaging technology to see subtle defects with 4 times higher resolution；
♣ High computing power deep learning platform with 4 times more data processing power；
♣ Light source processing system, a unique three-color free switching background plate, the light source can be freely and flexibly switched, suitable for selecting different particles and sheet materials；
♣ Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking；
♣ Perfect after-sales service with big data + cloud interconnection.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global

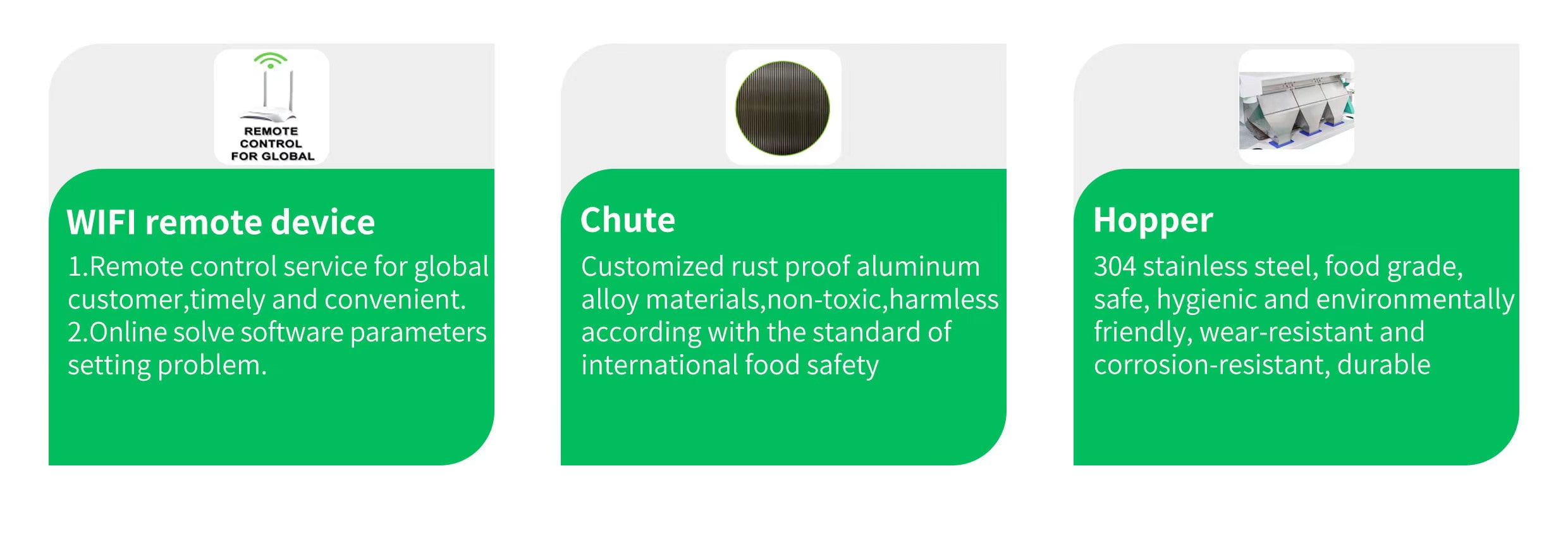

Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
Wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .

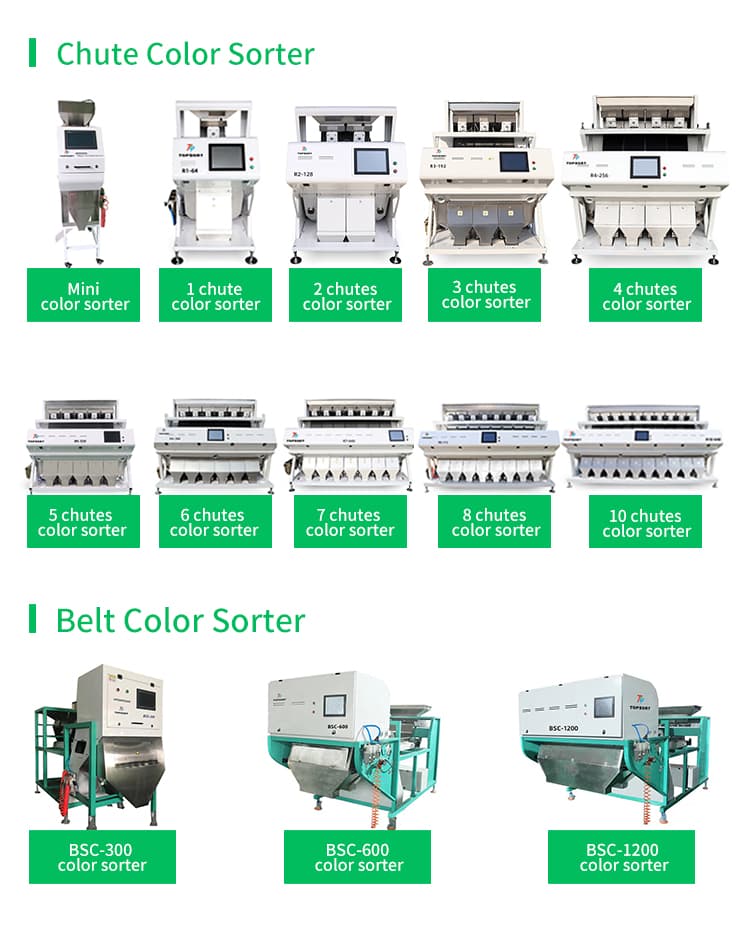

More ModelsYou Can Choose
