Product Introduction

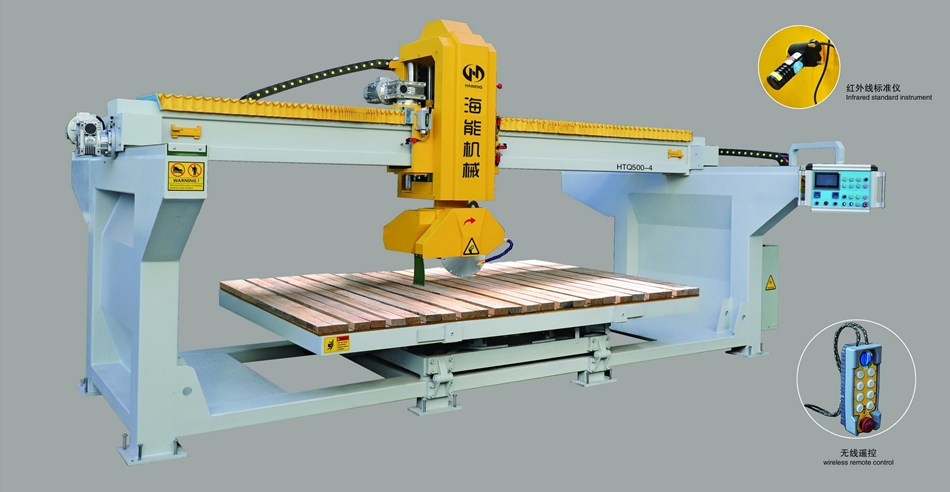

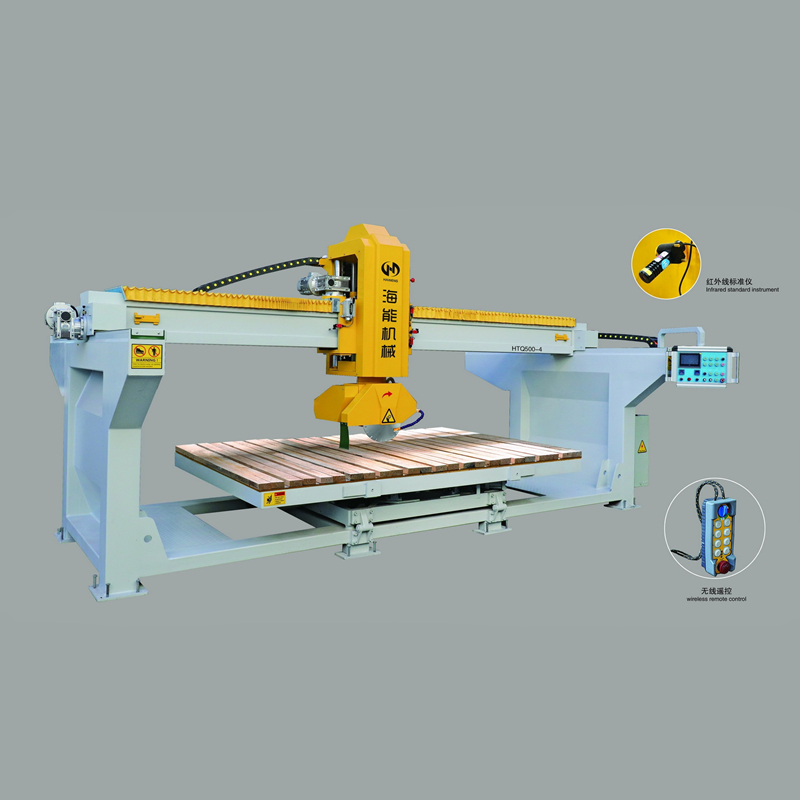

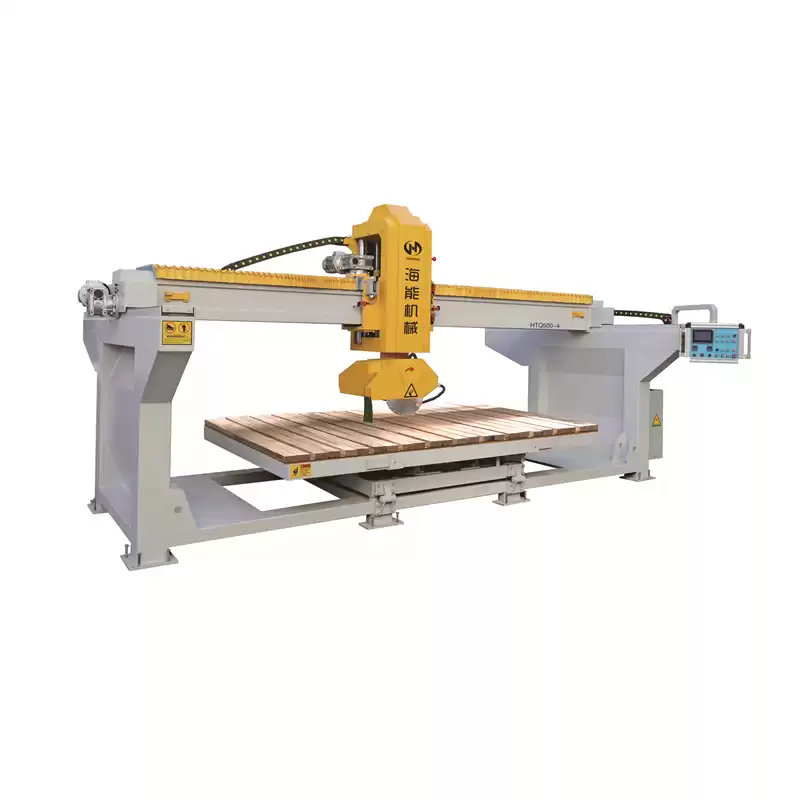

Infrared Integrated Bridge Cutter (Heavy Duty) is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free.

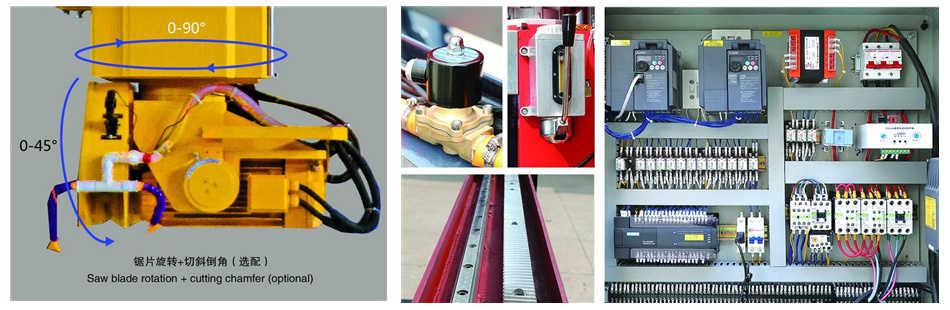

The main control components all use international famous brand components, cross frame oil diffuse type double V track, transverse knife adopts stepless frequency conversion speed regulation, longitudinal splitter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision.
The integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.
Technical Parameters
|
Infrared Integrated Bridge Cutter (HEAVY DUTY)
|
|
Type
|
unit
|
HTQ500A-1
|
HTQ500A-2
|
HTQ500A-3
|
HTQ500A-4
|
|
Blade diameter
|
mm
|
Φ350-Φ500
|
Φ350-Φ500
|
Φ350-Φ500
|
Φ350-Φ500
|
|
Max. Working dimensions（L×W×H）
|
mm
|
3200×2000×130
|
3200×2000×130
|
3200×2000×130
|
3200×2000×130
|
|
Workbench dimensions (L×W)
|
mm
|
3200×2000
|
3200×2000
|
3200×2000
|
3200×2000
|
|

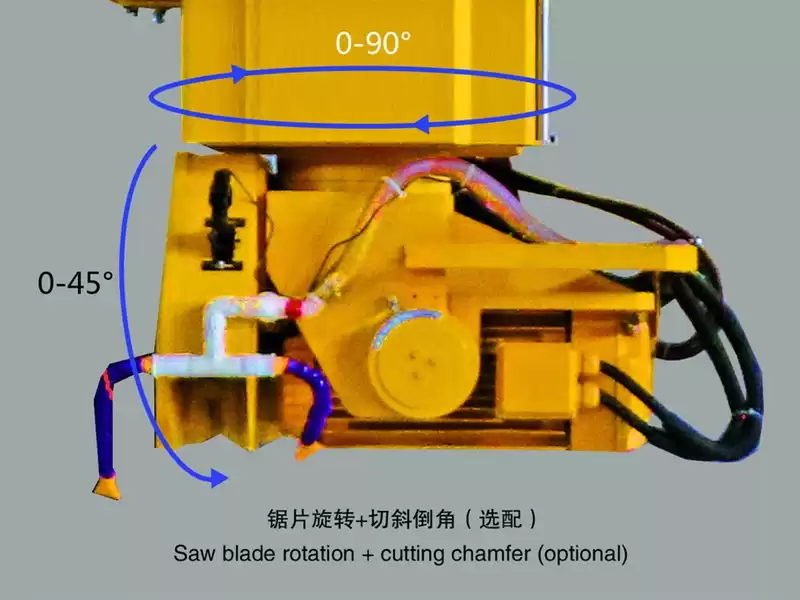

Head rotating degree
|
n°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
|
Blade tilting degree
|
n°
|
---
|
0°-45°
|
---
|
0°-45°
|
|
Workbench rotating degree
|
n°
|
0°-85°
|
0°-85°
|
0°-85°
|
0°-85°
|
|
Table rotating degree
|
n°
|
---
|
---
|
0°-45°-360°
|
0°-45°-360°
|
|
Main motor Power
|
kw
|
18.5
|
18.5
|
18.5
|
18.5
|
|
Water consumption
|
m³/h
|
3.5
|
3.5
|
3.5
|
3.5
|
|
Dimension (L×W×H)
|
mm
|
6000×3500×2600
|
6000×3500×2660
|
6000×3500×2750
|
6000×3500×2800
|
|
Total weight
|
kg
|
6500
|
7000
|
6500
|
6500
|

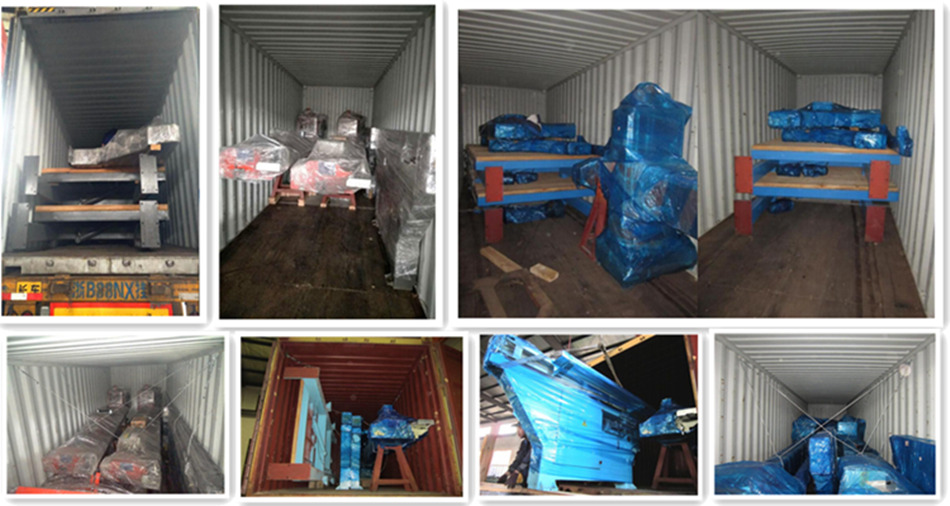

Loading Photos
