Product Introduction

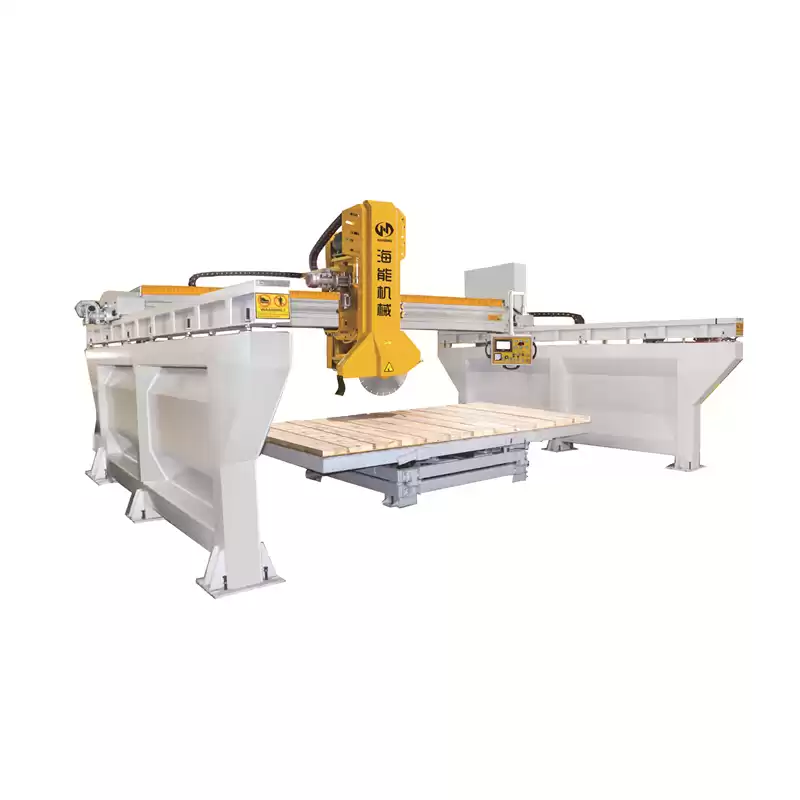

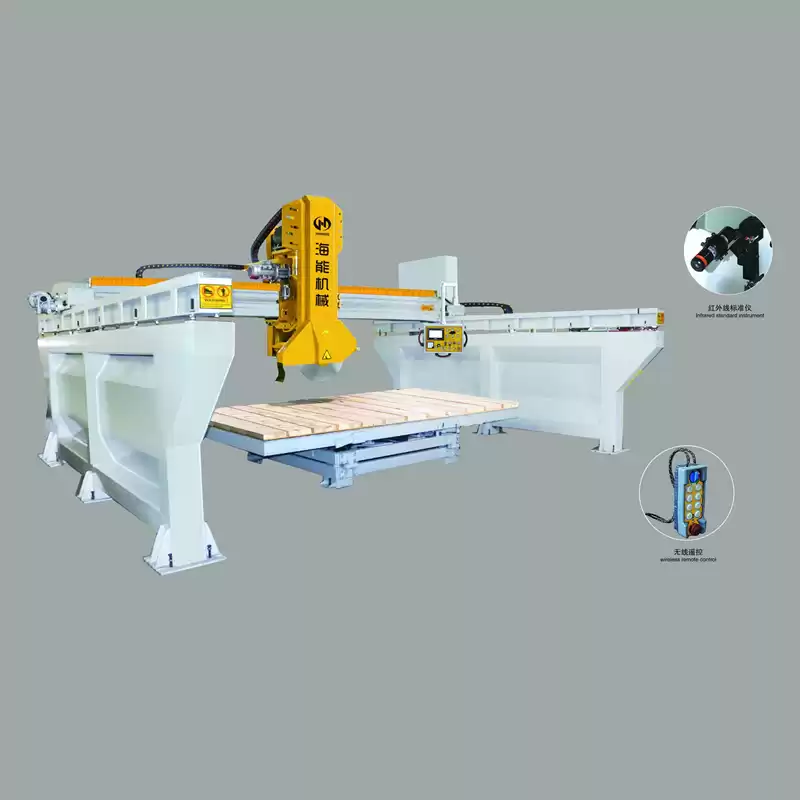

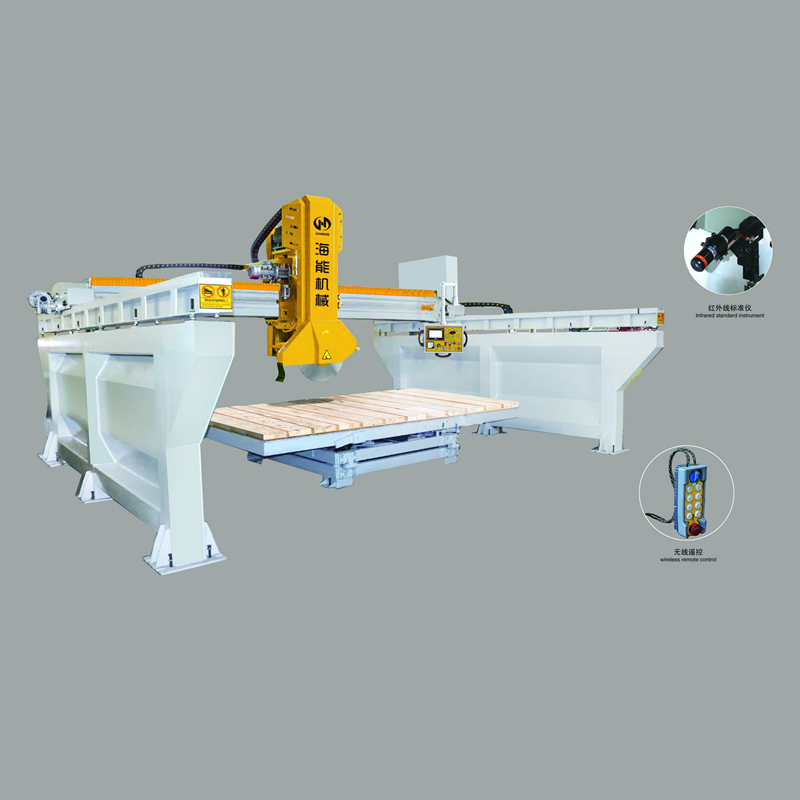

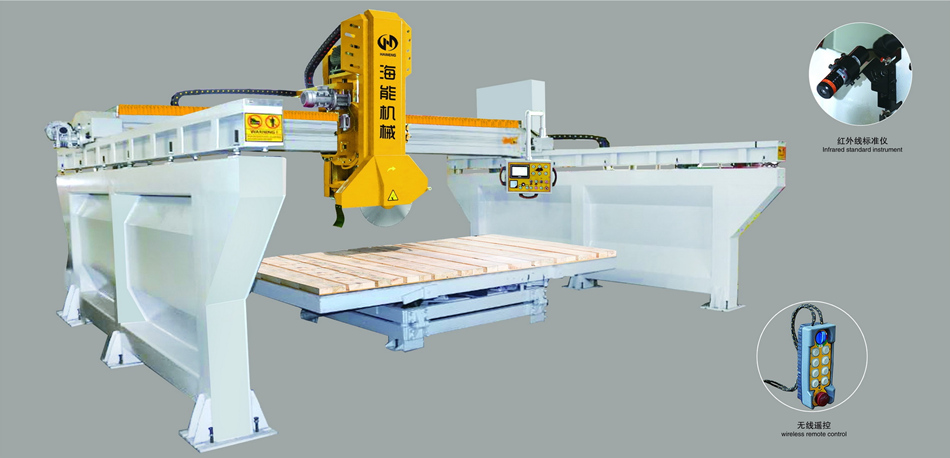

Infrared Rotary Bridge Cutter(Heavy Duty) adopts microcomputer control, touch-type operation interface, with wireless remote control, man-machine conversation flexible.

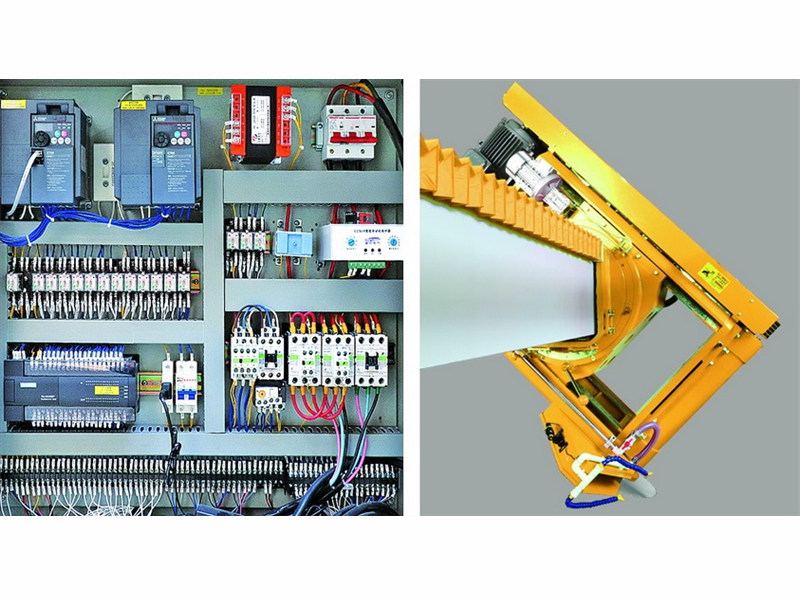

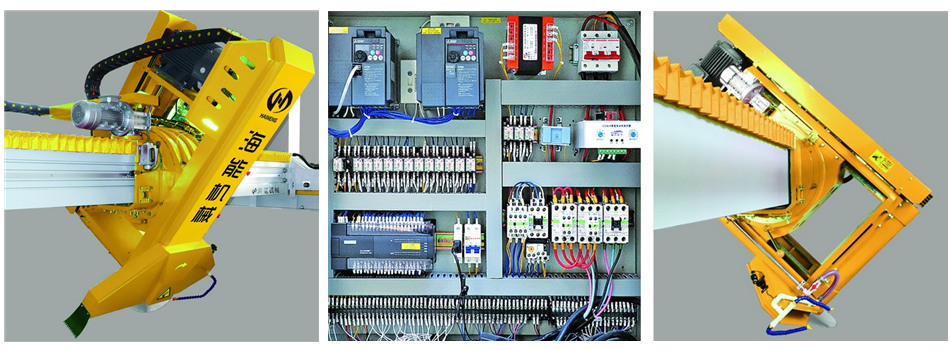

The main control components are all international famous brand components, the crossbeam adopts oil diffuse double V track, the transverse cutter adopts stepless speed regulation, the longitudinal sharding mechanism USES high precision magnetic counting, which ensure the working precision of the machine.

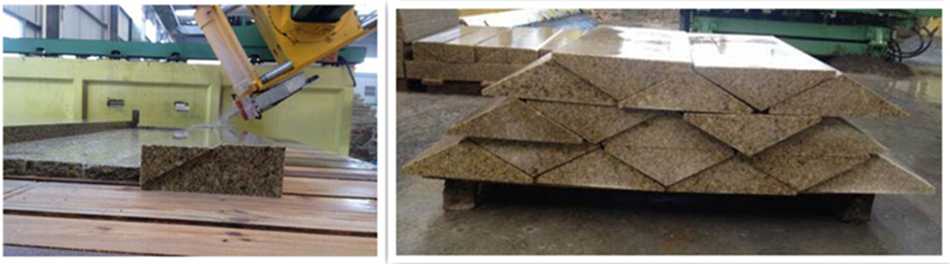

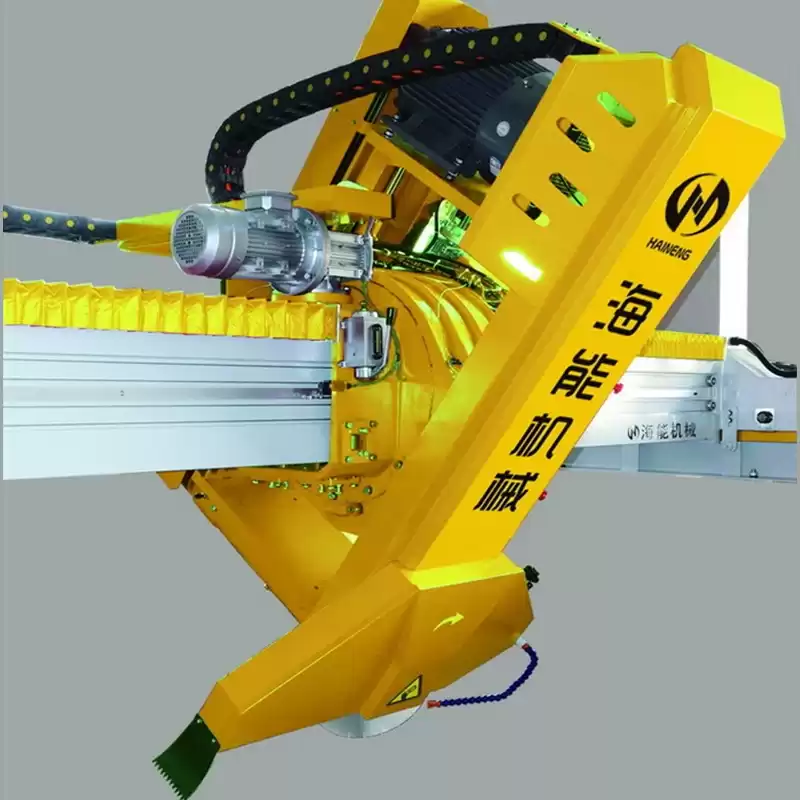

The saw blade automatically tilts 45 degrees, the table rotates 360 degrees every 45 degrees automatically positioning, can jump positioning, with any Angle position and car, can cut rectangle, octagonal, circular arc, circular, large Angle.
Technical Parameters
|
INFRARED ROTARY BRIDGE CUTTER (HEAVY DUTY)
|
|
Type
|
unit
|
HXQ-800A
|
HXQ-800B
|
|
Blade diameter
|
mm
|
Φ600-Φ800
|
Φ600-Φ800
|
|
Max. Working dimensions（L×W×H）
|
mm
|
3200×2000×280
|
3200×2000×280
|
|
Workbench size (L×W)
|
mm
|
3200×2000
|
3200×2000
|
|
Workbench turnover degree
|
n°
|
0°-85°
|
0°-85°
|
|
Workbench rotating degree
|
n°
|
0°-90°/360°
|
0°-90°/360°
|
|
Head tilting degree
|
n°
|
0°-45°
|
0°-45°
|
|
Main motor power
|
kw
|
22
|
22
|
|
Weight
|
kg
|
7500
|
9000
|
|
Dimension (L×W×H)
|
mm
|
6000x4800x3300
|
6000x4800x2800
|
