Ingenic T10 Smart Video Processor Best balance in Price Quality Performance Power

Products overview:

Integration XBurst, ultra-low power CPU technology, the Ingenic T10 smart video processor is the most advanced solution for the video device to develop intelligent analysis. T10 is one best balance design, it has high level imaging and encoding technology, up to 1.0GHz CPU with MXU2.0(SIMD128), and the very low running power. Integrating audio codec, 64MB DDR2, T10 also can make the hardware desgin easily and shorten the time to market.

Ingenic XBurst technology

The XBurst is best energy efficiency RISC core based on the MIPS Instruction Set Architecture(ISA). Based on the Ingenic unique ultra low power pipeline technology, the dynamic power consumption of XBurst core consumes only 0.09mW/MHz while the frequency operating at up to 1.0 GHz. And when it gets into sleep mode, the static power is only 0.2mW. The SIMD128 instruction set, which called MXU2.0, inplemented by XBurst engine, together with opencv opeator, it can make the real-time intelligentanalysis algorithm which is developed by Ingenic or deveolpers.

Surveillance level ISP engine

The ISP core supports high level imaging quality with up to 1280x960 resolution. Besides the 3A, lens shading correction, 2D denoise, tonning map technology, ISP engine supports muti-frame wide dynamic range (True WDR) and 3D denoise. Additionally, Ingenic ISP suports extreme low illumination, enhancement color/contrast technology, de-fog, etc to deliver optimum video quality.

Video processing engine

Ingenic's proprietary VPU (Video Processing Engine) uses a combination of custom hardware and a microcode engine to provide a low power, yet flexible and upgradeable solution to video encoding. This approach make the VPU consumes less than 25mw when H.264 960P@40fps streams to be encoded with Main profile. The VPU supports ROI, dynamic frame rate.

Key benefits of T10:

High performance with extreme low power consumption

With up to 1Ghz XBurst CPU and 128K Byte L2 cache, T10 can support various complex application basing on video and audio. But beyond imagination, it just consums less than 400mw including DDR2, which is packaged in the chip, when it is encoding the 960P@30fps video coming from the ISP, doing the analyzation to the video and running some apllication on the Linux.

Flexible and changeable intelligent analysis operator and algorithm

For the MXU2.0(SIMD128), which is a part of XBurst, runing at 1Ghz, it gives the T10 a super caculation power. Basing on that, T10 can supports flexible and changeable intelligentanalysis algorithm in real time, just like motion detecion, body detection, license plate recognition and so on. For easy to use, basic operators and tool chain is opened to all the users. People can choose different way to get the intelligent analysis algorithm, just like use Ingenic's or deveop by self with using Ingenic operators or develop operators by himself. All the operators and alogirthm can be constantly upgraded.

Dual voice communication and voice recognition

Without any other DSP's help, the advanced echo cancellation algorithm can be used in T10 to supply good effect on dual voic communication. For the high performance of CPU with MXU2.0, the T10 also can support the voice recognition applications, which is widely used in IOT, mobile, etc.

Products Features:

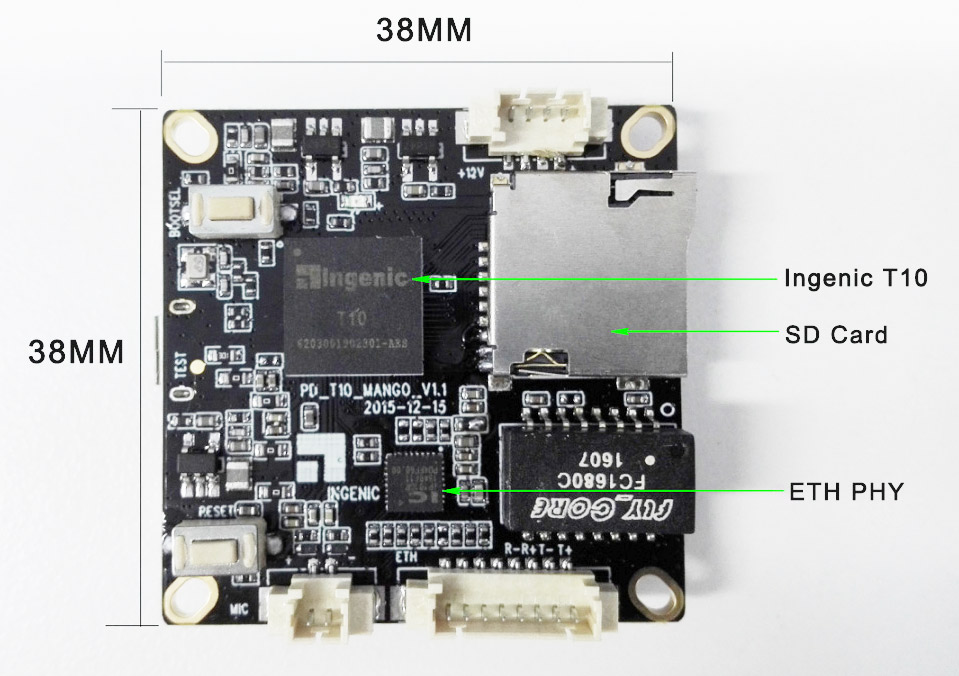

T10 Mango development board:

Board Features:
