Ingenic T30 Intelligent comprehensive H. 265 audio and video processor

Products Overview:

Integration XBurst, ultra-low power CPU technology, the Ingenic T30 is a smart video application processor targeting for video devices like mobile camera, security survey, video talking, video analysis and so on.It has high level ISP and H.265 encoding technology, maximum resolution up to 5MP, and CPU frequency up to 1.0GHz, with MXU2.0(SIMD128) instruction. T30 integrated audio codec and 64MB/128MB DDR2, can make hardware design easily and shorten the time to market.

Ingenic XBurst technology

The XBurst is best energy efficiency RISC core based on the MIPS Instruction Set Architecture(ISA). Based on the Ingenic unique ultra low power pipeline technology, the dynamic power consumption of XBurst core consumes only 0.09mW/MHz while the frequency operating at up to 1.0 GHz. And when it gets into sleep mode, the static power is only 0.2mW. The SIMD128 instruction set, which called MXU2.0, implemented by XBurst engine, together with openCV operator, it can run real-time intelligent analysis algorithm.

Surveillance level ISP engine

The ISP core supports high level imaging quality with up to 2688x2048 resolution. With the functions, such as 3A, 2D and 3D denoise, WDR HDR, lens shading and so on. Additionally, Ingenic ISP supports extreme low illumination, enhancement color/contrast technology, de-fog etc.

5MP Smart H.265 Video engine

Ingenic's proprietary Hilex Video Processing Engine (VPU) uses a combination of hardware and a microcode engine to provide a low power, yet flexible and upgradeable solution to video encoding.Together with the on chip v ideo accelerating engine and post processing unit, T30 delivers high video performance. The maximum resolution of 1560x1600 in the format of H.264 are supported in encoding. up to 50Mbit/s, 1080P@80fps. And support H265 main profile encoding up to 100Mbit/s, 3840x2160@30fps, maximum size up to 4096x4096 resolution.

Key benefits of T30:

High performance with extreme low power consumption

With up to 1.0Ghz XBurst CPU and 128K Byte L2 cache, T30 can support various complex application basing on video and audio. But beyond imagination, it just consumes less than 600mw including DDR2 when it encoding 1080P@30fps video coming from the ISP, meanwhile doing video analyzation and running applications on Linux.

Flexible and changeable intelligent analysis operator and algorithm

For the MXU2.0 (SIMD128), which is a part of XBurst, running at 1.0Ghz, it gives T30 very high computing performance. Base on that, T30 can supports flexible and changeable intelligent analysis algorithm in real time. Such as motion detection, body detection, license plate recognition and so on. For easy to use, basic operators and tool chain is opened to all the users. People can choose different way to get the intelligent analysis algorithm. All the openCV operators and algorithms can be constantly upgraded.

Low light noise reduction engine

For surveillance application, Ingenic develop a powerful low light noise reduction engine (NCU). With the benefit from NCU, T30 optimized the post ISP stream, enabling starlight night vision ability in further production.

Battery powered camera and doorbell

Beside low power ability, T30 also provide a unique fast boot and quick stream technology base on Linux OS. Together with low power WIFI modular, T30 can fulfill battery powered camera and doorbell product with 6 months battery life.

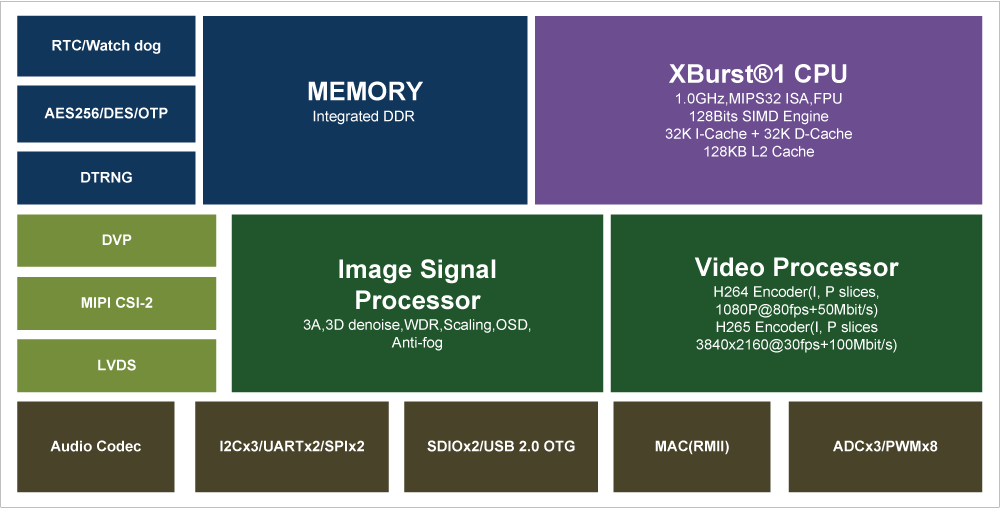

T30 Block Diagram:

Products Features:

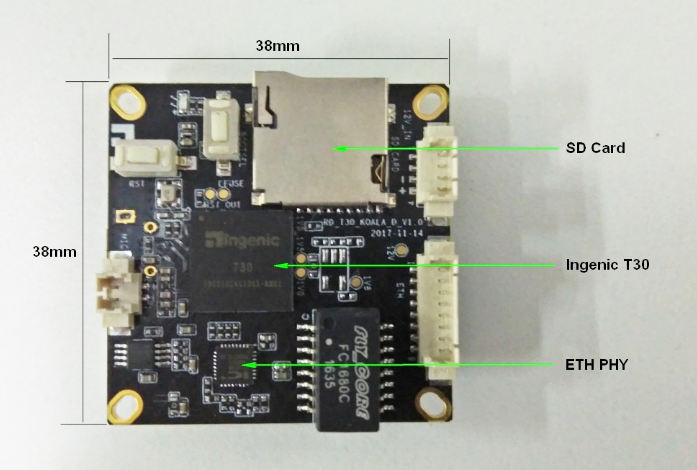

T30 KOALA development board:

Board Features:

Fuction	Description
Processor	T30，1GHZ，64KB L1 I/D-Cache，128KB L2 Cache，SIMD128
Memory	DDR2，Capacity-512Mb/1Gb
Storage	8/16 MByte SPI Nor Flash，128GB TF card
Sensor support	OV4689/OV2735(B)/SC2235/IMX323/JX-F22 ect.
Video	DVP/MIPI-CSI Camera
Audio	Support Recording the sound
Network	USB WIFI, Ethernet
Interface	UART，USB-OTG
Power	SC2135 Camera Sensor， Ethernet dual - channel code stream， The whole board power consumption is about 120mA@12V
