Comparison between Portable pico laser machine and Normal yag laser
Similarity
Both portable pico laser machine and normal yag laser machine use Q switched nd yag laser technology, with specific 1064nm wavelength (532nm optional), sending out strong power momently to shatter the pigment, so they can remove tattoo, pigment, nevus etc.
Differences
Portable pico laser machine outfits an extra treatment head (similar to the Honeycomb head of picosecond laser machine), which can output fraction array spots being applied to facial treatment, with good effect for skin whitening, skin rejuvenation, fine wrinkle etc. The whole treatment process is comfortable and no downtime.
Working Parameters
|
Machine type
|
Portable q switch pico laser machine
|
|
Laser wavelength
|
1064nm/picosecond laser tip(standard) 532nm(selective)
|
|
Laser Pulse energy
|
0~1400mJ
|
|
Laser Pulse width
|
~4ns
|
|
Laser Power
|
800w
|
|
Laser Recurrence rate
|
1-10Hz
|
|
Aiming Light
|
Red infrared light
|
|
Laser Lamp life time
|
More than 1,500,000 shots
|
|
Display
|
Touched Screen
|
|
Laser Cooling condition
|
Wind + water cooling
|
|
Laser Power source
|
220V/5A or 110V/10A
|
|
Size
|
54*58*41(package)
|
|
Net weight
|
20KG
|
Feature:

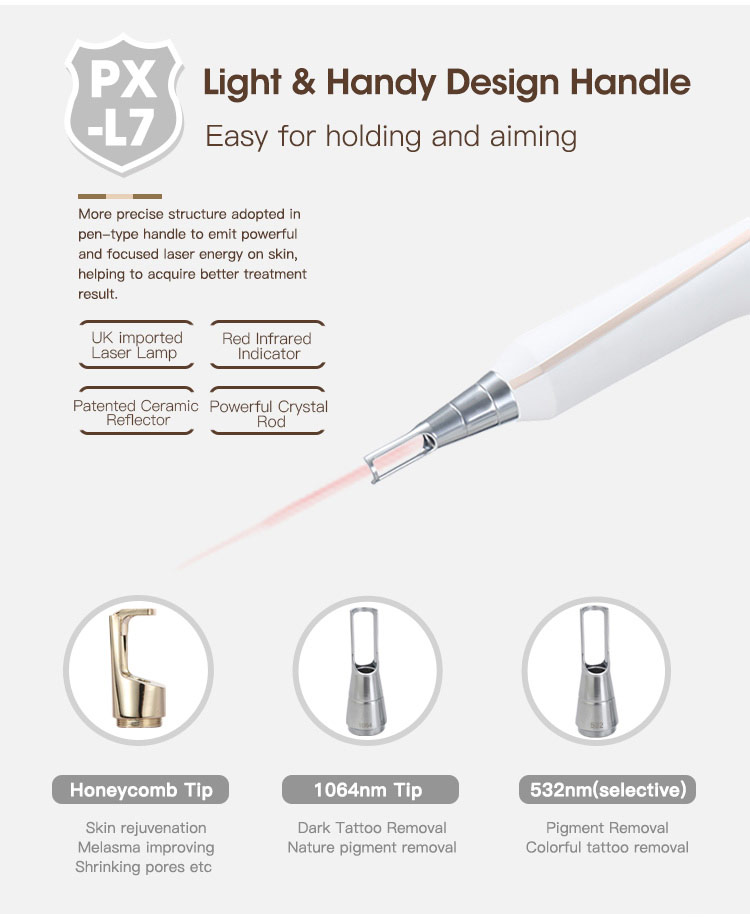

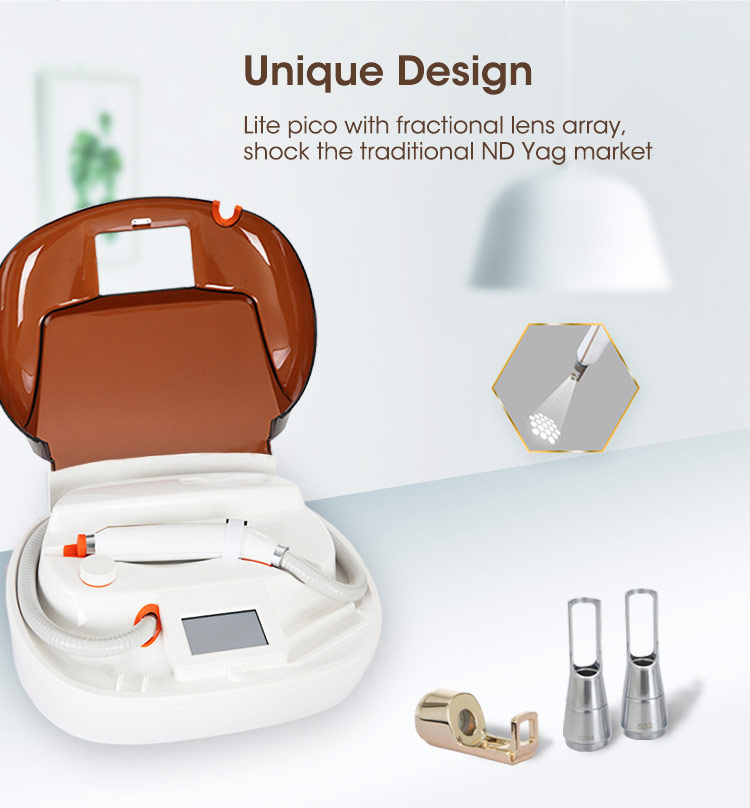

1. Innovative designed treatment head: Adopting high technology of picosecond laser honeycomb head to make a fraction array lens treatment tip, it can emit a hexagonal array spots each shot, giving fast treatment to full face.
2. Ceramic cavity reflector: OD-PL7 Portable pico laser machine’s handle use high quality ceramic cavity reflector, effectively protect handle from burning, reduce failure rate, increase life time.
3. 1.500.000 Valid shots: Using UK-imported laser lamp with large valid shots, longer working time and more treated customers, small investment but high return
4. Cost-effective: The size of ODI portable pico laser machine is much smaller than normal picosecond laser tattoo removal machine, so it can be moved lightly as well as save a large amount of shipping price.
5. Imported high quality spare parts: Japan imported fan, Taiwan imported water pump and automobile Red Copper Radiator are assembled into a powerful cooling system allow the machine to work long time continuously.
6. Self-test system: Sound self-test system has installed in ODI-PL7 portable pico laser machine, it can tell the machine’s problem intelligently, so you can solve the problem more easily.
Functions
1. Skin Rejuvenation, Skin Whitening, Fine wrinkle etc.
2. Tattoo removal, Eyebrow tattoo removal, Eyeline tattoo removal etc
3. Removing pigment, speckle, age spot etc
4. Get rid of nevus of Ota

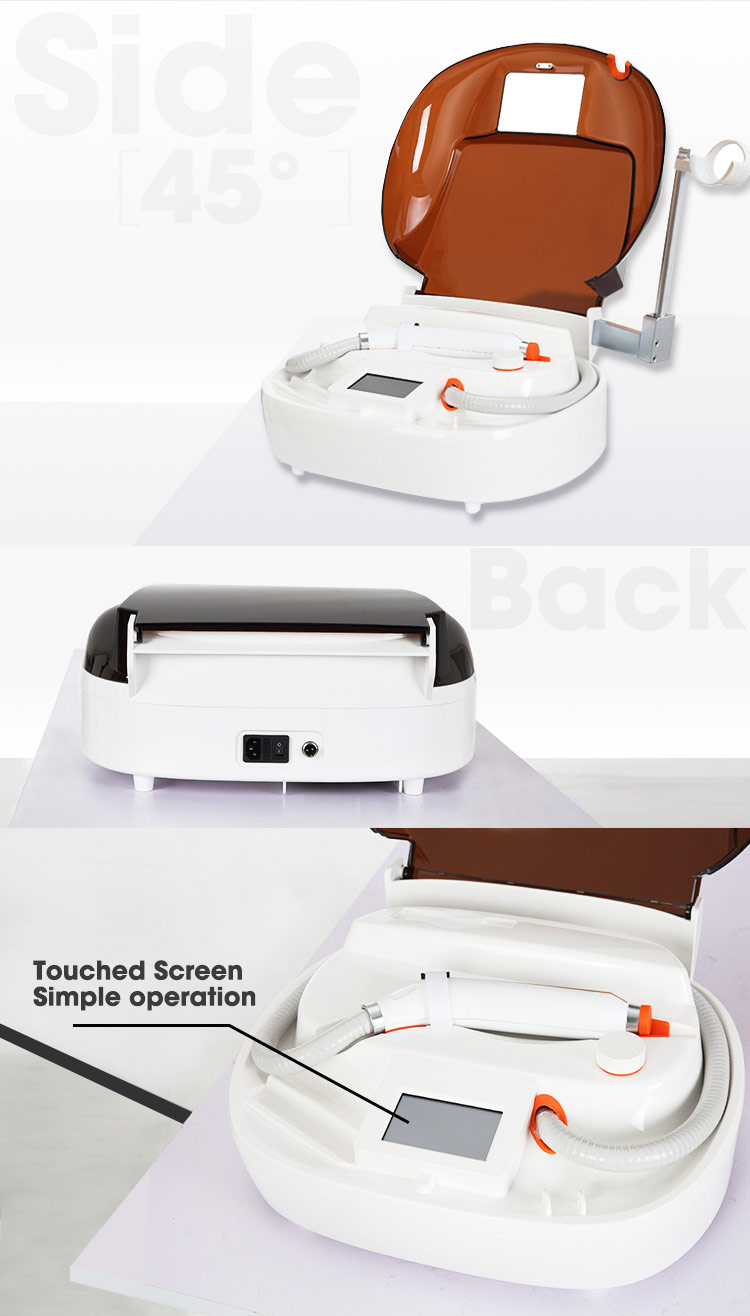

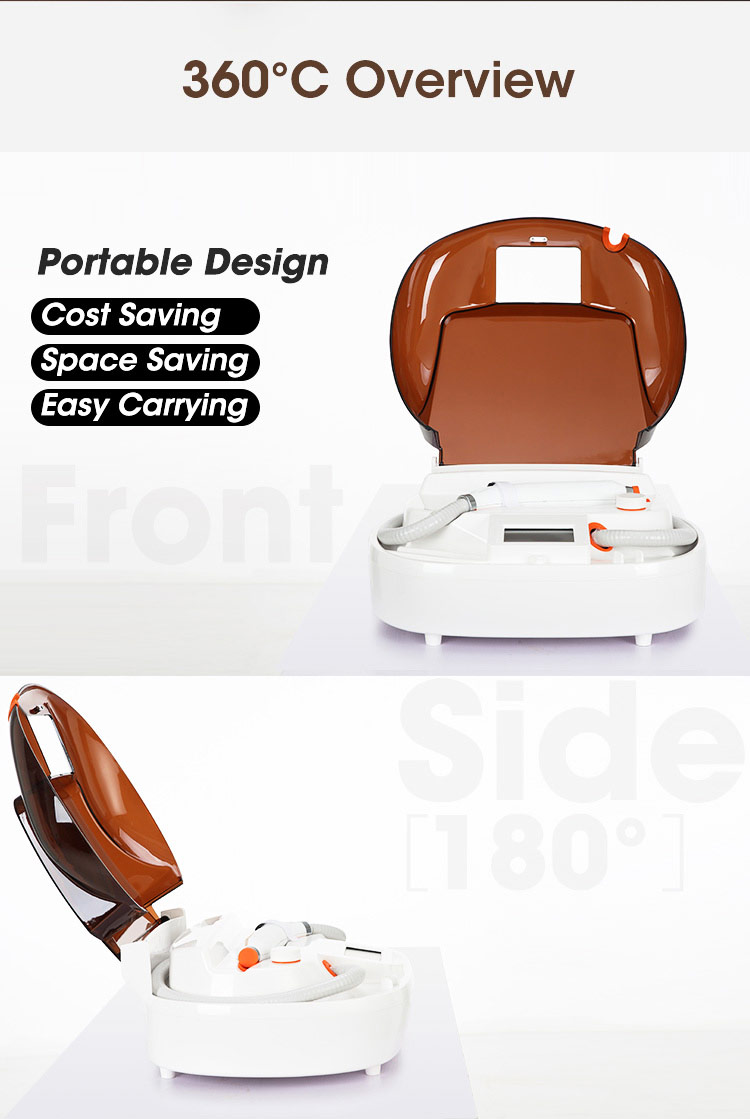

Machine Details of pico laser tattoo removal machine
