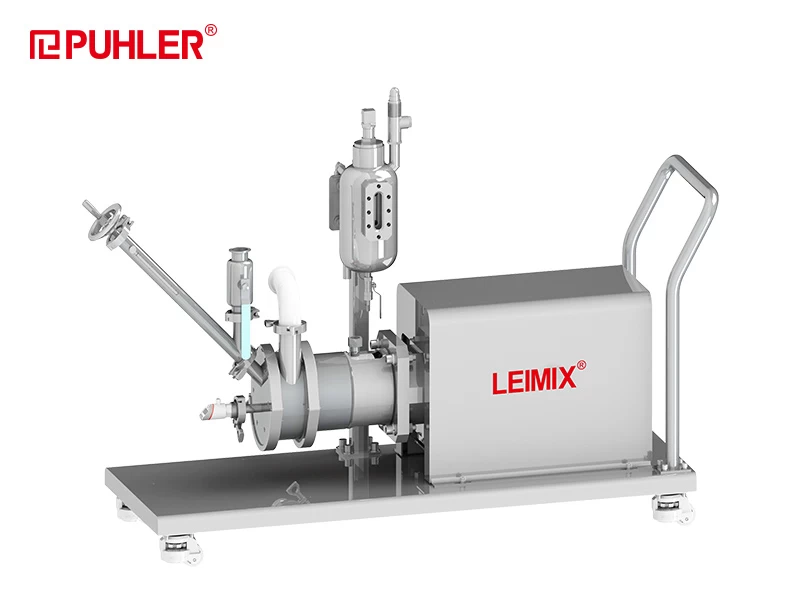

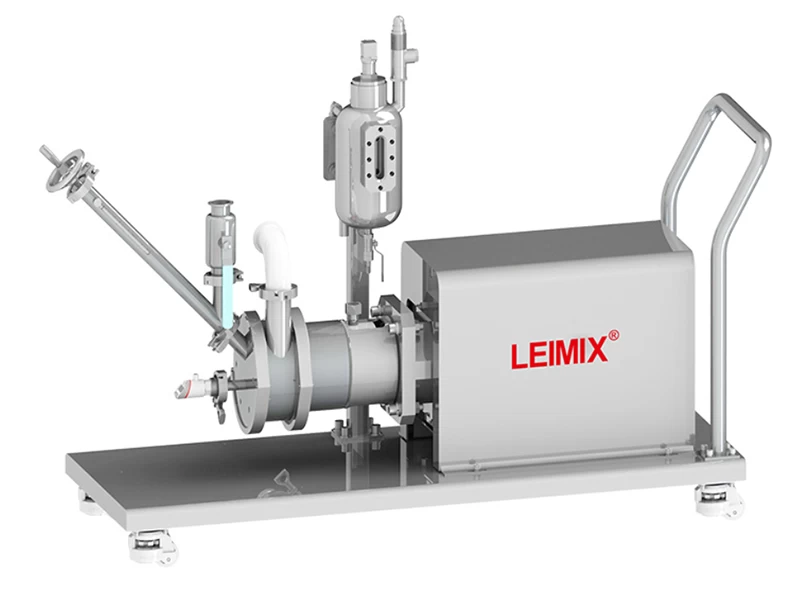

The TRL-C inline disperser produces vacuum through high frequency high-speed rotating of rotor, and uniformly absorbs powders from hopper or material bags to working chamber by negative pressure.Because of pressure differentia, we will get powder is uniformly distributed and wetting in fast flowing liquid and humidified instantly without anyagglomeration of any lump.
The InNovaZ TRL-C disperser is operated in circulation mode, whereby the powder can be fed from a bag via suction lance or bag feeding station. Alternatively, it can be fed via Big Bag or from a silo.
Here, the wetting process is not based on the classic rotor-stator principle, by which dispersion is achieved through high shear rates. The principle of the InNovaZ TRL-C is based on the introduction of the powder under negative pressure in a continuous, large liquid surface. Due to the pressure gradient between the supply and delivery sides, the liquid is pressed into the agglomerate structure such that, within a very short period of time, the individual particles of the solid are almost ideally wetted. Because of the low shear rates, the energy input is significantly lower than for conventional rotor-stator systems, which means that a smaller increase in the product temperature is achieved.
TECHNICAL PARAMETER:
|
Parameter
|
TRL-C 15
|
TRL-C 45
|
TRL-C 75
|
|
Motor power
|
15KW
|
45KW
|
75KW
|
|
Speed-no-load
|
3000-6000r/min
|
3000-6000r/min
|
3000-5000r/min
|
|
Flow range
|
0-20m³/h
|
0-50m³/h
|
0-85m³/h
|
|
Powder absorbing amount
|
0-30Kg/min
|
0-60Kg/min
|
0-100Kg/min
|
|
Hopper capacity
|
0.015m³
|
3-5m³
|
5-10m³
|
|
Liquid viscosity
|
<200mPa.s
|
<200mPa.s
|
<200mPa.s
|
|
Diameter of the liquid discharging pipe
|
2"
|
2.5"
|
3"
|
