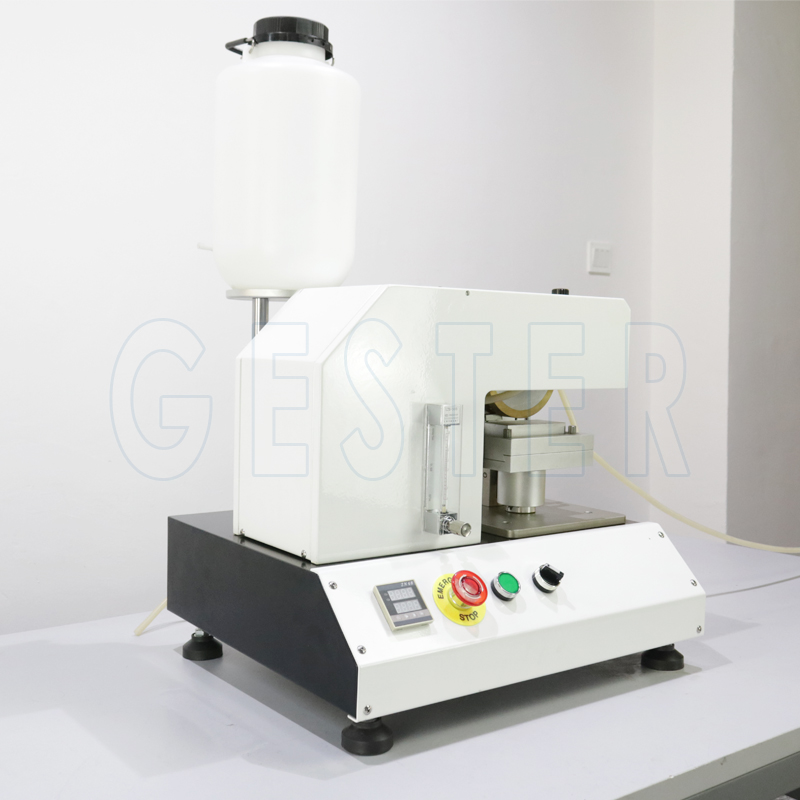

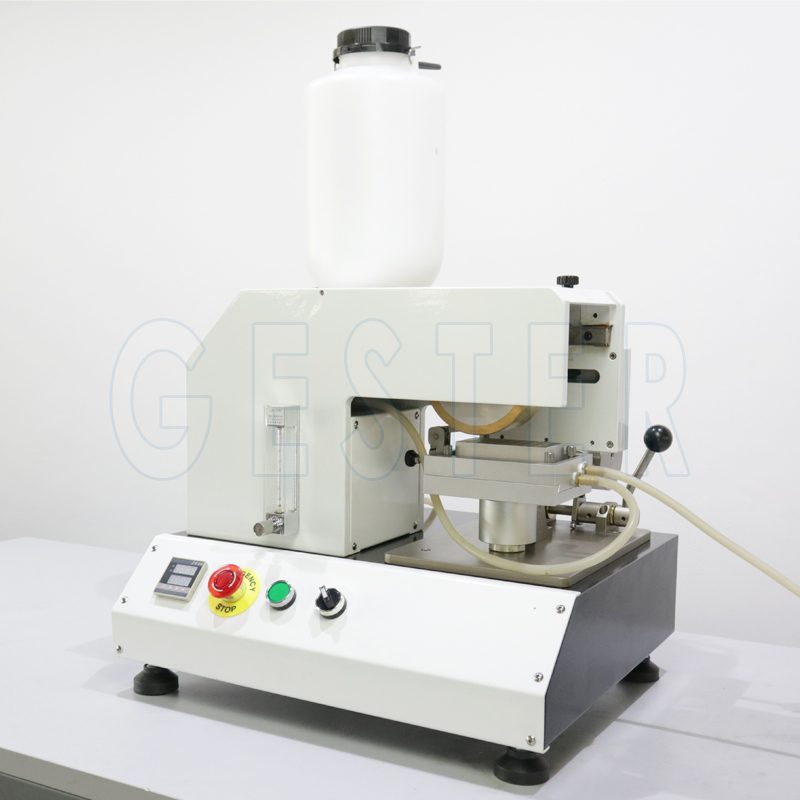

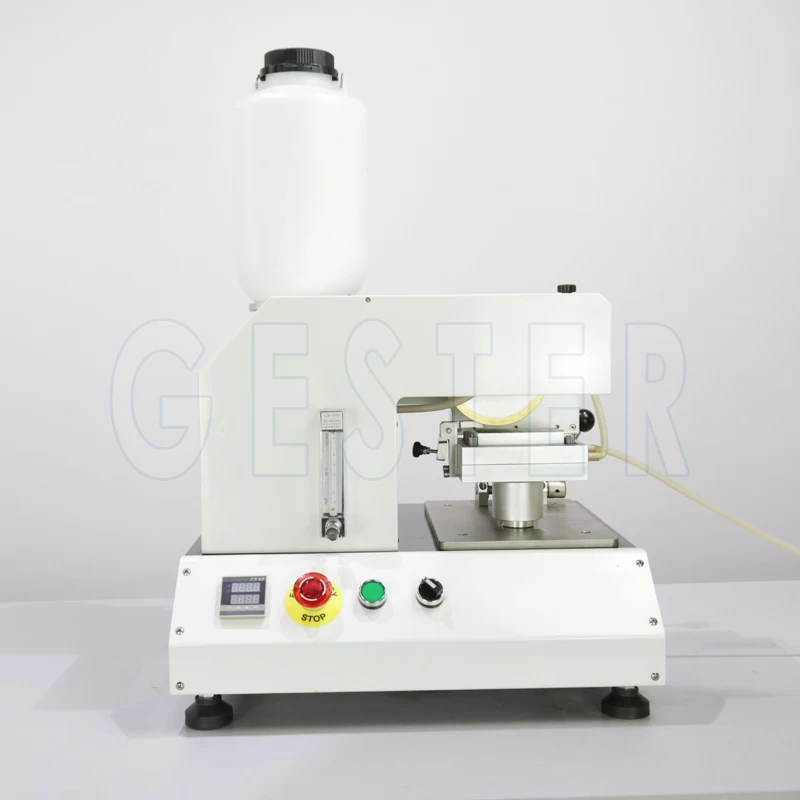

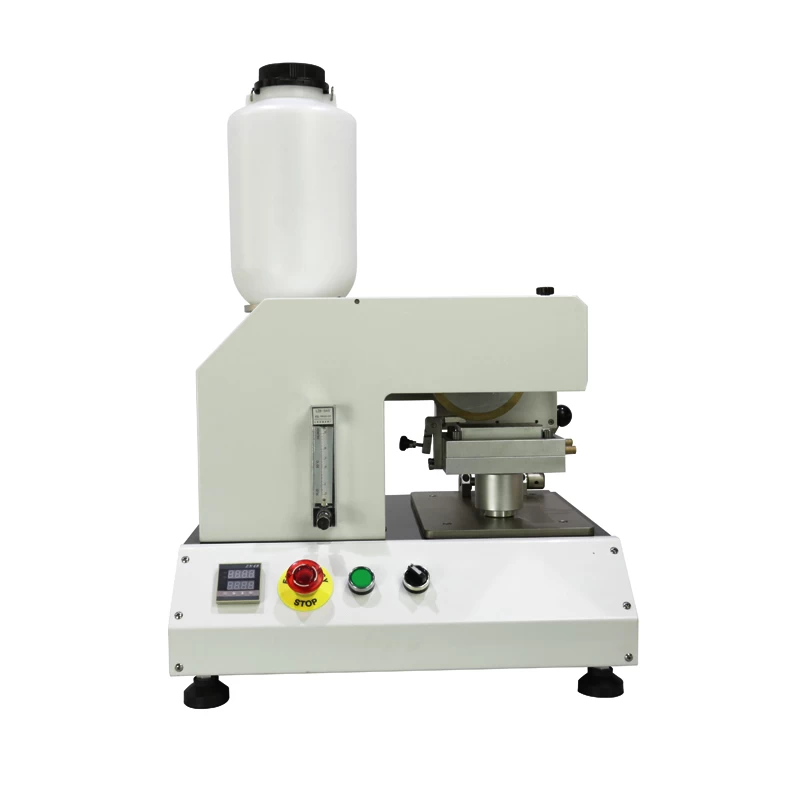

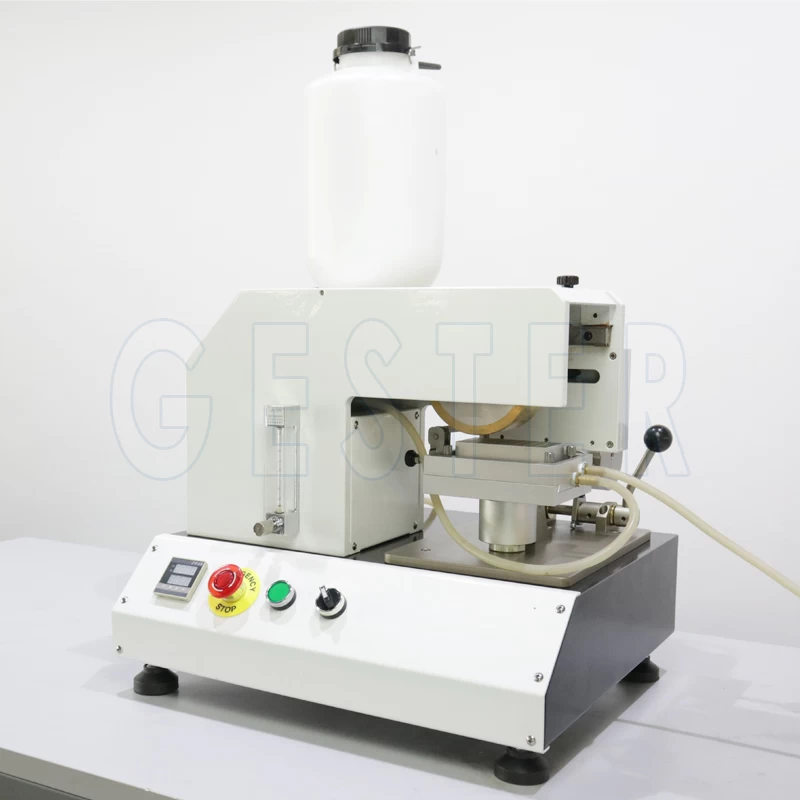

Insole / Insock Absorption and Desorption Tester GT-KC07
Product Introduction
|
Application:
This Insole / Insock Absorption And Desorption Tester is used to determine the water absorption and desorption of insole and insock for various shoes. The specimen, placed onto a wet base plate, is submitted to repeated flexing during under a given pressure (in the same manner as the insole of a shoe during working).
Standards:
EN ISO 20344 section 7.2
GB/T20991 section 7.2
EN ISO 20347 section 5.7.3
AS/NZS 2210.2 section 7.2
ISO 5404
EN 12746
|

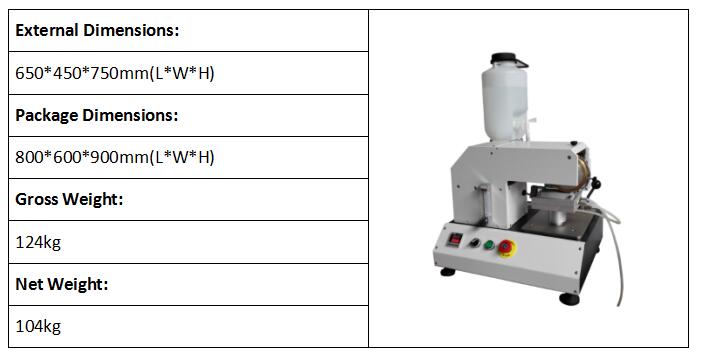

Dimensions
Key Specifications
Model
|
GT-KC07A
|
GT-KC07B
|

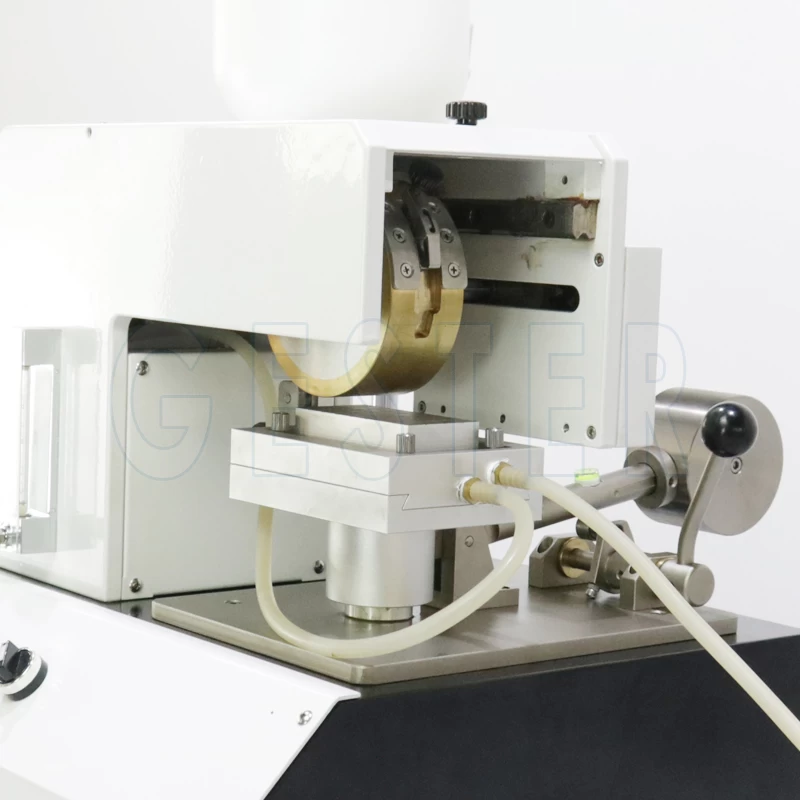

Brass Roller
|
Diameter (120 + 1) mm , Width(50 + 1) mm
|
Speed
|
20 ± 1 cycles / min
|
Stroke
|
50 ± 2 mm
|
100 ± 2 mm
|
Press Load
|
80 ± 5N
|
Water Flow Rate
|
7.5 ± 2.5 ml/min
|
Sample Size
|
110±11 ×40±1mm
|
100±1 ×40±1mm
|
Timer
|
0~999h59m59s
|
Power Supply
|
1∮AC 220V 50/60HZ
|
Dimensions
|
65 x 45 x 75 cm
|
Weight
|
104kg
|
Standards
|
EN ISO 20344 section 7.2 GB/T20991 section 7.2
EN ISO20347 section 5.7.3 AS/NZS 2210.2 section 7.2
EN 12746
|
ISO5404
|
