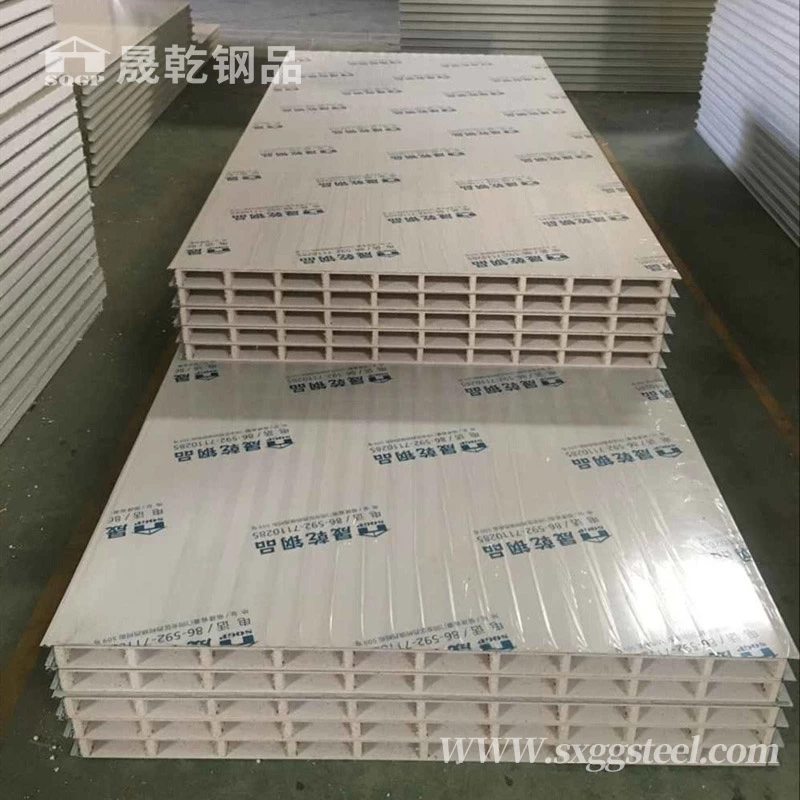

Insulated Hollow Glass Magnesium Sandwich Panel

Hollow glass magnesium(MGO) sandwich panel high level requirement in fire proofing thermal insulation.



Application:

Hollow sandwich panels are generally used as insulation partitions and have good thermal insulation effects. At the same time, the glass magnesium board has the effect of fire retarding. It is widely use in worshop, temporary office/buiding, gymansia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.

Features:

1. Fire proof: 67minutes

2. Weather proof

3. High density

4. High temperature withstanding capacity more than 1000℃

Parameters

Product name

Hollow Glass Magnesium Oxide sandwich panel

Thickness

upper layer

0.4mm-0.8mm

core material

50mm-150mm

bottom layer

0.4mm-0.8mm

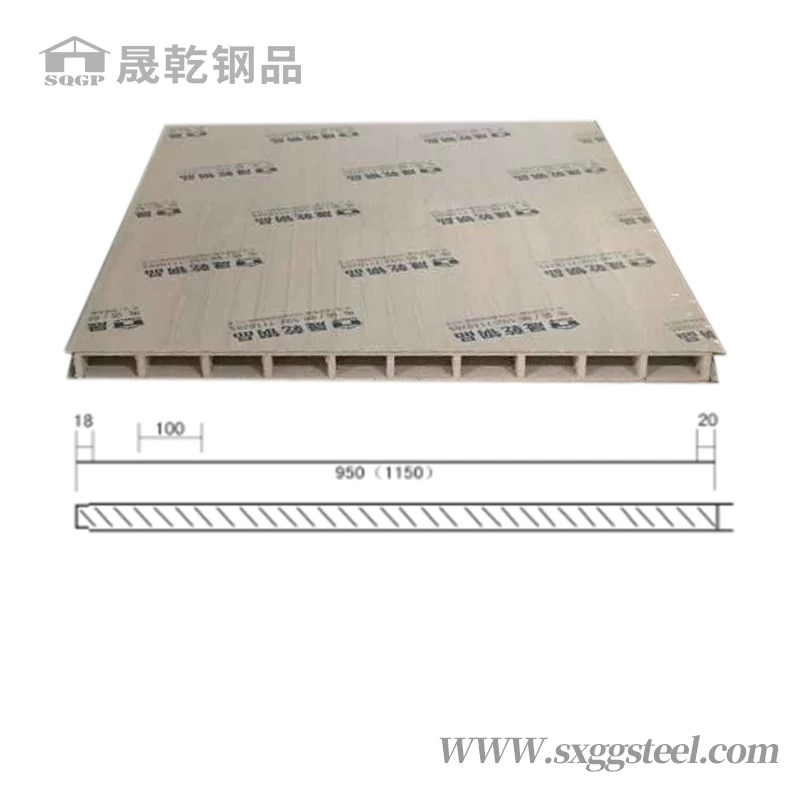

Effective Width

standard

950mm, 1150mm

other

can be customized

Length

can be customized,less than 11.85m

Density

24kg/m3

Weight

up to model

Color

 RAL Standard

Temp tolerance

1500℃

Hydrophobic rate

≥97.5%

Fire resistance level

A (>70 minutes)

Surface profile

flat,corrugated,big rib, small wave

Compression bearing

22Mpa(GB/T7019-1997)

The shrinking rate when heated

1.0%(GA160-1997)

The rate of deformation when pick up the moisture

0.26%(GA160-1997)

Material

upper layer

color steel plate or stainless steel sheet (also can be PPGI, galvanized sheet, condominium zinc plate,printing steel plate, alumina foil paper,PVC and Plywood)

inner layer

Magnesium oxide,magnesium chlo-ride,saw dust,perlite

bottom layer

color steel plate or stainless steel sheet (also can be PPGI, galvanized sheet, aluminum zinc plate, printing steel plate, aluminum foil paper,PVC and Plywood)

Parts

Eccentric hook  used for  connection of panel

Film covering for protecting the surface layer

Connection method

Capped for roof panel,Tongue and groove for wall panel

Heat transfer coefficient

≤0.041 W/M*K

Characteristics

Sound insulation≥44db(GBJ121-88)

Superior heat insulation, waterproof and damp resistant

Attractive appearance.

High density, bending resistance, can be sawing,nailing and sticking.

Eco-friendly

Freezing and cracking proof.

Weather proof

light weight,very easy to insulation and dismantling

safe,100% does not include the asbestos,formaldehyde,and benzene

Lifespan

>20 years

Usage

Widely used in: Indoor and outdoor boards for purifying factory building, combined house and indoor partition with high level requirement in fire proofing and thermal insulation. E.g.Interior decoration of civil buildings for medicine, electronics, biology research, foodstuff, beverage etc.
