Insulated Polyurethane Sandwich Panel For Metal Wall Cladding System

PU/PUR/PIR sandwich composite panel is a commonly used composite building material. The steel plates as outer skins offer this composite panel great strength, and the PU insulation material provides it with great thermal insulation, which is the best solution to energy conservation of buildings.



Insulated Polyurethane Sandwich Panel For Metal Wall Cladding System

Introductio

Product Introduction:

As a green, environmental-friendly, light and high-strength new building cladding material, in order to improve the thermal insulation effect of buildings and develop low-carbon economy, Wiskind has actively responded to the national requirements on energy conservation and emission reduction, introduced advanced Italian PUMA continuous production lines and production technologies in Europe, realized professional and large-scale production, and launched the PU/PUR/PIR sandwich composite panels with European quality and green environmental protection.


PU/PUR/PIR Specification:

Material Category: Organic insulation material

Combustion performance: B1 or B2

Heat Conductivity Coefficient: ≤0.023/≤0.02

Oxygen Index: ≤30%

Density: 40-43 / 40-50kg/m³

Temperature Endurance: 40-43 / 40-50℃

Water Absorption: ≤2%

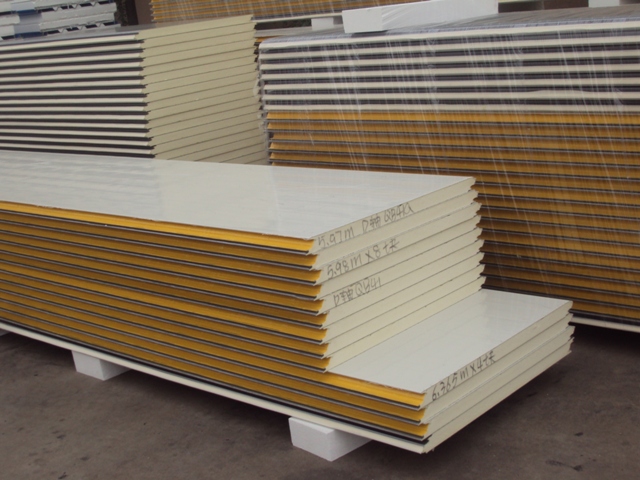

Sandwich Panel For Metal Wall Cladding


Product Parameters:

Product Name

Insulated Polyurethane Sandwich Panel For Metal Wall Cladding System

Brand of steel plates

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates

0.4mm-0.8mm.

Thickness of core

50mm/75mm/100mm.

Density of core

40-50kg/m³

Effective width

1000mm

Panel Length

According to customers’ request


Performance Description:

1.High efficiency and energy conservation:the excellent thermal insulation performance reduces building energy consumption and reduces costs on air-conditioning equipment.

2.Beautiful facade:the hidden nail connection guarantees hidden screws and more beautiful building walls.

3.Solid and durable:high-strength panels and excellent mechanical properties of walls.

4.Patented design:innovative double-support plug interface design ensures that walls have stronger wind pressure-resistant capacity and are solider.

5.Multiple choices:There are panels of multiple functions, types and colors for your choice. The quality and beautiful products can meet more personalized requirements and higher requirements on comfort in the building industry.

6.European Technology+Chinese Wisdom offer safer products.

7.The products have passed the tests conducted by national authoritative organizations and are used more confidently.
