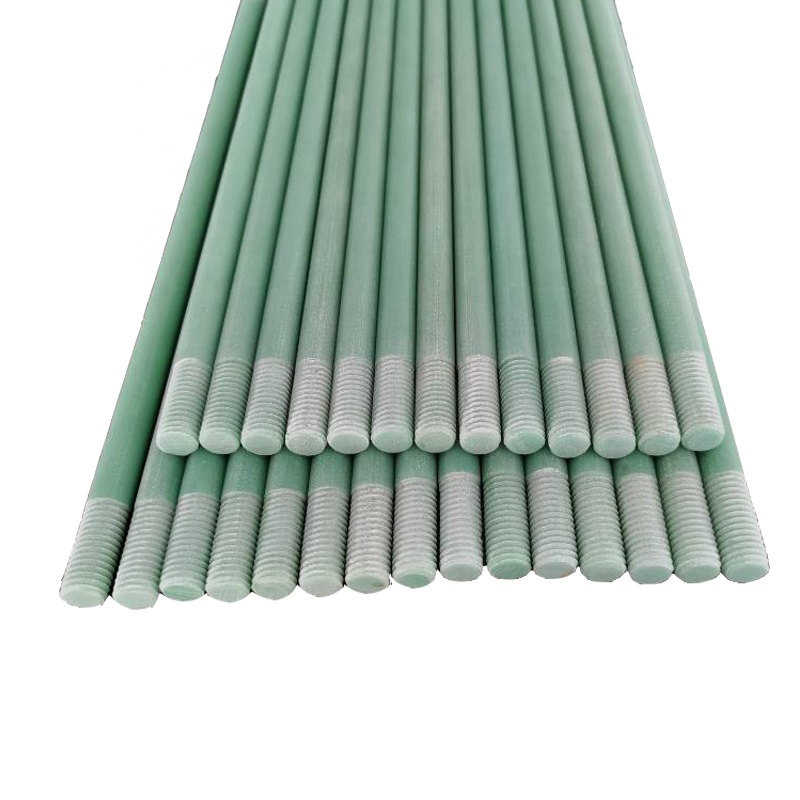

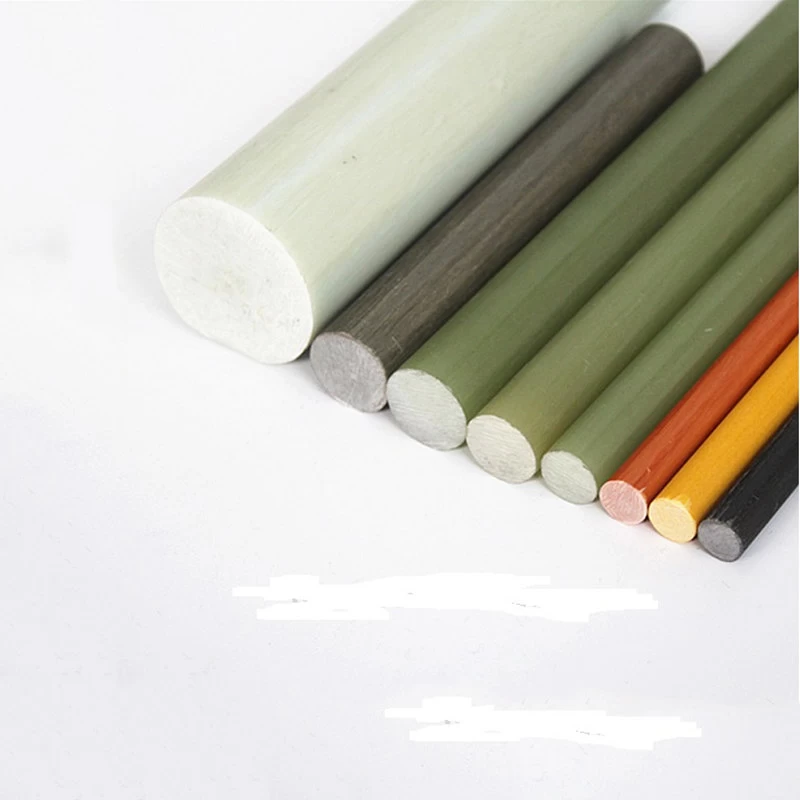

Custom G10 FR4 G11 Epoxy Fiberglass Rods Bars Machined:
Epoxy Glass Fabric Laminated Rod is made from glass cloth fabric impregnated with epoxy resin, then heated into prepreg and rolling into the rod shape, finally put into the different diameters molds, under high temperature and pressure to cure into the rigid laminated rods.
Epoxy fiberglass rods have extremely high mechanical strength and dimensional stability over temperature, low water absorption, and superior electrical properties when both wet and dry. These electrical properties make it the most widely used in the electrical field. FR4 G-10’s properties are exhibited over a wide range of temperatures and humidities. G-10/FR-4 is available in sheet, rod, and tube for all applications.
Glass Epoxy Laminate - G10 is composed of a woven glass fabric combined with a halogen-free epoxy resin system. The product also offers superior physical properties and excellent electrical characteristics that are maintained in high-humidity conditions. In addition, it is not flame retardant and meets NEMA G-10 requirements.FR-4 is a fire retardant grade of G-10.Also FR-4 is a less expensive option than G10 while also being flame retardant.

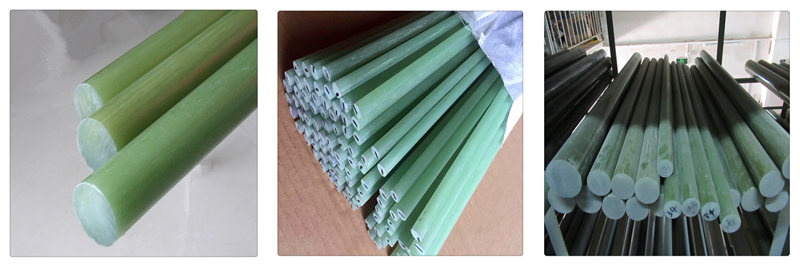

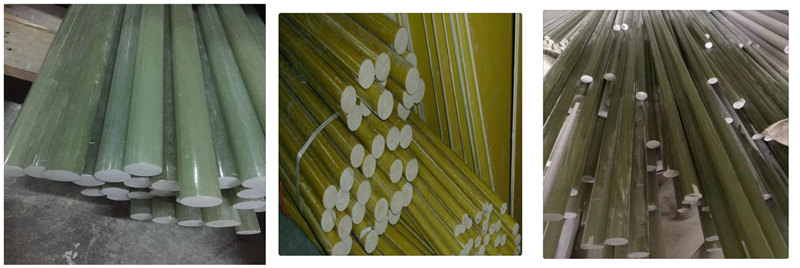

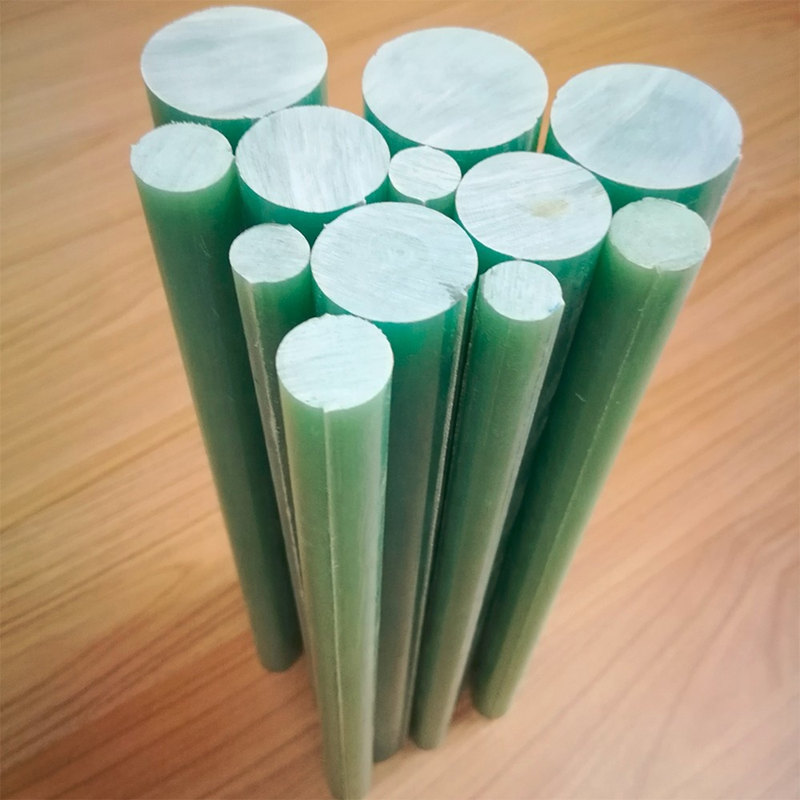

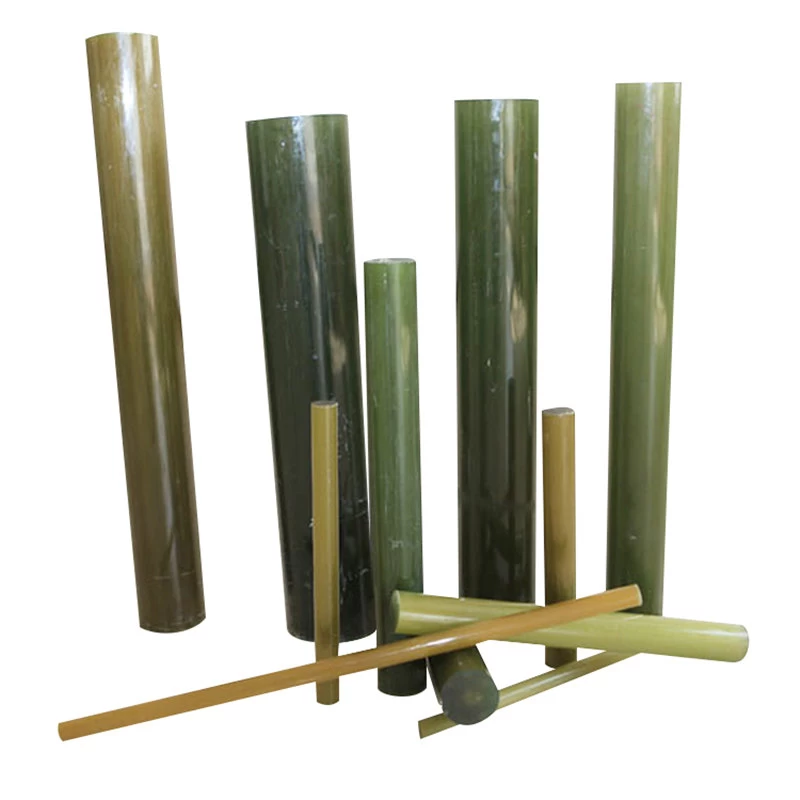

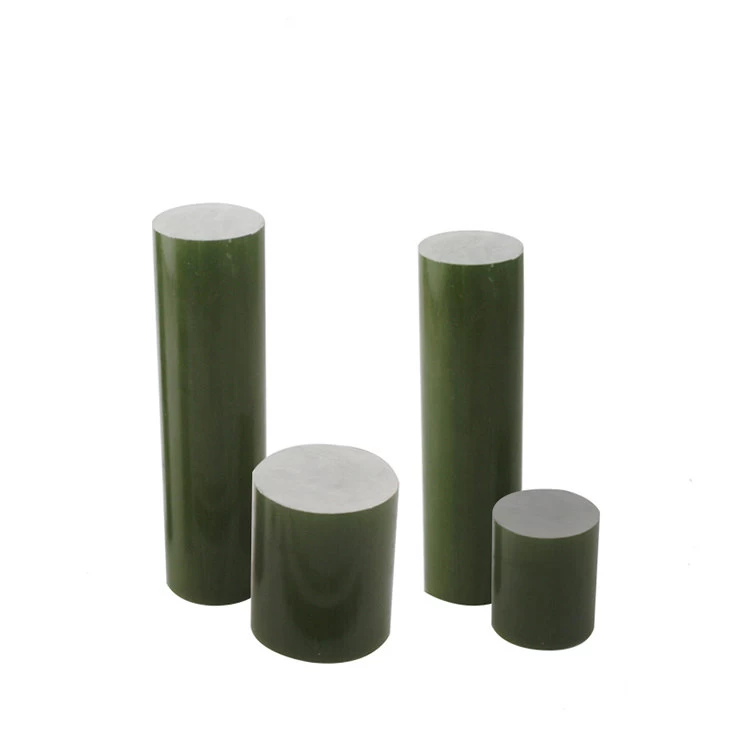

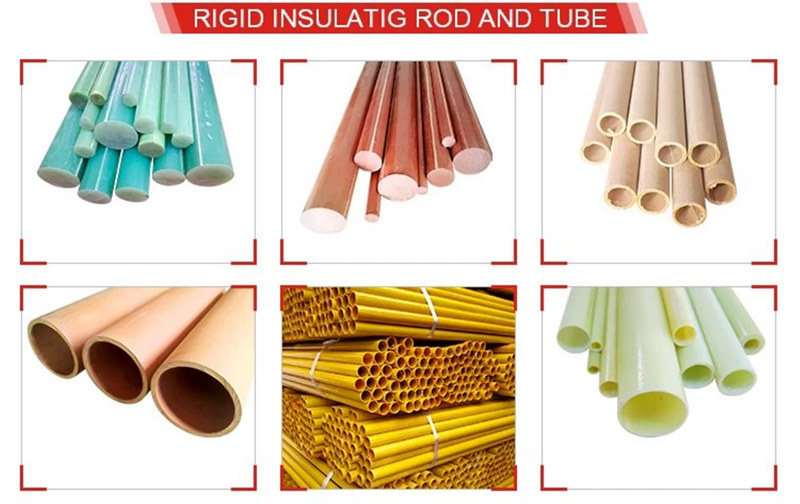

Products Show:
Typical Properties of Epoxy Fiberglass Laminated:
|
Physical
|
Astm Test Method
|
G-10/FR-4
|
G-11
|
|
Density (lb/in^3)
|
D792
|
0.065
|
0.065
|
|
Specific Gravity
|
D792
|
1.8
|
1.8
|
|
Water Absorption @ 24 hours (%)
|
D570
|
0.1
|
0.2
|
|
|
|
|
|
|
Mechanical
|
|
|
|
|
Tensile Strength (PSI) Lengthwise, Crosswise
|
D638
|
45,000 and 38,000
|
43,000 and 37,000
|
|
Flexural Strength (PSI) Lengthwise, Crosswise
|
D790
|
75,000 and 65,000
|
80,000 and 70,000
|
|
Compressive Strength (PSI)
|
D695
|
65,000
|
63,000
|
|
Flexural Modulus (KPSI) Lengthwise, Crosswise
|
D790
|
2,700 and 2,400
|
3,000 and 2,700
|
|
Izod Impact (Notched), ft-lb/in Lengthwise, Crosswise
|
D256
|
14.0 and 12.0
|
12.0 and 9.0
|
|
Rockwell Hardness
|
D785
|
M110
|
M112
|
|
Thermal
|
|
|
|
|
Coefficient of Thermal Expansion,
10^-5/°F Lengthwise, Crosswise
|
D696
|
.55 and .66
|
.72 and .83
|
|
Continous Service Temp (Operating), °F
|
-
|
284
|
329
|
|
Thermal Conductivity, BTU-in/hr-ft² °F
|
C177
|
2
|
2
|
|
Flammability Rating
|
UL94
|
VO
|
HB
|
|
Electrical
|
|
|
|
|
Dielectric Strength, Short Term,
(Volts/Mil) @ .125″ Thick
|
D149
|
800
|
900
|
|
Arc Resistance (sec)
|
D495
|
100
|
120
|
|
Dielectric Constant at 1 MHz
|
D150
|
5
|
4.5
|
|
Dissipation Factor at 1 MHz
|
D150
|
0.019
|
0.02
|
G10/FR4/G11 Epoxy Resin Fiberglass Rod Features:
Dimensional stability
Mechanical strength
Good insulator
Low water absorption
Stable properties over wide range of temperatures and humidities
Superior electrical properties in wet and dry conditions
Fire retardant (FR-4)

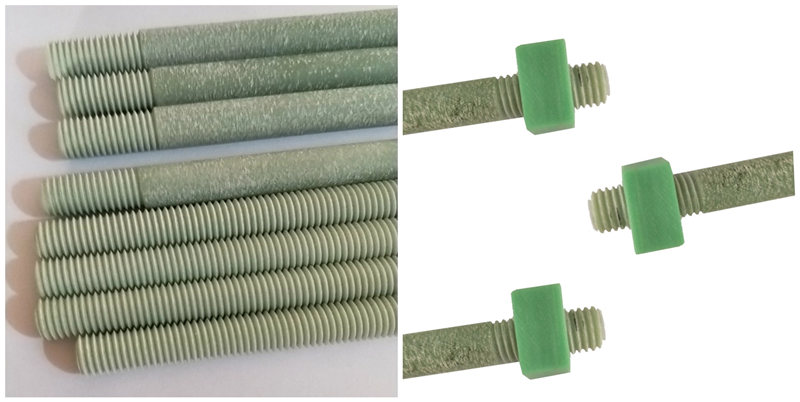

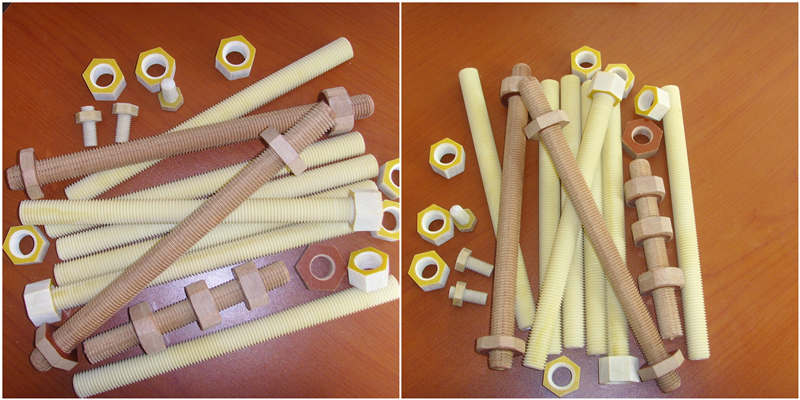

Glass Epoxy Rods (G10/FR4) Machining:
JY machinery offers professional electrical insulation solution and ensures that we understand your applications and your requirements so that we will provide you with high quality, tight tolerance products that meet your specifications. Offering a variety of glass epoxy laminate machining and fabrication services, we will work with you to select the most effective and efficient manufacturing process for your Epoxy rods machined part and manufacture the part to your exact specifications.
Our state-of-the-art facility is equipped with over 20 pieces of equipment to provide custom plastic turning, milling, routing and sawing services. We specialize in manufacturing large parts and our equipment is designed to process parts up to 148’ or longer, with tolerances to +/- .001, depending on the material. Call JY Machinery today for all of your G10/FR-4 rods machining needs.
